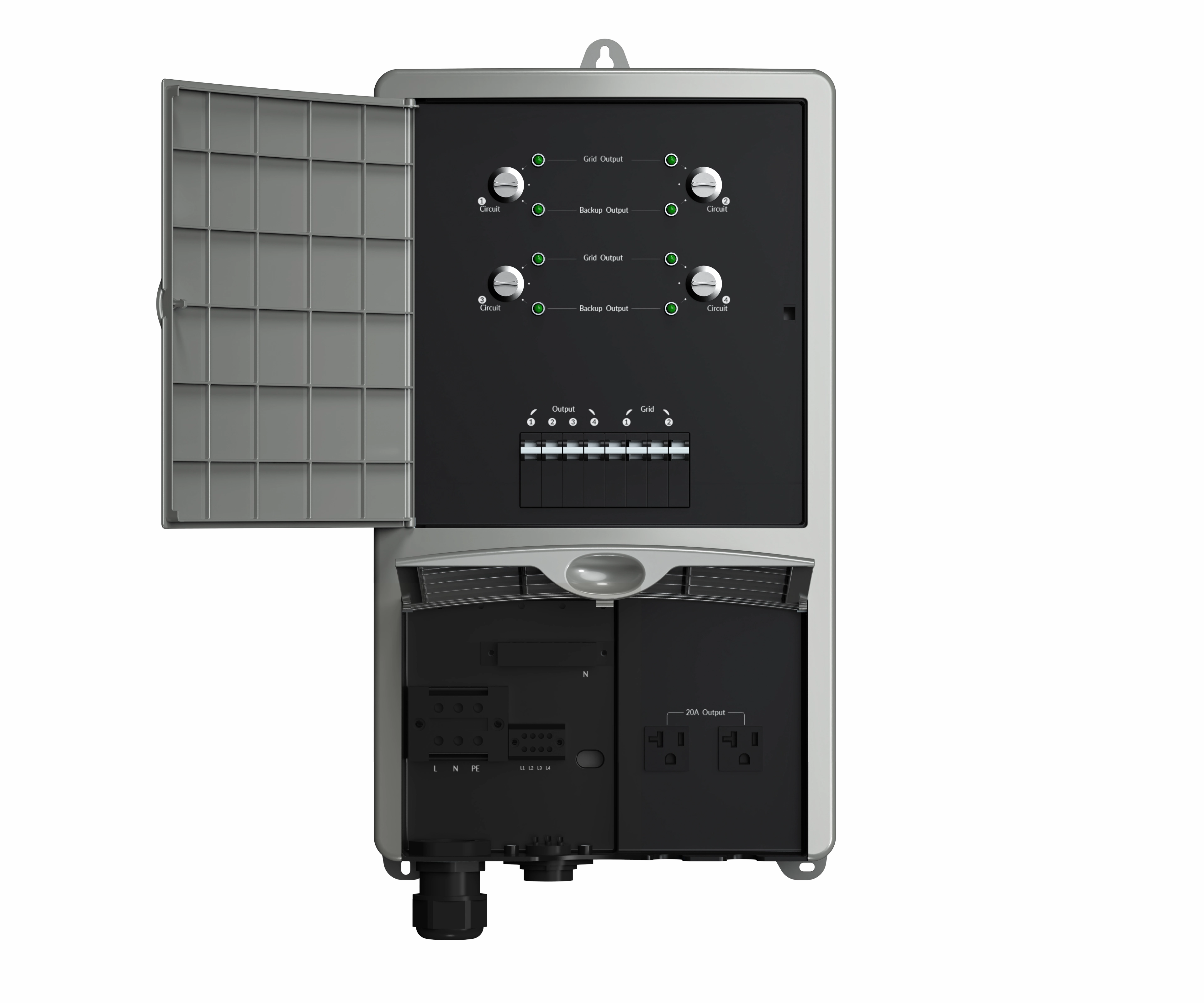

MangoPower mPanel Pro

Backup power for essential home appliances: When the grid goes down. the mPanel Pro instantly switches the essential loads power supply from grid to battery.

This product can only be connected with Mango Power E Power Station.

What's in the box:

1x Mango Power mPanel Pro
1x User Manual
1x Warranty Card

Specifications:

Size: 21.73x11.02x3.86 inches (552x280x98 mm)
Weight: 10.36 Ibs (4.70 kg)
Compatibility: Works with MANGO POWER Union and MANGO POWER E
Output voltage: 120V/240V
System frequency: 50Hz/60Hz
Control circuits: 1
Output port: 4x15A
Max backup power: 6000W
Main function: Switch both DoublePhase grid and DoublePhase backup
IP Level: IP21
Working temperature: -4F~140F (-20~60)
Installation: Wall mount. to be installed by a licensed electrician
Warranty: 1 year
