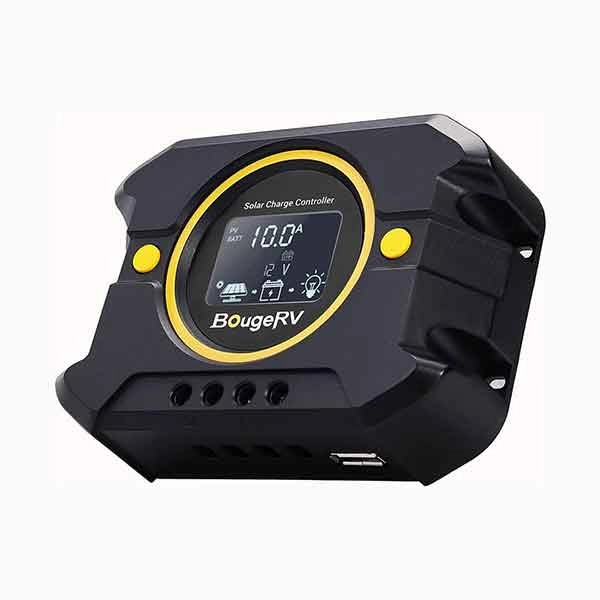

BougeRV 10Amp PWM Solar Charge Controller

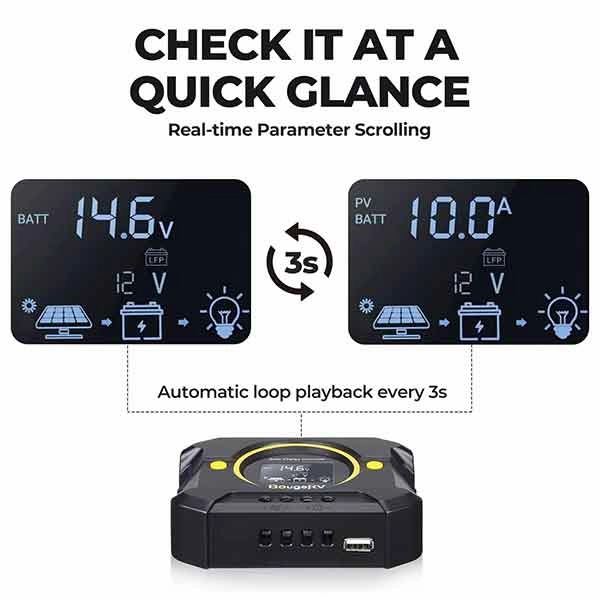

A BougeRV assurance for safety and optimal performance of your solar system. the 10AMP PWM Solar Charge Controller. It isoptimized to manage and regulate the flow of power from your panels to the battery with a real-time parameter scrolling in place.Engineered for safe and efficient charging the PWM Solar Charge Controller guarantees long battery life.
Specifications:
System Voltage: 12V/24V
Maximum PV Input Voltage: <55V

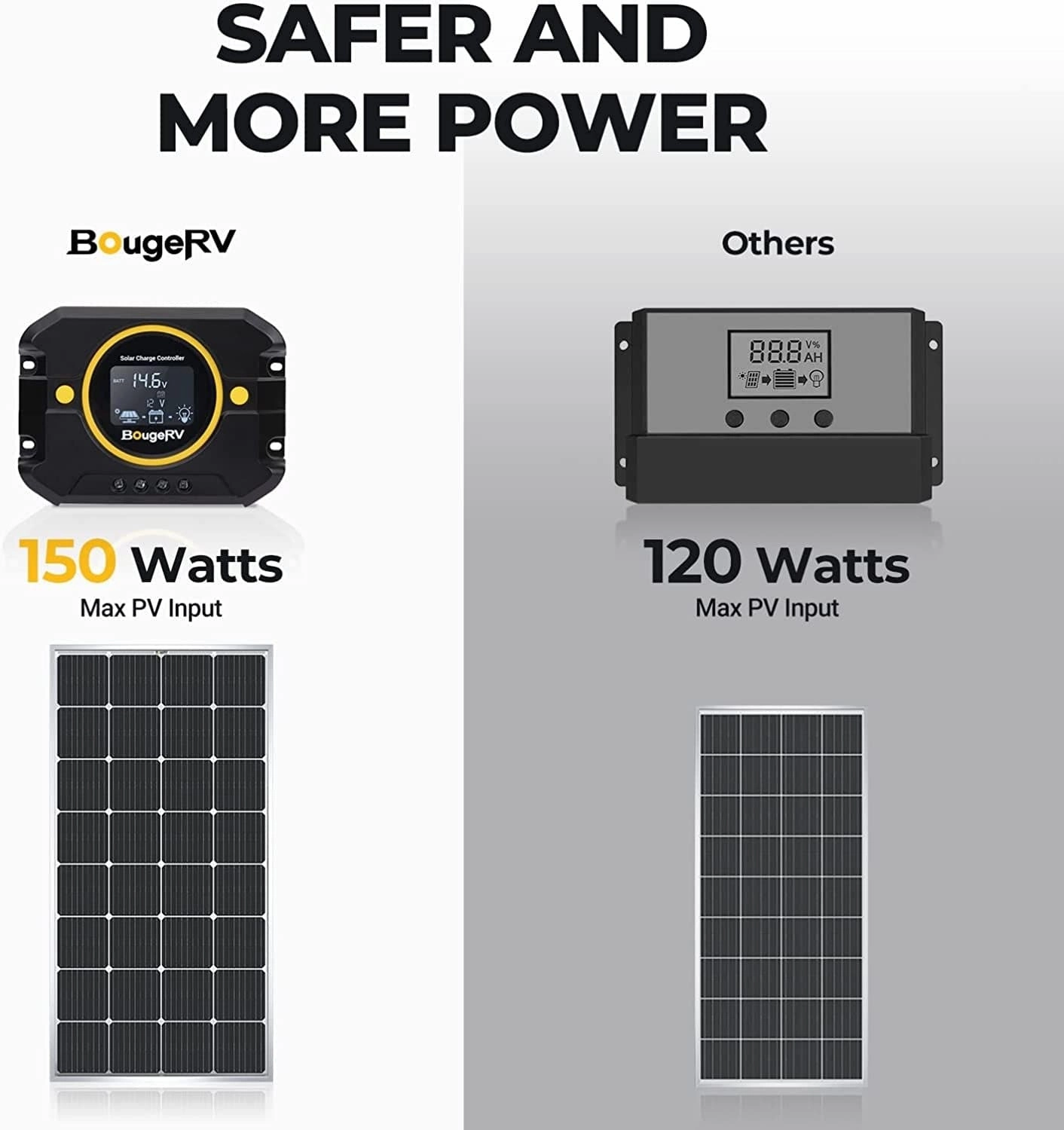

Maximum PV Input Power: 150W/12V; 300W/24V
Rated Current: 10A
Screen Type: Black & White
Backlight Display Time: 15sec off without operation
Working Temperature: -31oF ~ 113oF
Protection Level: IP32
Dimensions: 4.72 x 3.53 x 1.27 in
Screen Dimensions: 1.57 x 1.18 in
Net Weight: 0.3 lb
Drill Hole Size: 0.12 x 0.07 in
What's in the Box:
1 x Li 10A PWM Solar Charge Controller
