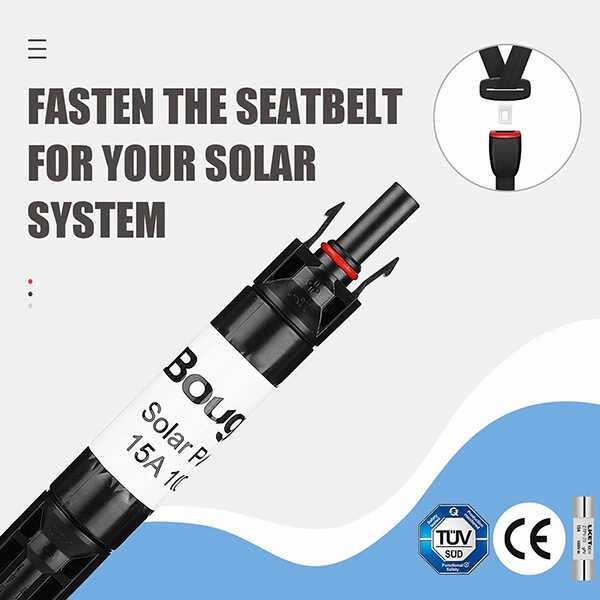

BougeRV 5 PCS 15A Solar Fuse Holder

A quirky protector for your solar power. the 5 pcs of BougeRV Solar Fuse Holder protect your solar panel. solar controller and other appliances of the photovoltaic system. Designed to automatically cut off once the permitted ampere is reached. the IP67 waterproofing ring on the male connector keeps your power up and running even on rainy days.

Designed with solar connectors on both ends. a ceramic fuse tube in the middle and a dedicated PV fuse. protect your entire range of solar gadgets against power surge.

Specifications:

Dimension: 5.01 X 0.71 X 0.71 in

Weight: 45g/1.59 oz.

Ambient Temperature Range: -40oF to 194oF (IEC)

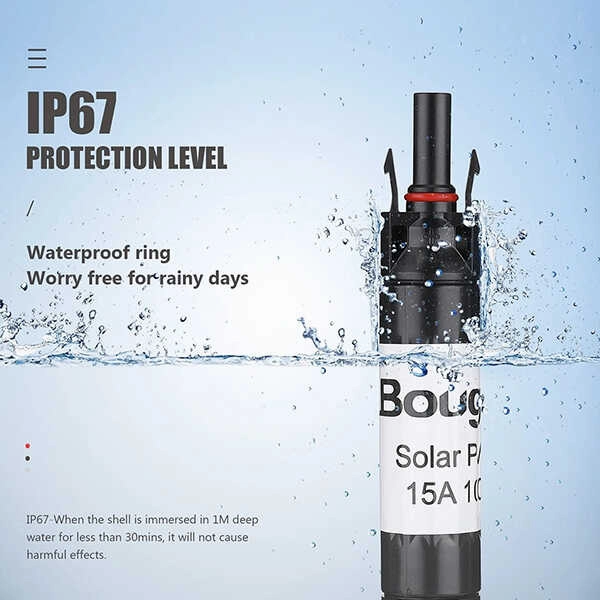

Degree of Protection: IP67

Rated Voltage: 1000V DC (IEC)/800V DC (UL)

Cable Size:2.5 mm. 4 mm. 6 mm(10awg. 11awg. 12awg. 13awg)

Contact Material: Copper tin-plated

Insulation Material: PPO

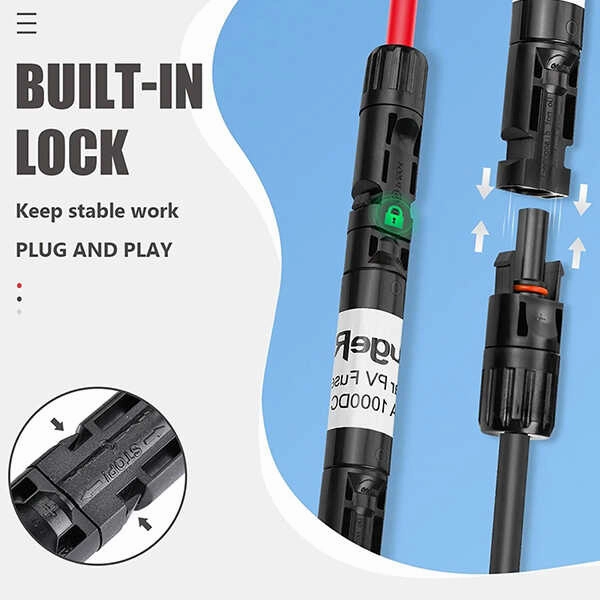

Locking System Plug Connectors: Snap-in

Flame Class: UL94-HB / UL94-V0

Rated Current: 15A

Resistance: 0.5 ohm

What's in the Box:

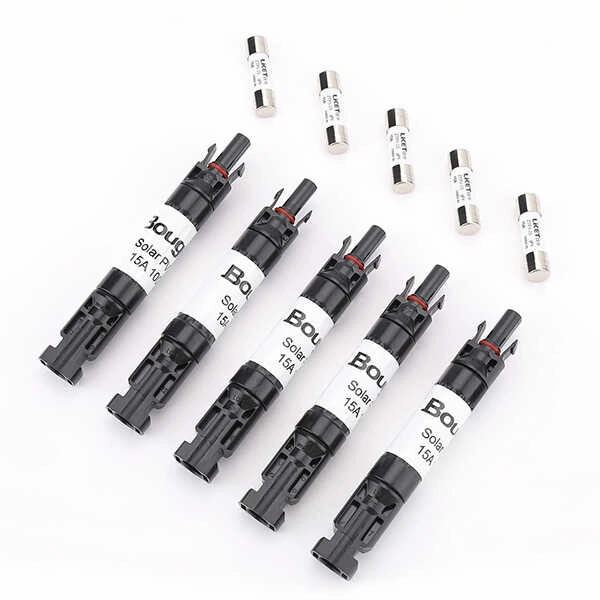

5 x 15A Solar Fuse Holder
