Name: ACOPOWER 600W 12V Poly Solar RV Kits. 50A MPPT Charge Controller (6x100W 50A)
SKU: 328299

Product Details ＋

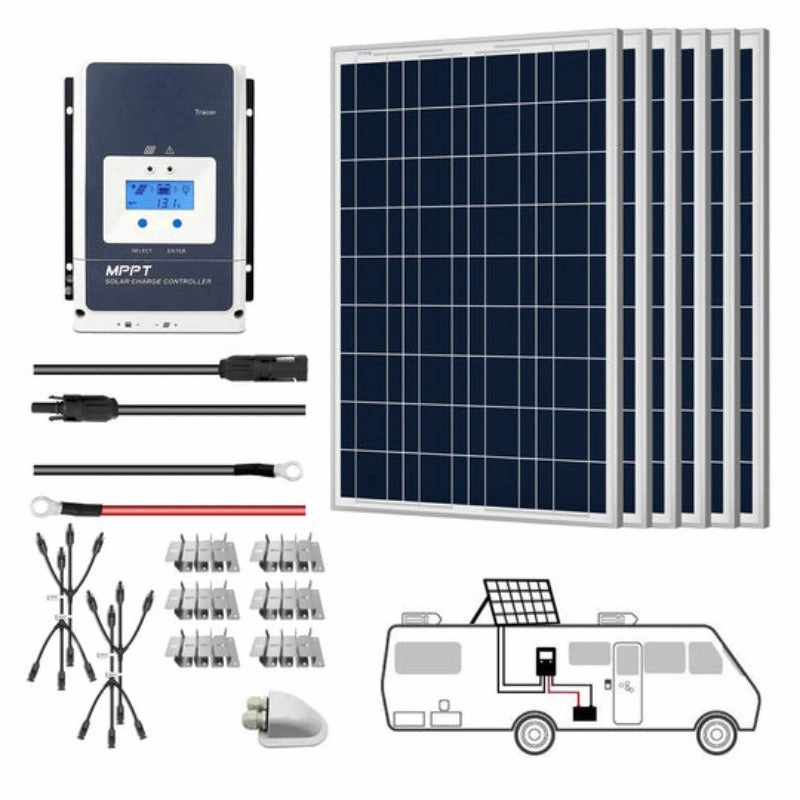

ACOPOWER 600W 12V Poly Solar RV Kits. 50A MPPT Charge Controller (6x100W 50A)

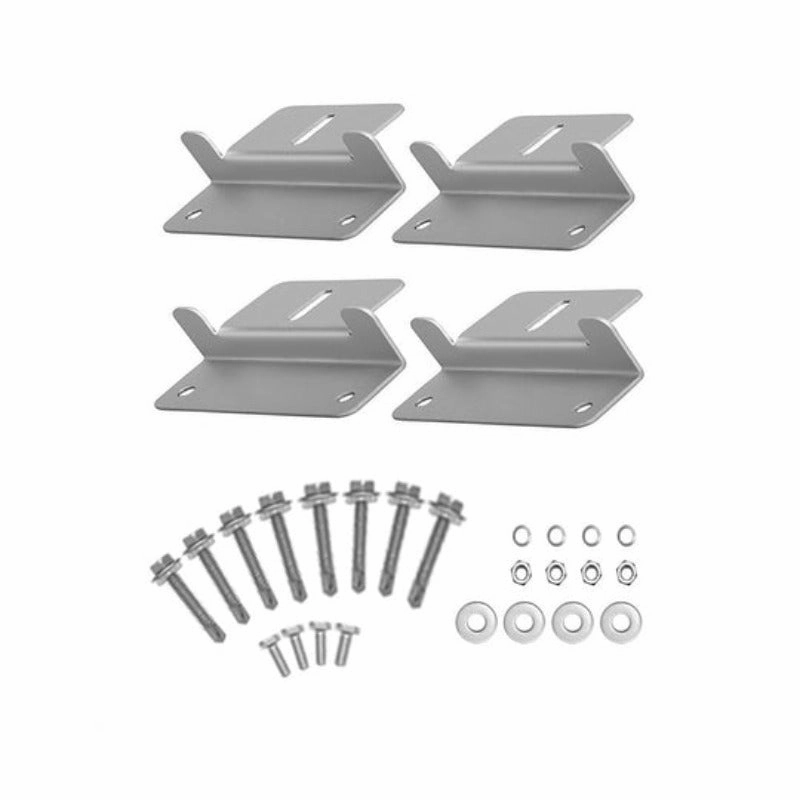

mbark on your off-grid journey with the ACOPower 600W Polycrystalline Solar Panel RV Kit featuring a 50A MPPT Charge Controller. This cost-effective and user-friendly kit is designed for straightforward installation. equipped with six100W solar panels. a 50A charge controller. and essential wiring. It's an ideal solution to power your RV. boat. camper. and various outdoor appliances. providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

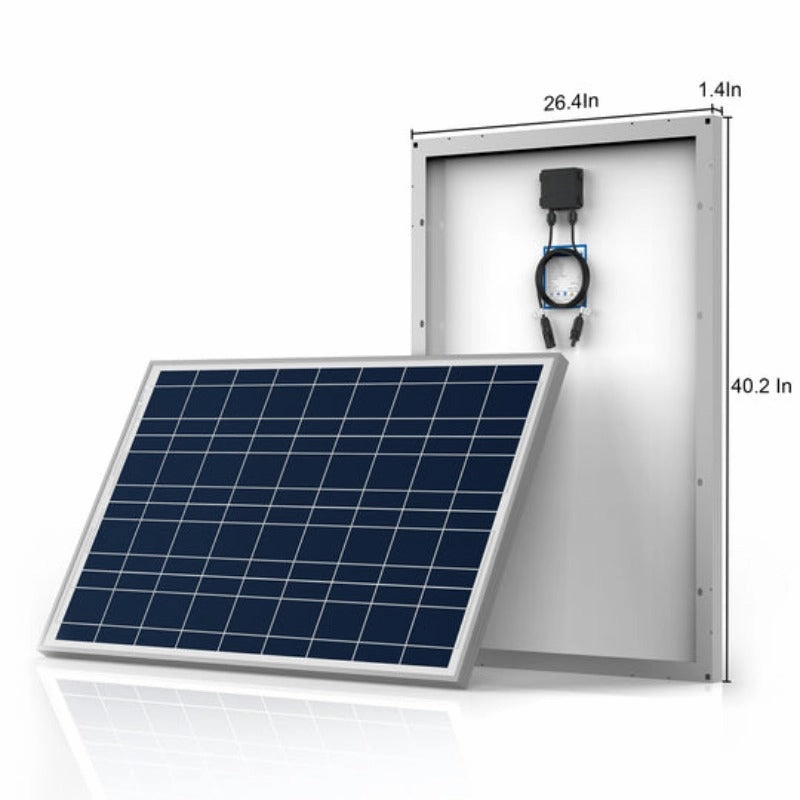

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home. RV. van life. and various applications. this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles. the panel boasts a durable construction featuring tempered glass with an anti-reflective coating. two layers of EVA film. a TPT backsheet. and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot. 16 AWG cable with male and female quick connectors. this solar panel is ready to harness renewable energy efficiently.

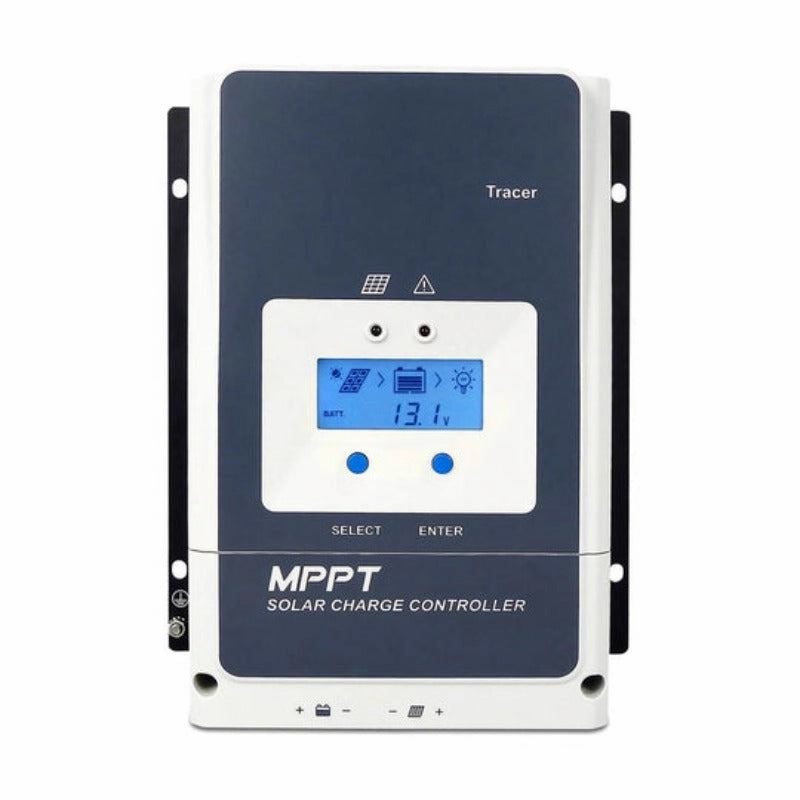

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 60A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12. 24. 36. or 48V batteries. catering to a range of power needs. With a negative-ground configuration. the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types. including flooded. sealed. gel. and li-ion batteries. it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk. boost. float. and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV. cabin. or off-grid system. the ACOPower 60A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
Height Efficiency
MPPT Technology
Green Solar System
Common Negativegrounding design
Warranty
Multiplepackages

Specifications:

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40C to 85C
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

Acopower 50 A MPPT Solar Charge Controller

Nominal System Voltage: 12v/24v/36v/48v DC
Auto Grounding: Common negative Design
Rated Charge Current: 50A
Battery Input Voltage Range: 8V68V
Max. PV Open Circuit Voltage: 150V/138V
Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
MPP Voltage Range: V(BAT) 2V108V
Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
Working temperature: -25 50
Storage temperature: -20 70
RS485 Interface: RS485(RJ45)
Enclosure: IP33
Dimension: 261*216*119mm
Terminals: 16mm2/6AWG
