Name: Acopower 100W poly200Ah/1.5kW(2x100Ah) Li200Ah P800w
SKU: 329207

Product Details ＋

Acopower 100W poly200Ah/1.5kW(2x100Ah) Li200Ah P800w

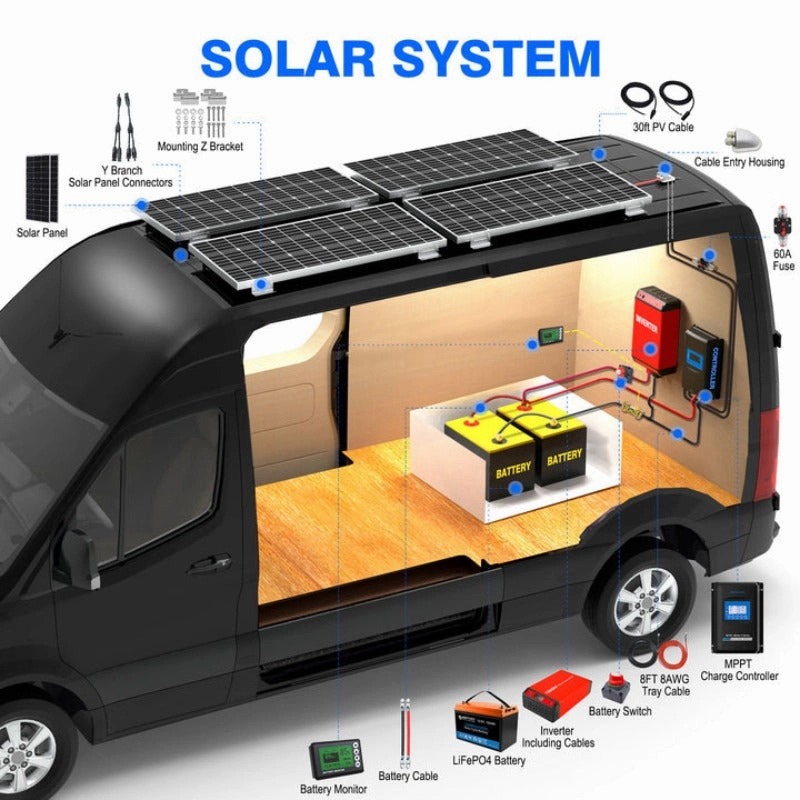

Versatile Application

This Solar RV kit. ranging from 800W. is perfect for establishing an off-grid 12-volt Lithium battery 12V Solar Panel system. The 1500-watt Pure Sine Wave Inverter delivers ample AC power (120VAV) to operate household appliances. while the battery bank ensures a consistent energy supply for moderate use. Designed to meet the energy needs of RVs. cabins. homes. and boats. and serve as a reliable backup in remote power scenarios.

Efficient MPPT Controller

The 60A MPPT Charge controller boasts a peak conversion efficiency of 98% and a high Tracking efficiency of 99%. Featuring a 4-stage battery charging process. it ensures swift. efficient. and secure battery charging. Solar charging between 200W-800W provides approximately 960Wh-3840Wh (Watt-hour) or 80Ah-320Ah (Ampere-Hour) of charge per day. depending on sunlight availability.

High-Capacity Li-Battery Packs

Equipped with 2560Wh-3840Wh of 2 100Ah lithium batteries. these packs demonstrate higher charging/discharging efficiency and endure over 3000 deep cycles. surpassing lead-acid batteries. The built-in BMS (battery management system). coupled with the 60A MPPT solar charge controller. ensures double protection. preventing damage to the lithium battery.

Ready for Installation

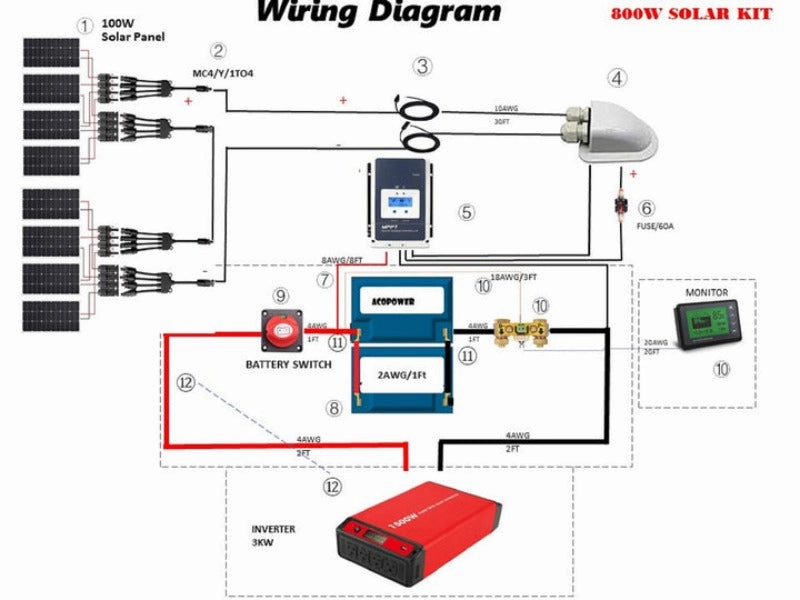

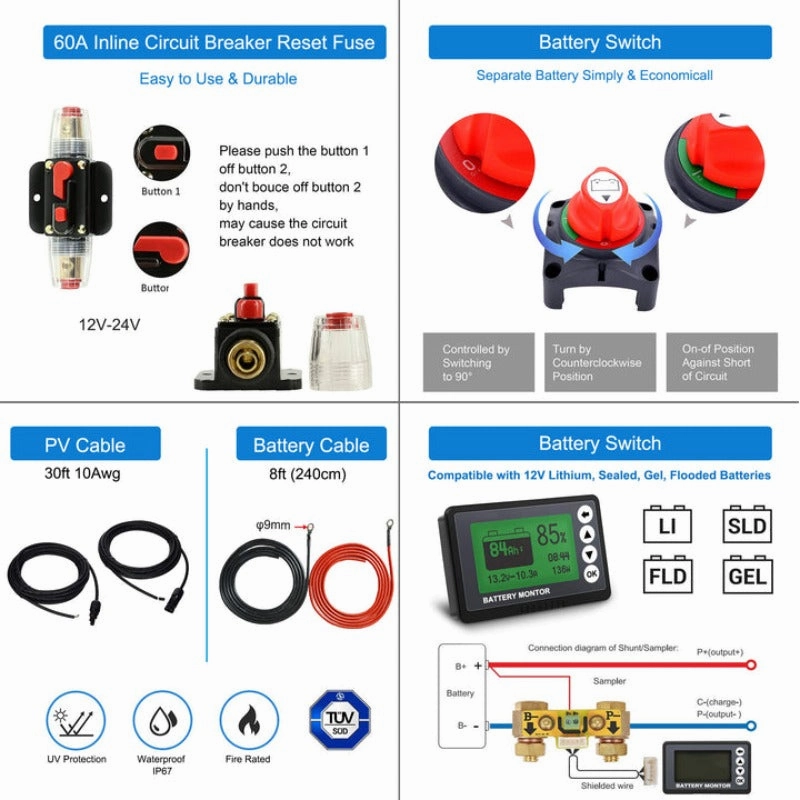

This all-inclusive kit provides everything you need to DIY your solar charge system. The kit includes 8pcs 100 Watt Polycrystalline Solar Panels. 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS. a 1500W DC to AC Power Inverter. a 60 amp MPPT Solar Charge Controller (with LCD Display). a 60A fuse. a battery switch. a battery monitor. and all the necessary cables and solar mounting Z brackets.

Specifications:

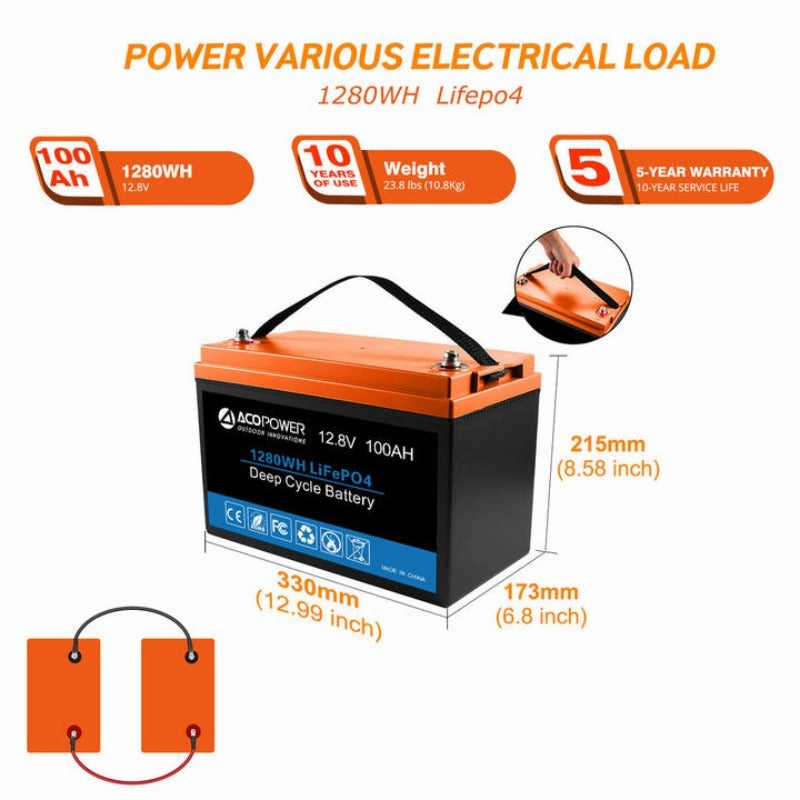

12V 100Ah LiFePO4 Deep Cycle Lithium Battery

Rated voltage: 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity:1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

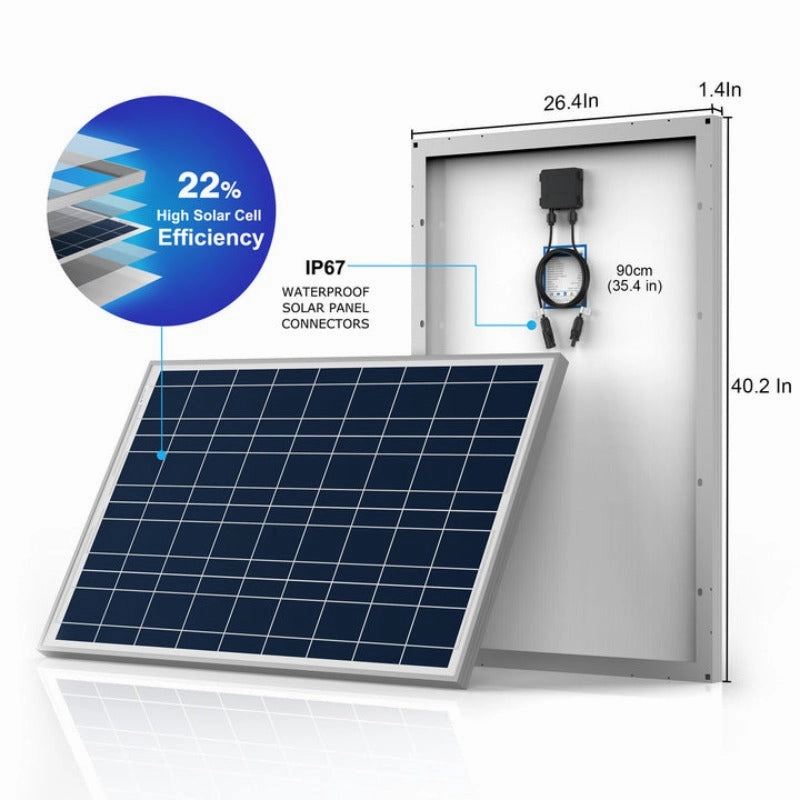

100W Poly Solar Panel

Nominal for 12V battery charger
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc):6.21A
Max Power Current(Imp):5.72A
Weight:17.6lb
Dimension:40.2*26.4*1.4 Inch
Application Class: Class A

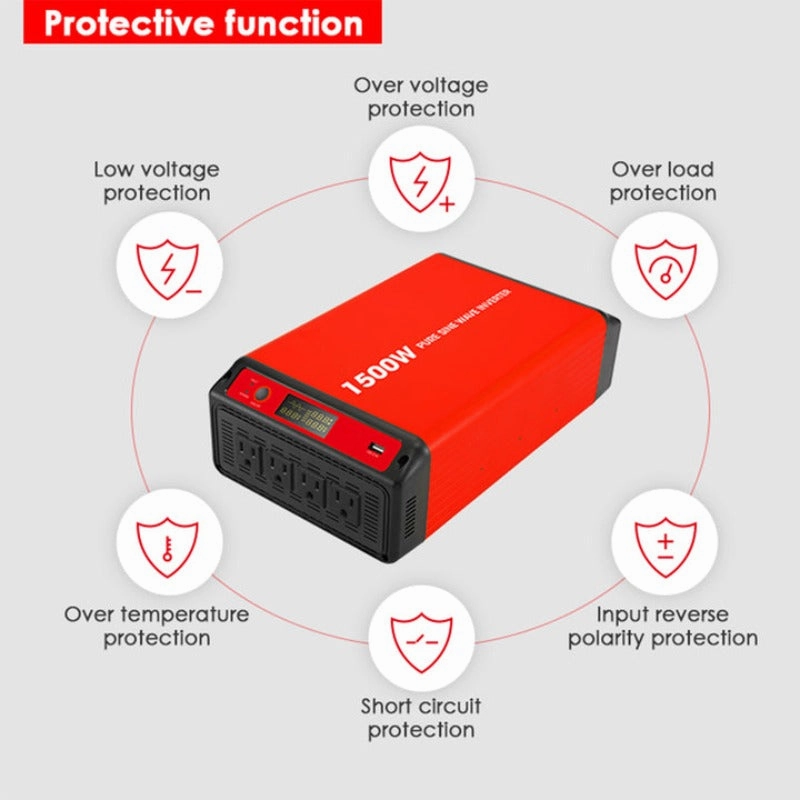

1500W Pure Sine Wave Inverter

Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection. Overvoltage protection. Overload
Protection. Output short circuit protection
Weight: 7.79lb
Dimension(inch): 12.94 1.34 (D) x 7.52(W) x 3.86(H) inch

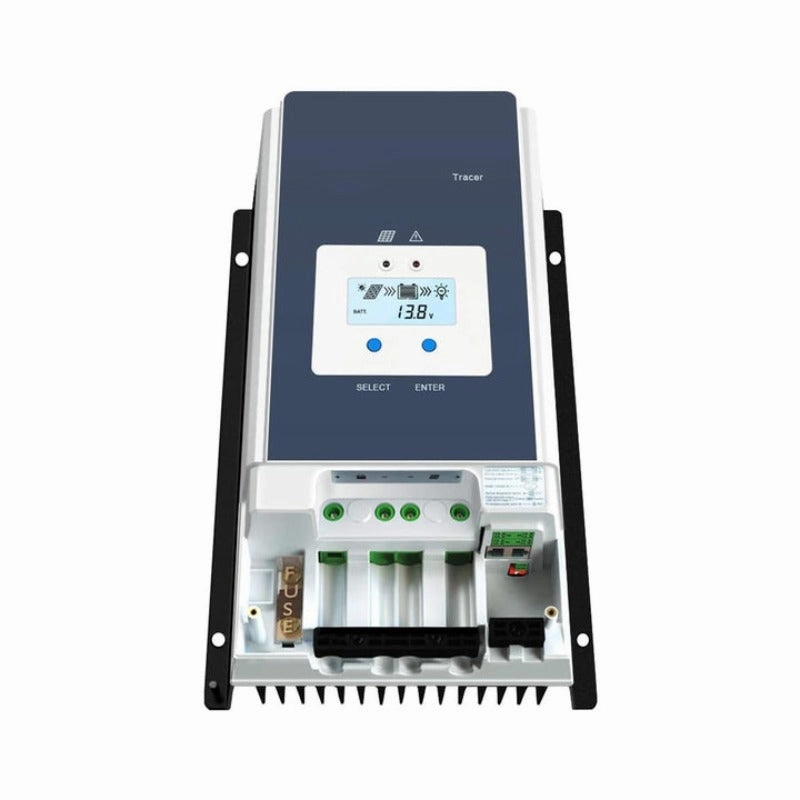

MPPT Solar Charge Controller 60A

Rated charge current: 60A
Battery voltage range: 8V~68V
Max.PV open circuit voltage: 150V
Max.PV input power: 12V/750W.24V/1500W.36V/2250W.48V/3000W
Compatible with Various Deep Cycle Battery options:Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
