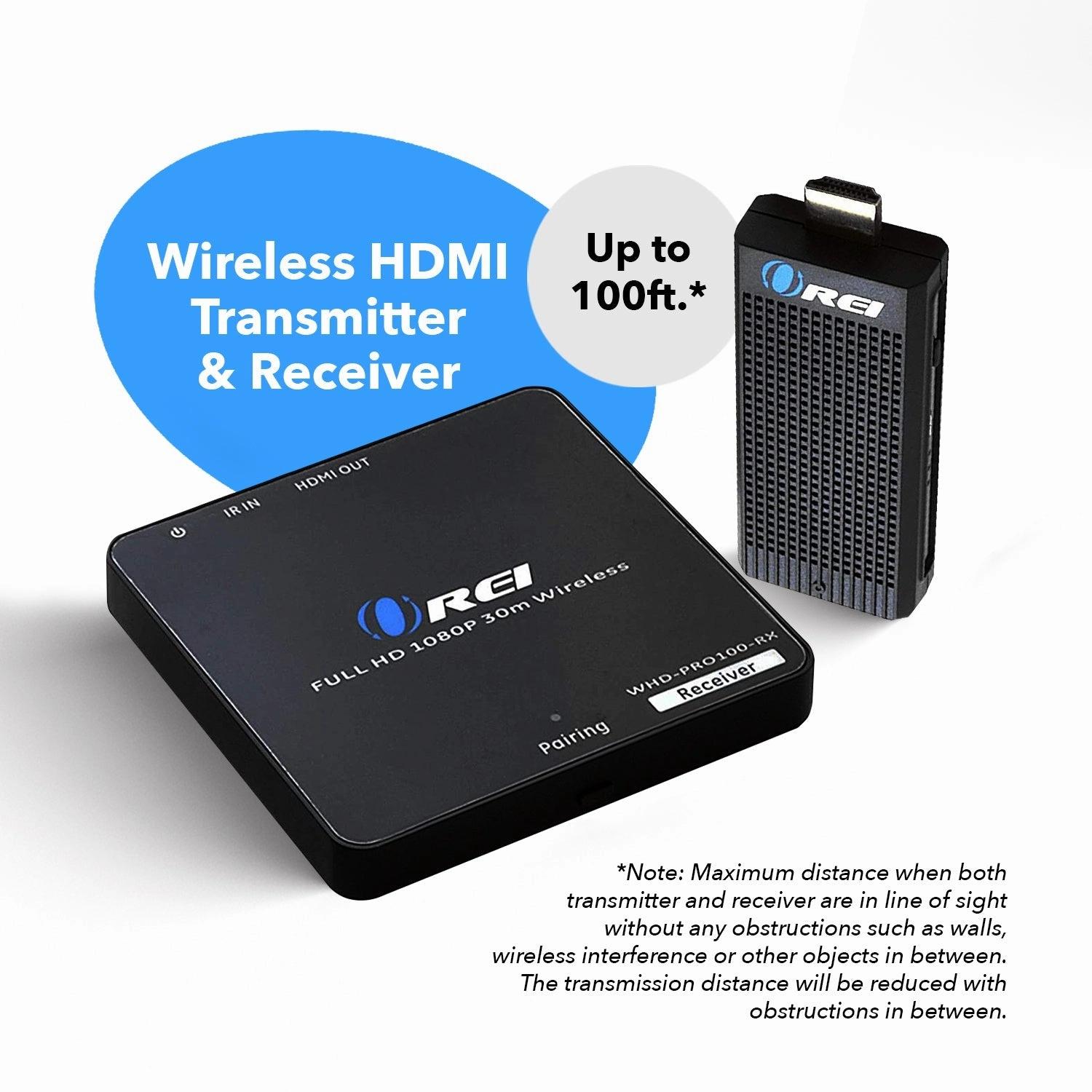

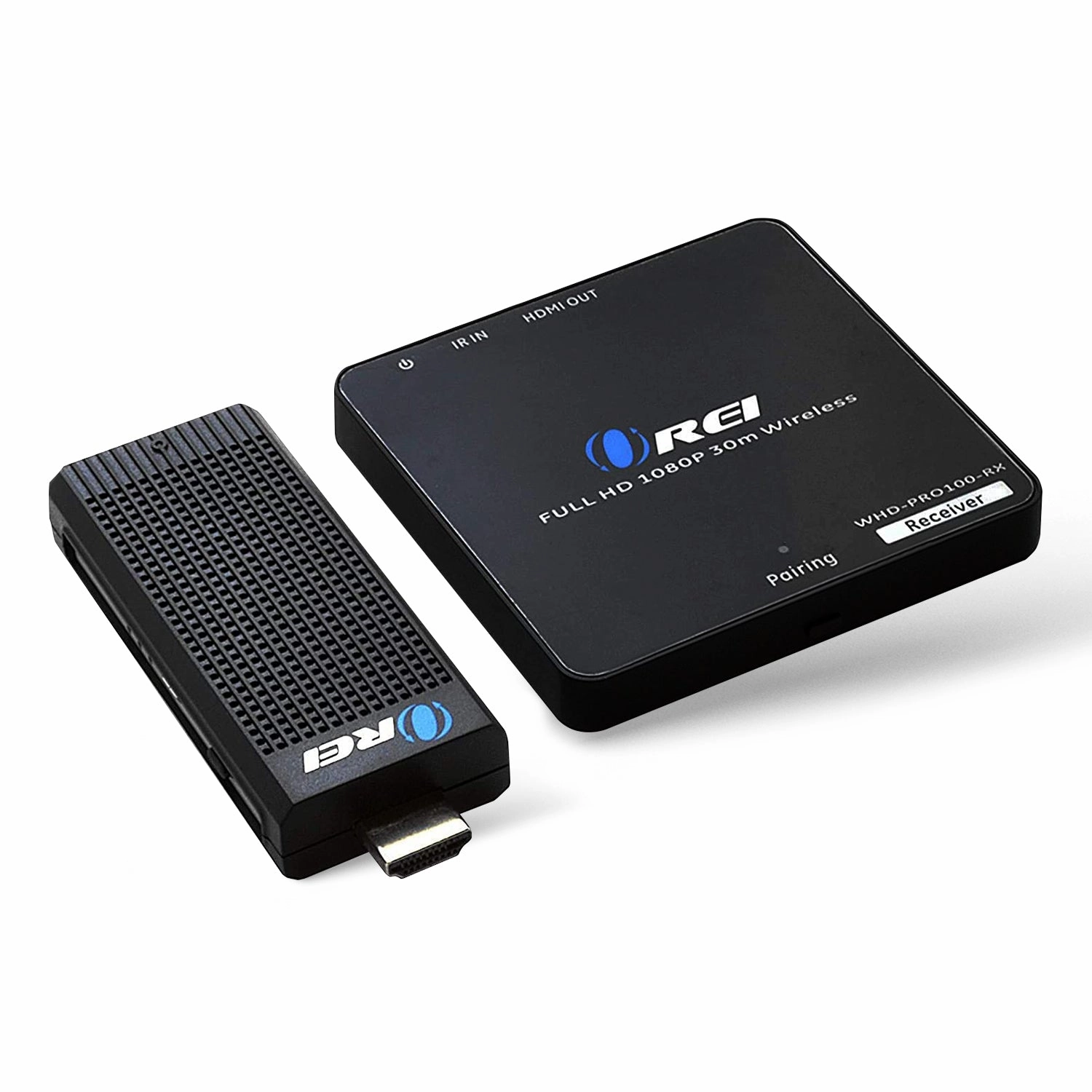

OREI WHD-PRO100-K: Wireless HDMI Extender Upto 100 Ft

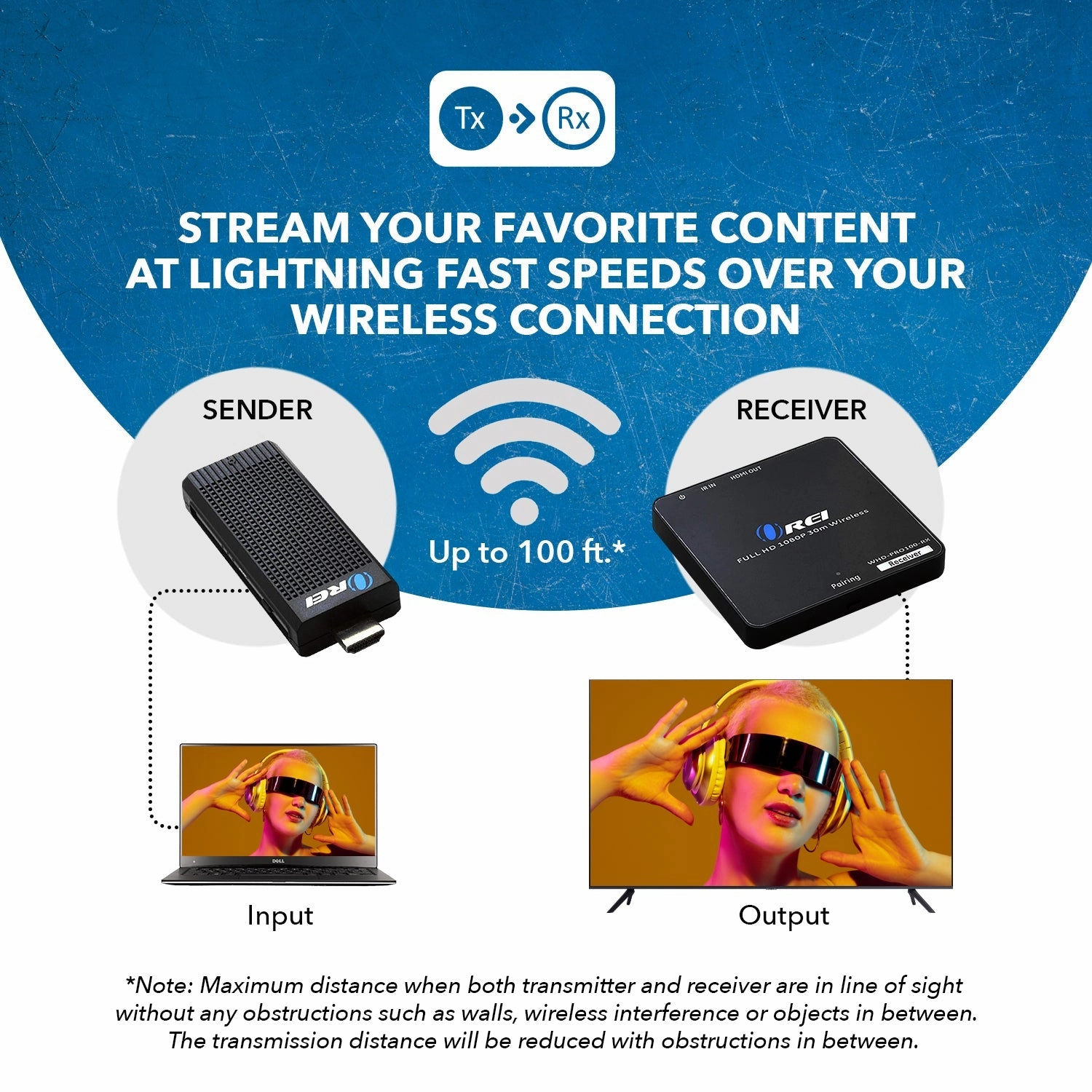

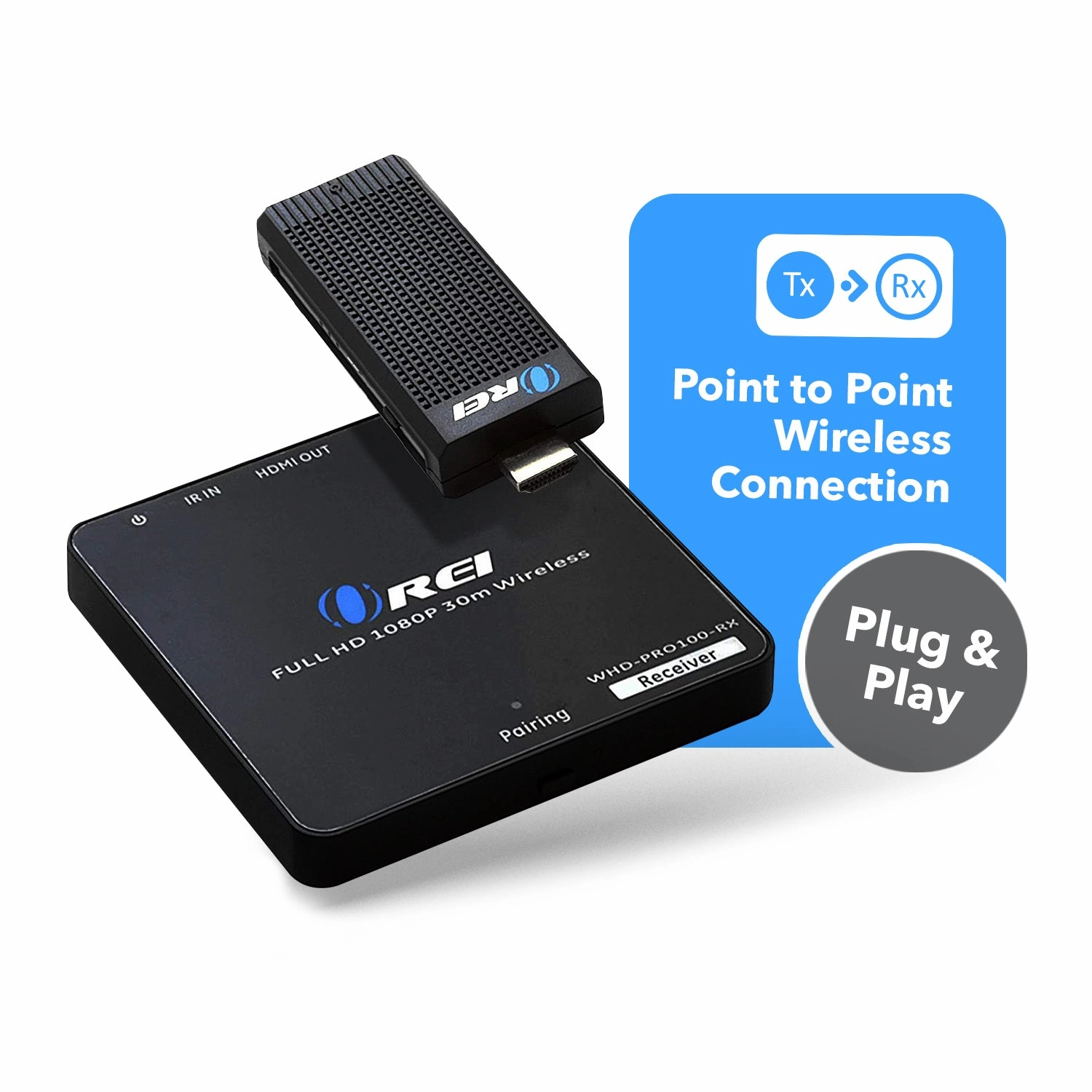

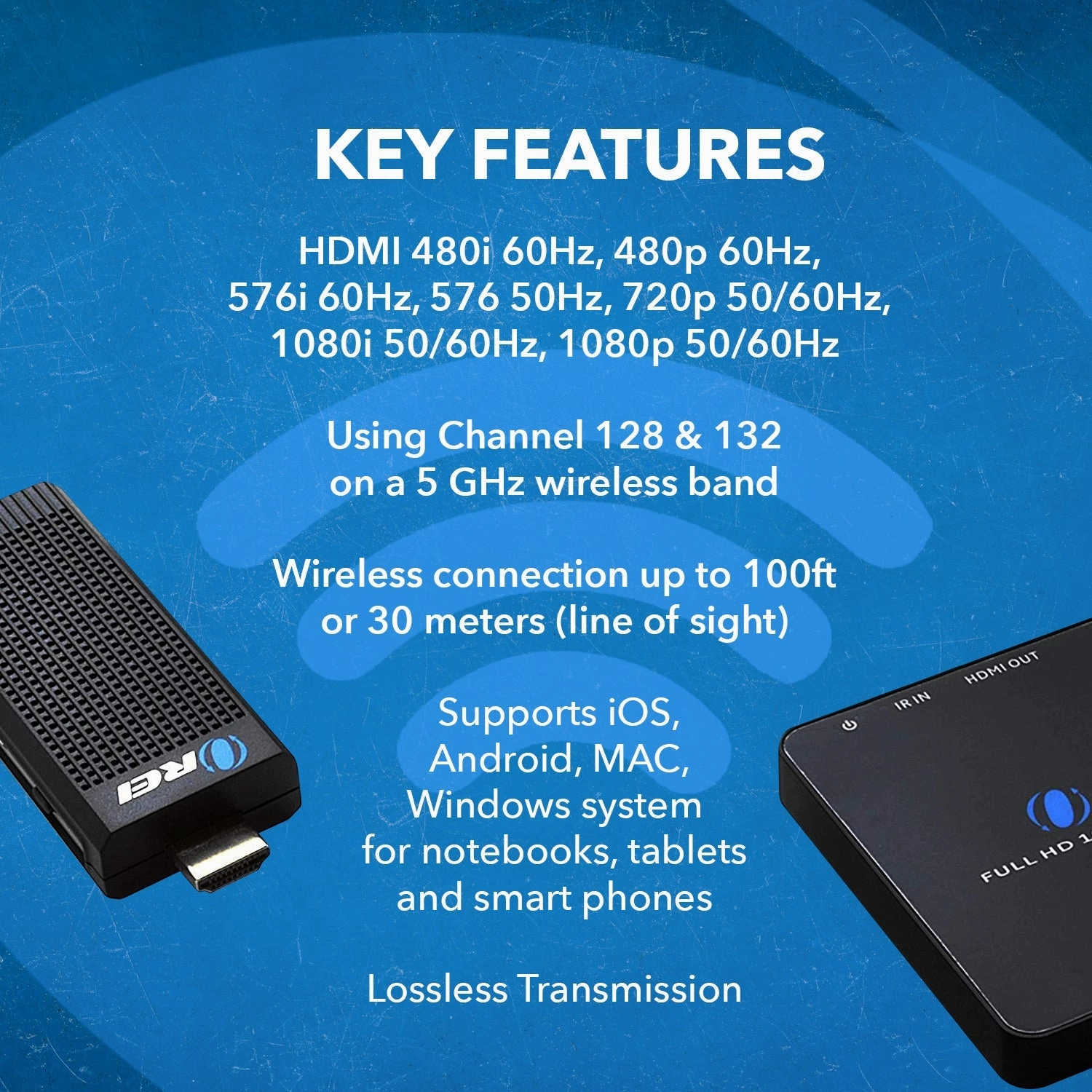

Extend full HD 1080p signal up to 100 feet wirelessly. Will not transmit through walls. direct signal only. Using Channel 128 & 132 on a 5 GHz wireless band Connect the transmitter to an HDMI camera and the receiver to an HDMI monitor. power the transmitter with a Micro USB cable to the laptop or even a power bank. Support point to point wireless Connection. support: HDMI 480i 60Hz. 480p 60Hz. 576i 60Hz. 576 50Hz. 720p 50/60Hz. 1080i 50/60Hz. 1080p 50/60Hz. 20 Plug & play setup without any software installation. Includes: 1 x transmitter. 1 x receiver. 1 x power adapter. 1 x user manual. 1 Year Orei Manufacturer's warranty
[tab] [/tab] [shortdes]
Supports 1080p up to 100 feet line of sight long distance transmission
Less than 300ms latency
HDCP compliant
[/shortdes] [tab]
AUDIO AND VIDEO
Transmitter:
INPUT PORTS:
HDMI Input Type A [19-pin Male]
Receiver:
OUTPUT PORTS:
HDMI output Type A[19-pin Female]
COMPLIANCES
HDMI Compliance
HDMI 1.3a
HDCP Compliance
HDCP 2
EXTENDING DISTANCE
1080p@60Hz:
30M/100 feet(L.O.S)
VIDEO OUTPUT
Video Bandwidth:
148.5MHZ
Video Resolutions:
1080P/60Hz
Color Space:
RGB/YUV4:4:4
Color Depth:
8bit
LOOP-OUT/LOCAL PORT
Has loop out port:
No
AUDIO OUTPUT
HDMI Audio Formats:
PCM2.1/Dolby5.1
SIGNALS
TMDS Signals:
Yes
DDC Signals:
Yes
WIRELESS PERFORMANCE & INTERFACE
Transmission Type:
WiFi
Transfer Method:
802.11 a/b/g/n
Latency:
Max. 0.3 sec. latency
Transmission Distance:
30M/ 100 feet (L.O.S)
Maximun Pixel Clock:
12M(H.264)

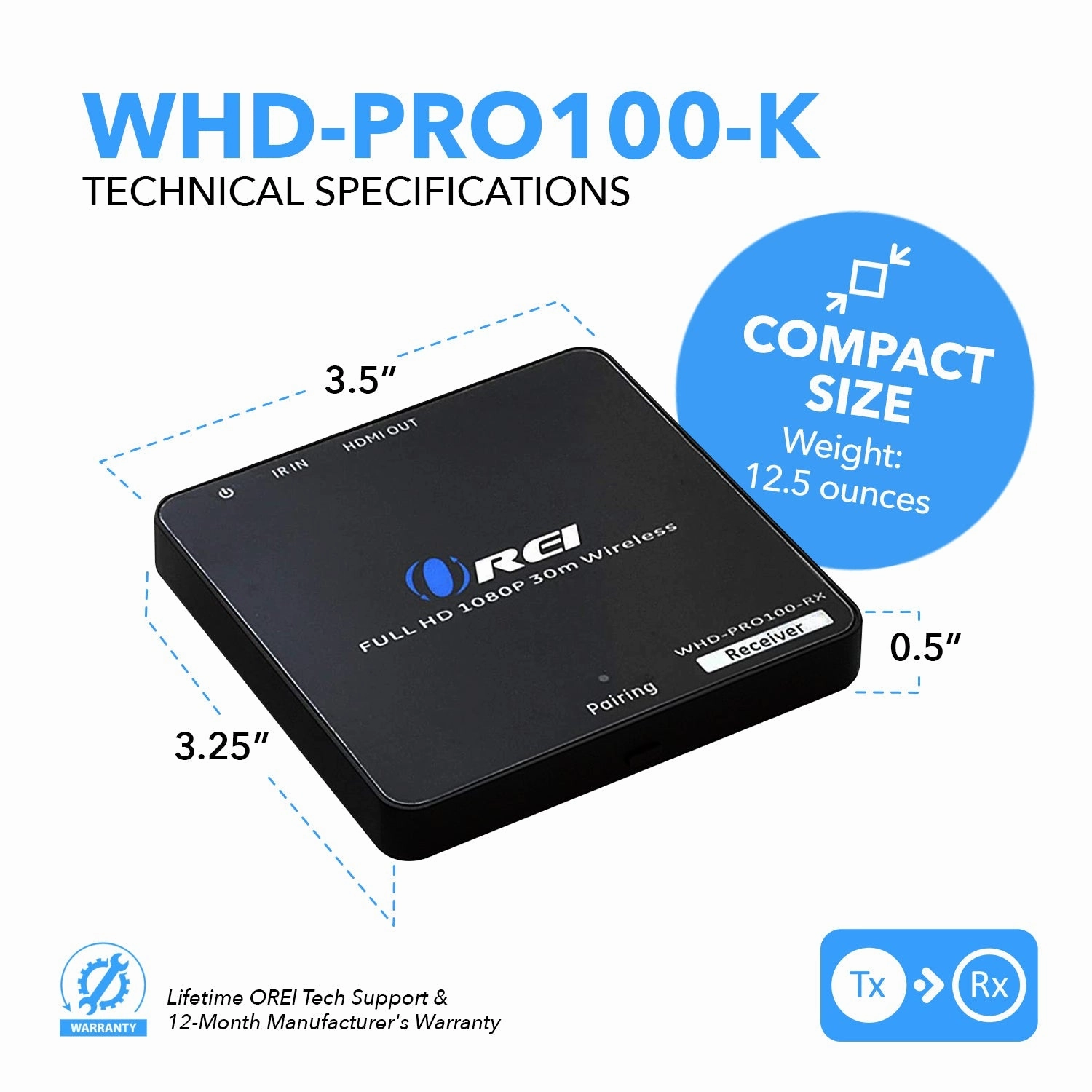

DIMENSIONS & WEIGHT
Transmitter:
Height:
15.5mm
Width:
38mm
Depth:
85.5mm
Weight:
40 gw
Receiver:
Height:
13.8mm
Width:
85mm
Depth:
83mm
Weight:
65 gw
PROTECTION
Operation Temperature:
0~45
Storage temperature:
-10~60
Relative Humidity:
10%~80%
ESD Protection:
4K/8K
Electrostatic Protection of the whole Machine:
OVP/OCP
POWER
Power Consumption (Max):
Transmitter:
5W
Receiver:
5W
Power Supply
Input:
100~240V
Output:
5V 1A
PHYSICAL PROPERTIES
Color:
Black
Housing:
Plastic
Finishing:
Matte
PACKAGE CONTENTS
1x HDMI Transmitter
1x HDMI Receiver
1x Type A USB to Micro USB power cable (Y type model)
1x DC 5V/1A power adaptor (Micro USB type)
1x User Manual
WARRANTY
1-Year Manufacturer's Warranty
[/tab]
[tab1]
FAQs
Please try the following steps to resolve your pixelating issue:
- Please try replacing your current HDMI cables with High-Quality HDMI cables.
- Please make sure that you dont have any other wireless devices such as wifi router nearby this extender. If you have a wifi router. then please try moving the router away as the wireless signals interfears with each other & causing this issue.
Our all the extenders supports IR Frequency & the devices using RF frequency will not be compatible with our products.
The IR Blaster/Emitter should be connected to the IR out port on the Transmitter and the IR Receiver should be connected to the IR in on the Receiver.
Here's a quick overview of the IR connection on our extenders: IR Blaster Explained | Use IR with HDMI Extender Kit - Remote Control
[/tab1]
