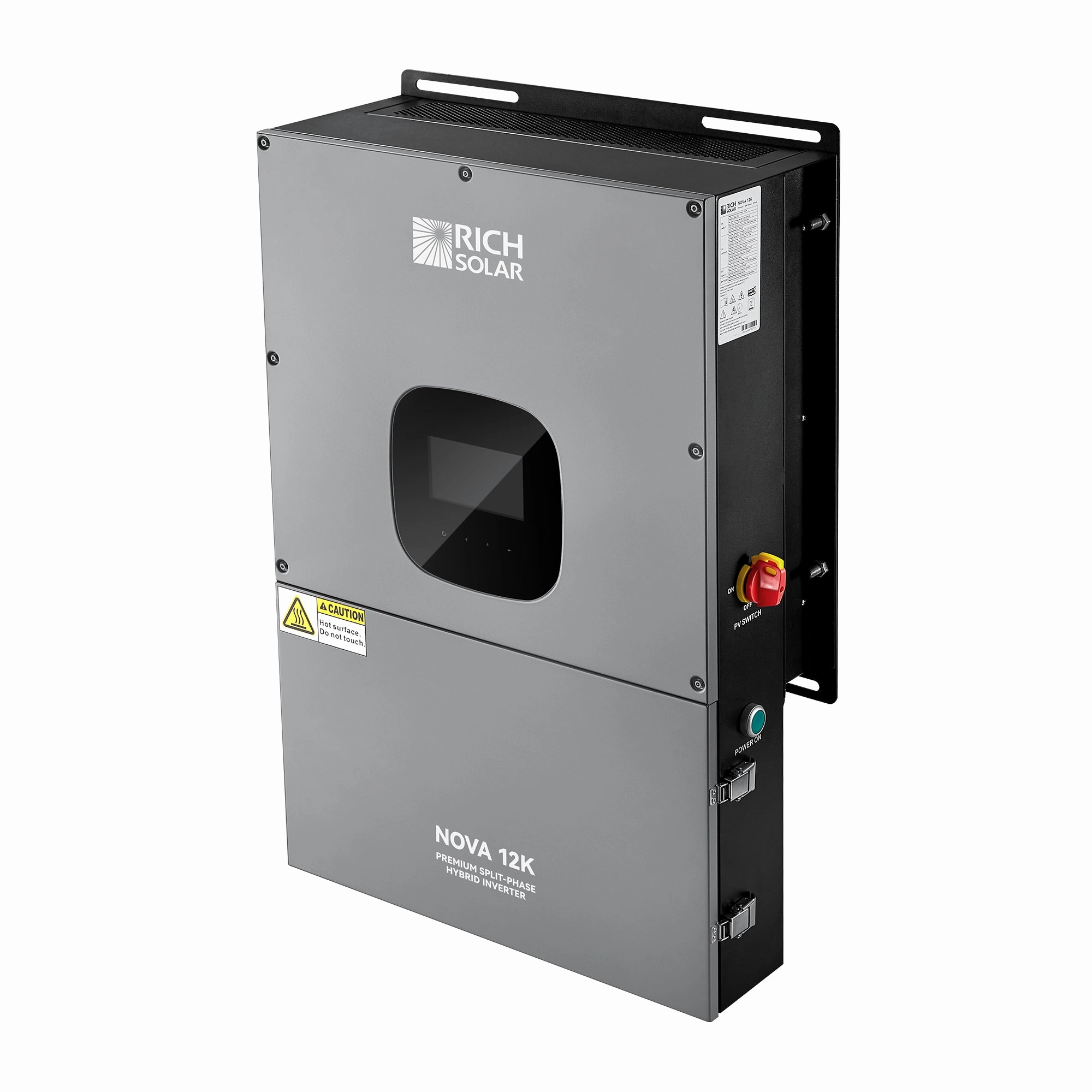

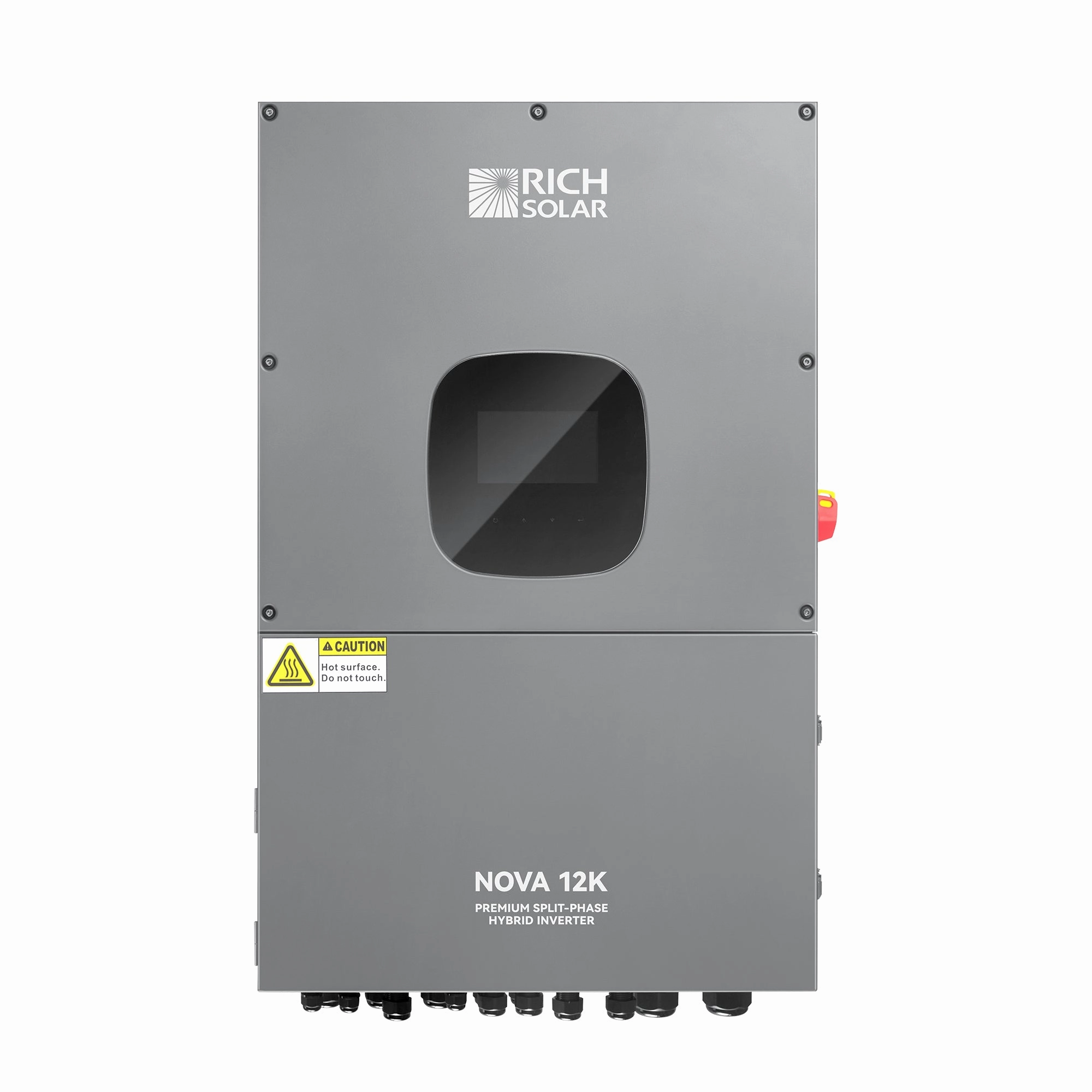

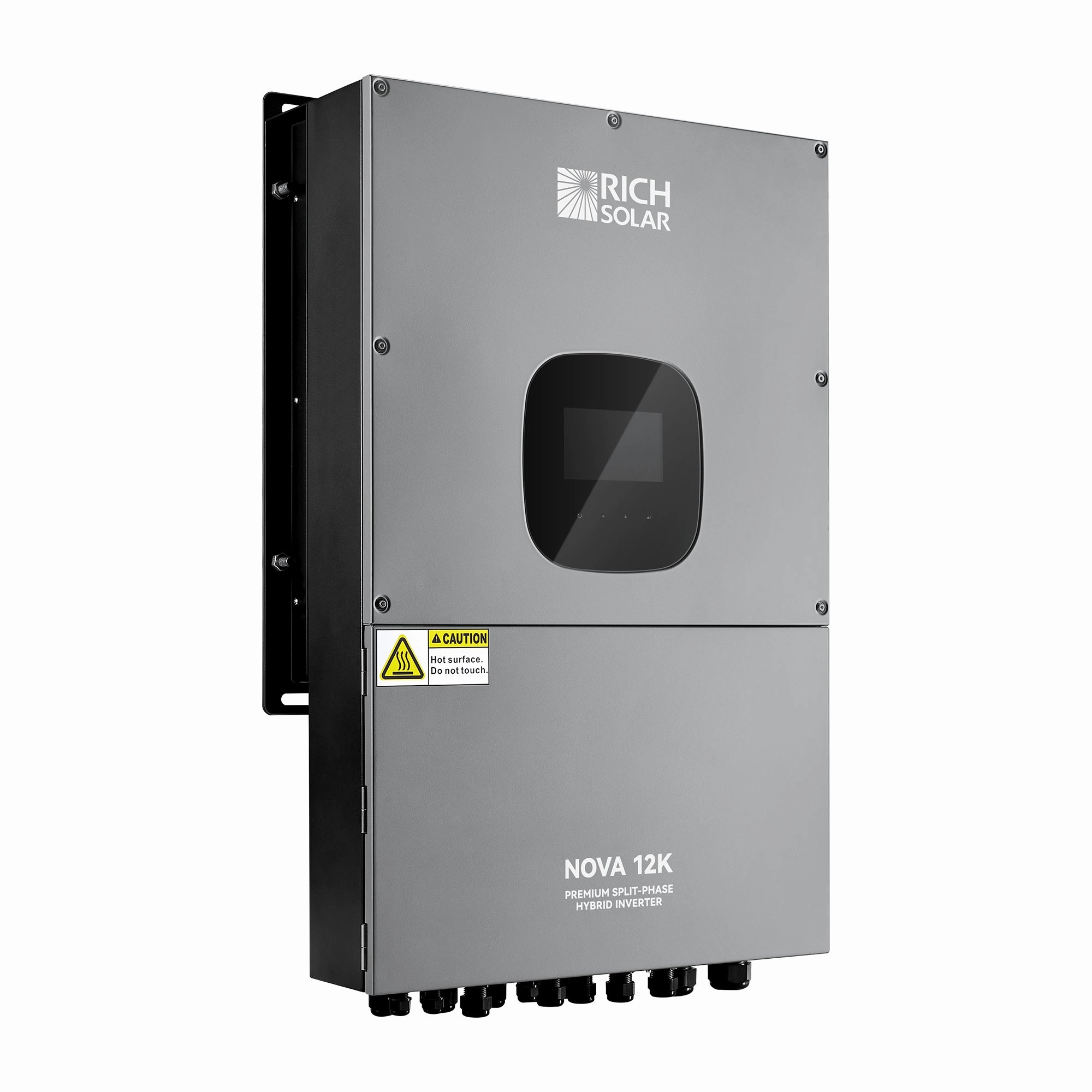

Rich Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter
The Rich Solar NOVA 12K is a heavy-duty 12.000W split-phase off-grid hybrid inverter designed to meet the high energy demands of large residential or light commercial solar systems. Featuring wide compatibility with battery types. smart app monitoring. and built-in safety protocols. the NOVA 12K is the all-in-one solution for powering your home. shop. or off-grid building with total control. With built-in AC coupling. advanced protection features. and dual MPPT trackers. this inverter optimizes solar usage while supporting generator input and multiple power sources. Easily scalable with parallel operation of up to 6 units. it delivers unmatched flexibility and high-efficiency performance in demanding environments.
Key Features
Split-Phase Power Output (120/240VAC & 120/208VAC): Supports both residential and light commercial applications with multi-voltage output compatibility.

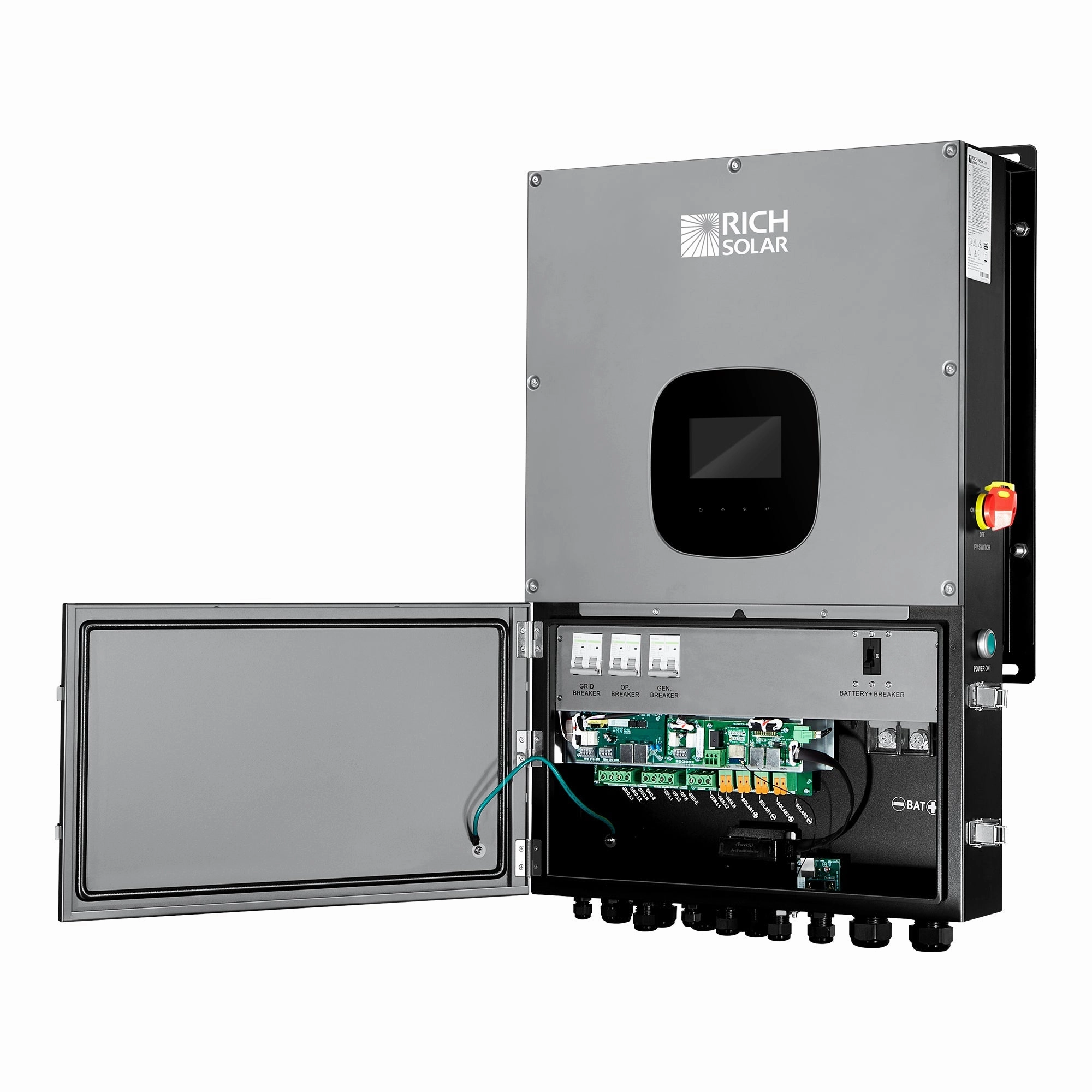

Heavy-Duty Built-In Breakers: Equipped with a 300A DC breaker and 60A AC breaker for safe and streamlined installationsno external breaker box needed.
Dual MPPT with 12.000W Solar Input: Two MPPT trackers allow for greater design flexibility and solar input optimization across multiple string configurations.
Integrated AC Coupling: Enables hybrid operation and compatibility with existing grid-tied inverters for energy storage retrofits or grid support.
Mobile Monitoring with Built-In Wi-Fi: Stay connected anywhere with real-time system data via the Rich Solar app (Android/iOS).
Smart Load Management with External CT Sensor: Ensures 100% self-consumption by intelligently managing energy distribution between loads. batteries. and solar input.
Generator & Grid Compatible Second Power Input: Accepts input from backup power sources to ensure continuous operation even in low sunlight or high-demand situations.
Advanced Safety Features: Includes built-in Arc Fault Detection (AFD) and Rapid Shutdown (RSD) to meet latest safety standards and regulations.
Low Idle Consumption: Efficient energy use with a low idle draw of only 150W (10%). maximizing battery lifespan and overall system output.
Scalable Up to 6 Units: Supports parallel operation for large systemsup to 72kW output for homes or facilities with high power needs.
Specifications
Maximum PV Input Power: 12000W
Parallel Capability: Yes. up to 6 units
Maximum DC Voltage: 600VDC
Start-up Voltage/Initial Feeding Voltage: 125VDC/160VDC
MPPT Voltage Range: 120VDC550VDC
MPPT Trackers / Max Input Current: 2 / 18A
Rated Output Power: 10000VA / 10000W
Nominal Output Voltage: 120VAC(P-N) / 208VAC(P-P) / 240VAC(P-P)
Output Voltage Range: 105.5132VAC per phase
Nominal Output Current: 41.5A per phase
Battery DC Voltage Range: 4062VDC (Nominal 48VDC)
Max Solar Charging Current: 200A
Max AC Charging Current: 200A
Max Total Charging Current: 200A
Operating Temperature Range: -13F to 140F (>113F derating)
Protection Rating: IP65

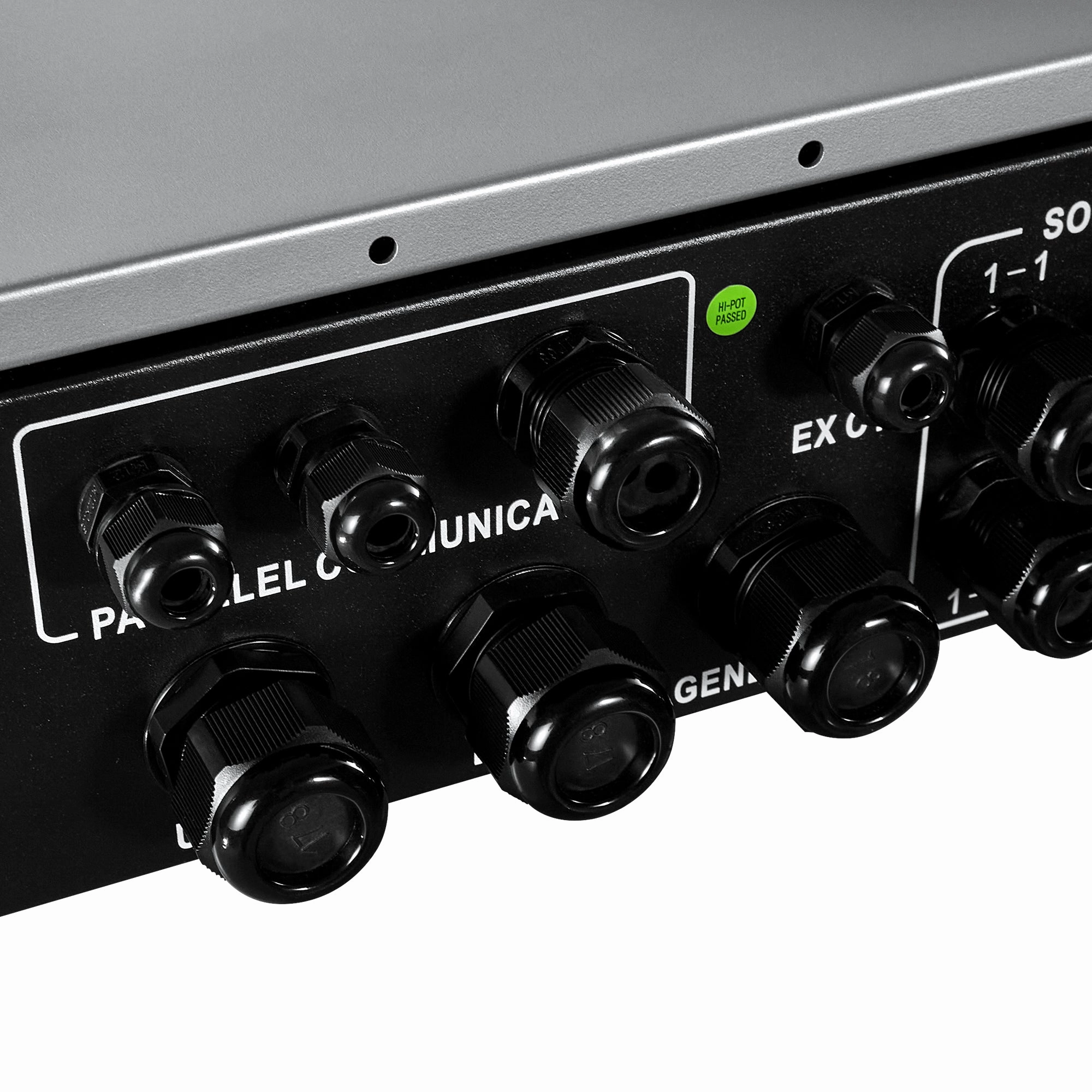

Communication Ports: RS232. RS485. Wi-Fi. USB

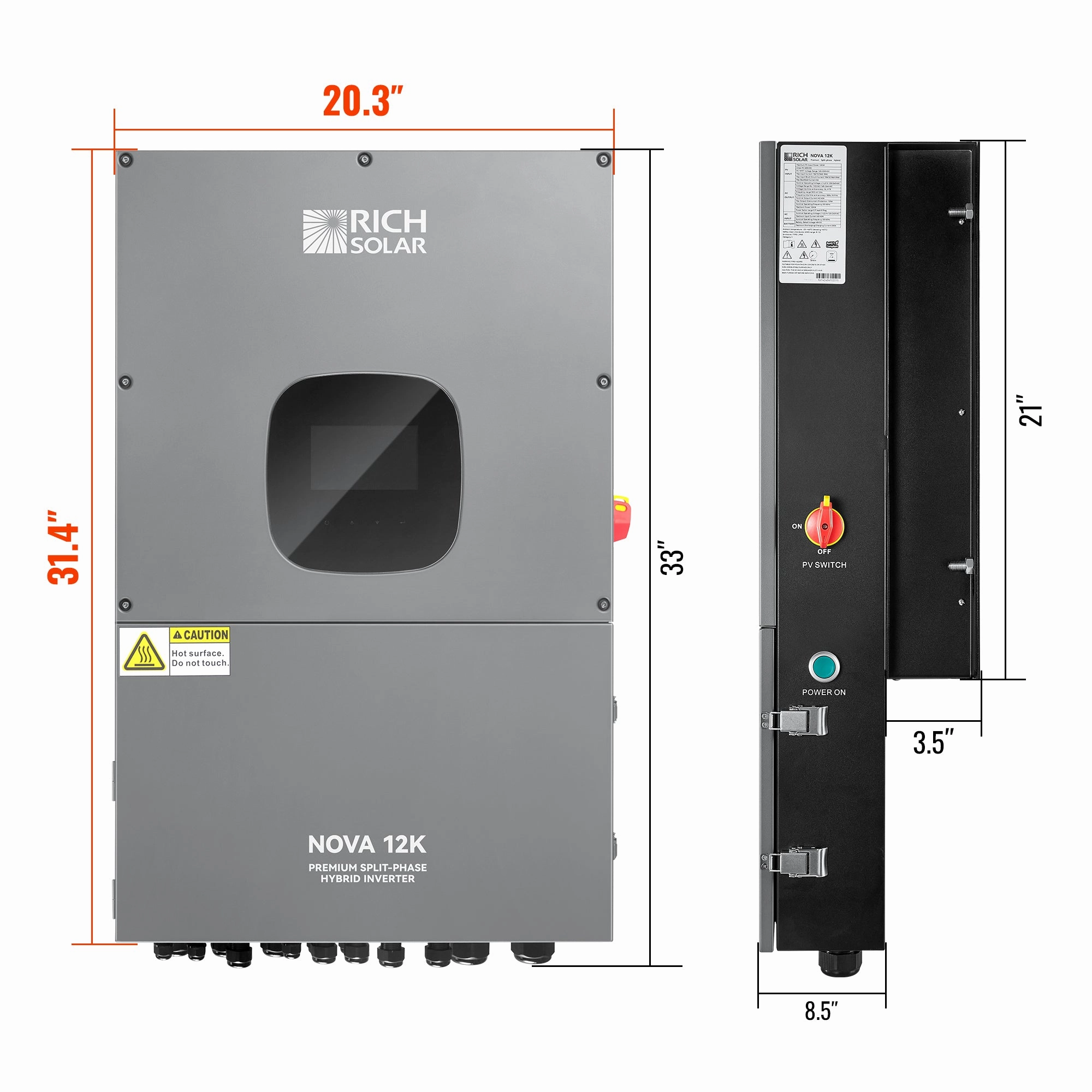

Dimensions (LWH): 8.5 x 20.3 x 28.1 in / 215.5 x 515 x 715 mm
Net Weight: 99.2 lb / 45 kg
Certifications: UL1741SA. UL1741SB. CSA 22.2.107.1. CEC
What's in the Box
1 Rich Solar NOVA 12K Hybrid Inverter
1 CT Sensor
1 Wi-Fi Module (Pre-installed)
1 User Manual
1 Mounting Hardware Kit
