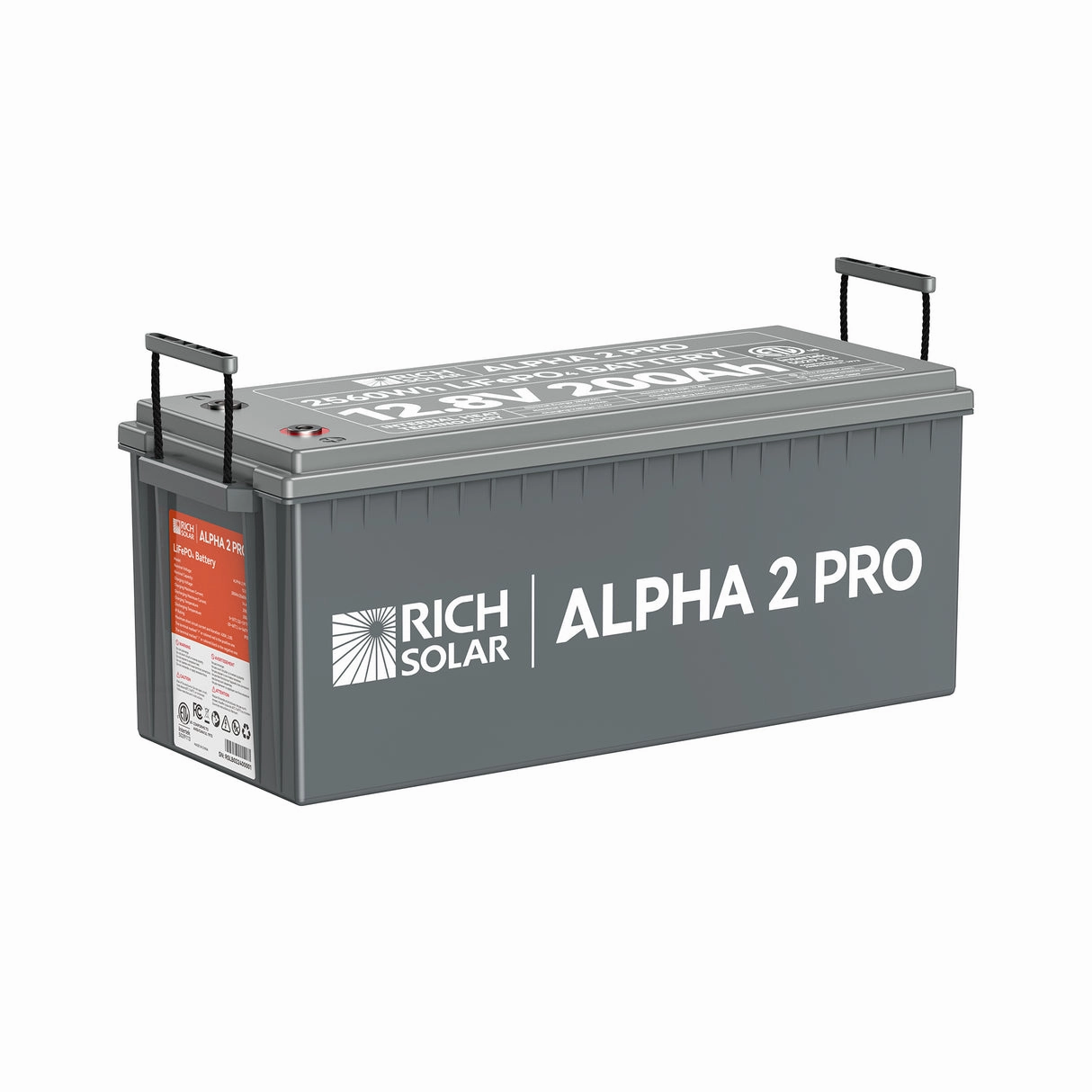

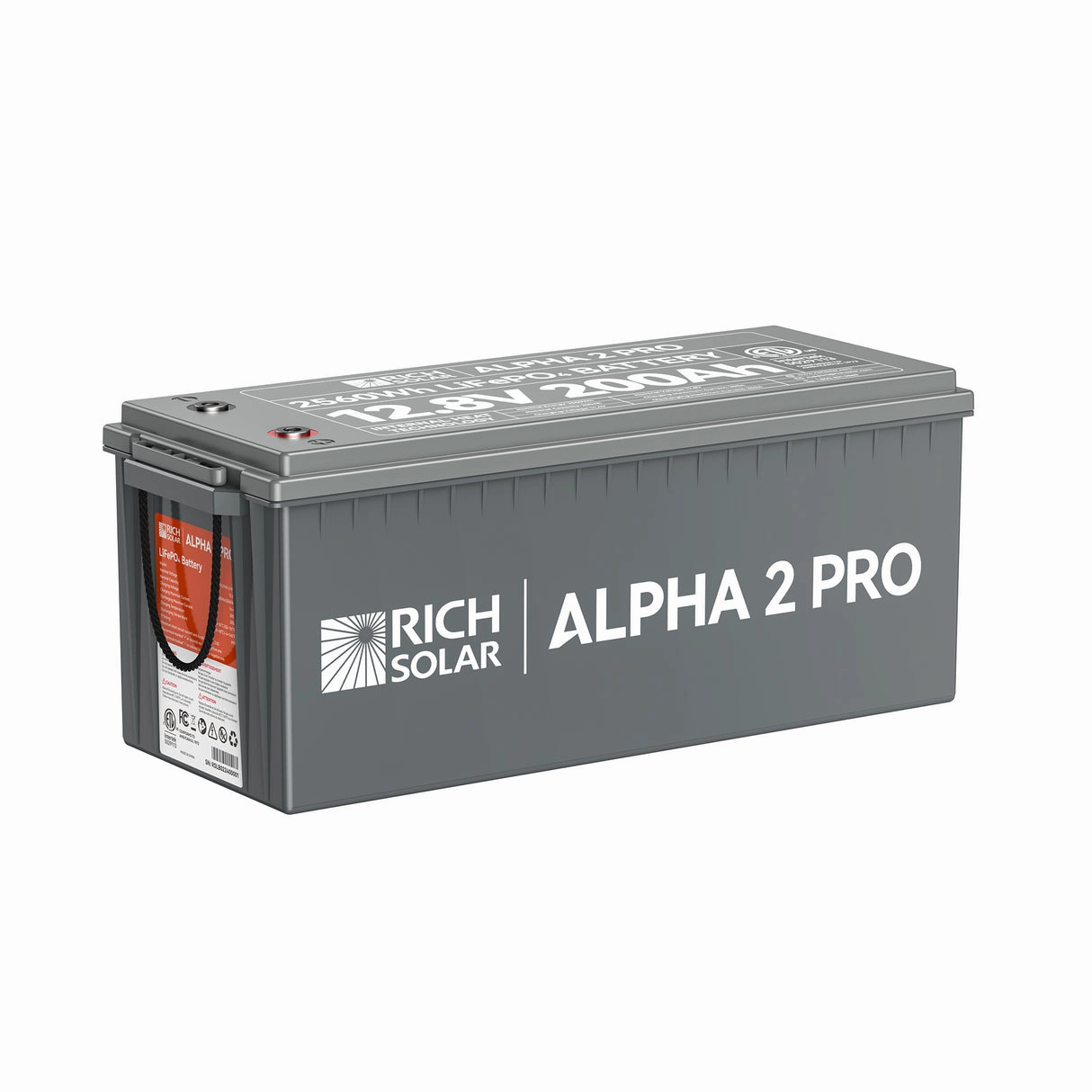

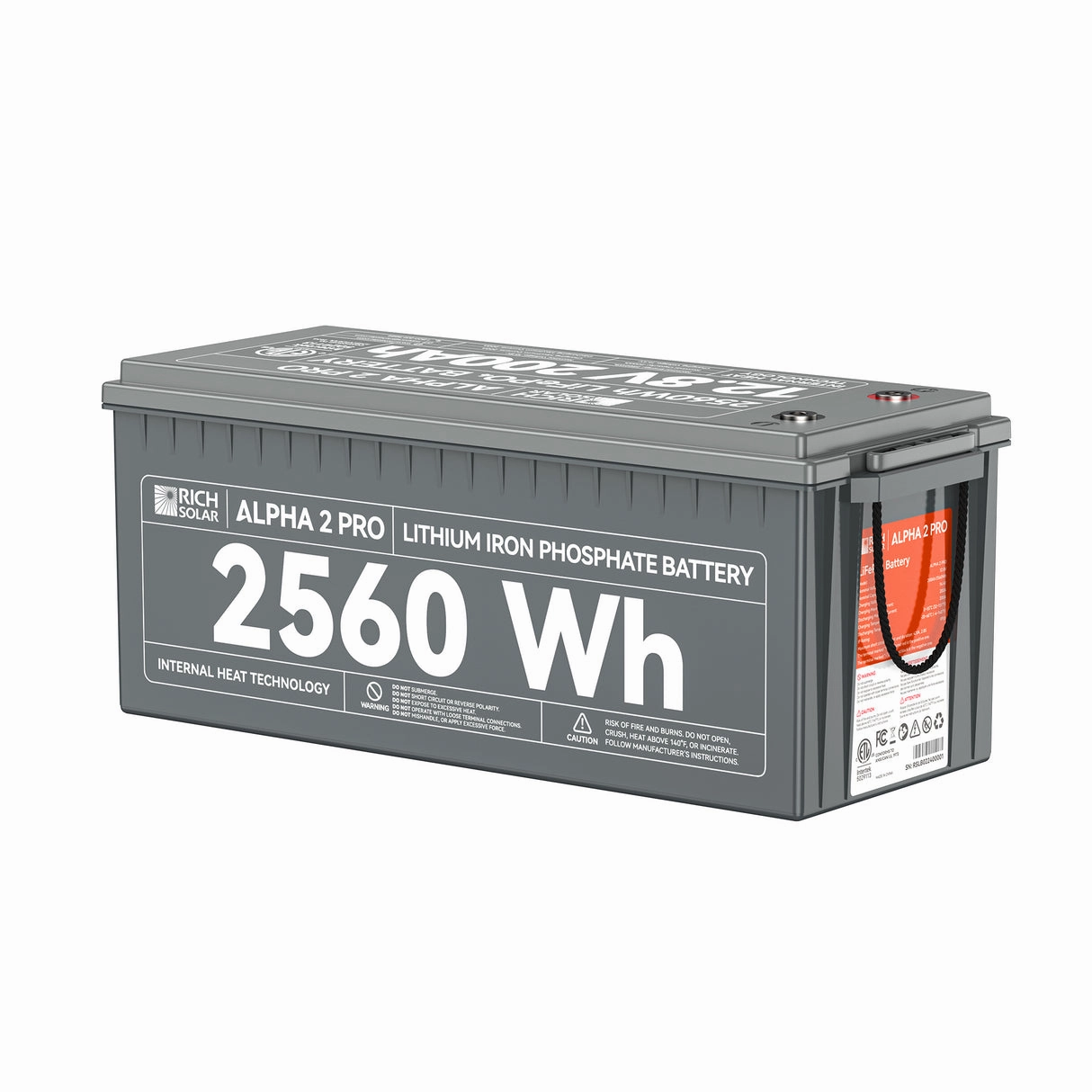

Rich Solar ALPHA 2 PRO | 12V 200Ah LiFePO4 Battery
Rich Solar ALPHA 2 PRO is a 12V 200Ah LiFePO4 battery designed to power your off-grid dreams. an ergonomic battery with over 7000 lifecycles to source you with consistent and reliable power no matter where your adventures take you.
Perfected for RVs. campers. boats. vans. cabins including your crazy DIY projects. ALPHA 2 PRO comes with its internal heating keeps your battery from stalling by automatically kicking up the internal heat mechanism at temperatures less than 5-degree C till it brings up the internal temperature to 10-degree C. a safer environment for the battery to operate.
Fitted with A industrial grade battery cells. Rich Solar's safe battery management system (BMS) responds instantly to protect against overcharge. overdischarge. overcurrent. short-circuit. low and high temperatures.
Specifications:
BATTERY
Cell Type:LiFePO4 Battery
Nominal Voltage:12.8V
Nominal Capacity:200Ah
Nominal Energy:2560Wh
Cycle Life:7000 cycles
Maximum Expansion (Parallel & Series):4P4S
BMS
BMS:100A
Maximum Charging Current:200A
Maximum Continuous Discharge Current:200A
Maximum Discharge Voltage(CC/CV):14.4V
CHARGE
Charge Method:CC/CV
Charge Voltage:14.4V 0.2V
Recommend Charge Current:50A (0.2C)
TEMPERATURE
Charge Temperature:32 to 131 (0 to 55)
Discharge Temperature:-4 to 140 (-20 to 60)
Storage Temperature:14 to 95 (-10 to 35)
SELF-HEATING
External Power Draw:100W
Internal Heating Starts:< 41 (5)
Internal Heating Stops:> 50 (10)
OTHERS
Net Battery Weight:52.9 lb
Dimensions (L*W*H):20.9 x 8.1 x 8.5in
Bluetooth Remote Monitoring:Supported
Housing Material:ABS (Flame Retardant Plastic)
Protection Class:IP55
Warranty:10 Years
Certifications:UL1973. FCC. UN38.3. ETL
What's in the Box:
1 x Alpha 2 Pro 12V 200Ah LiFePO4 Battery
1 x User Manual
