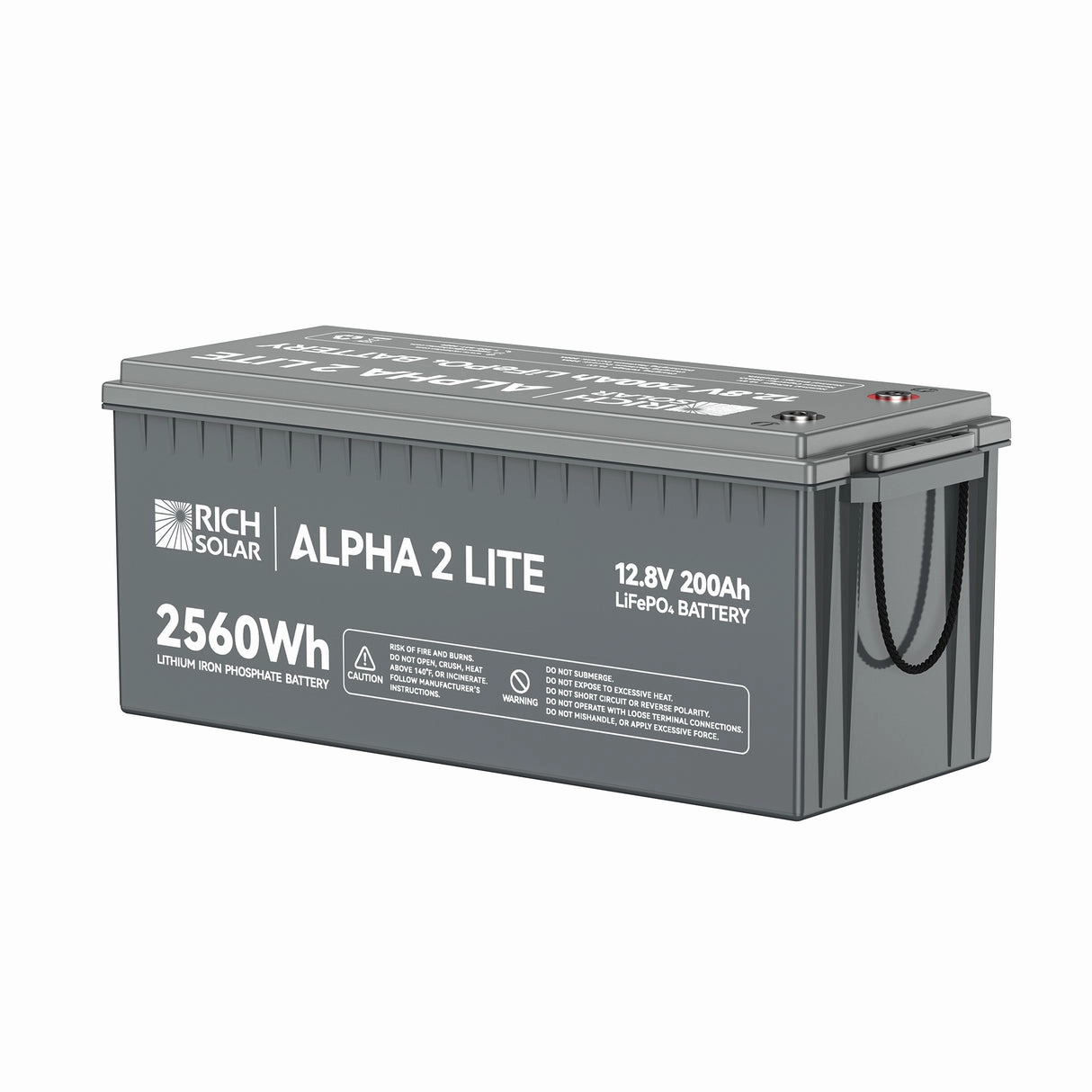

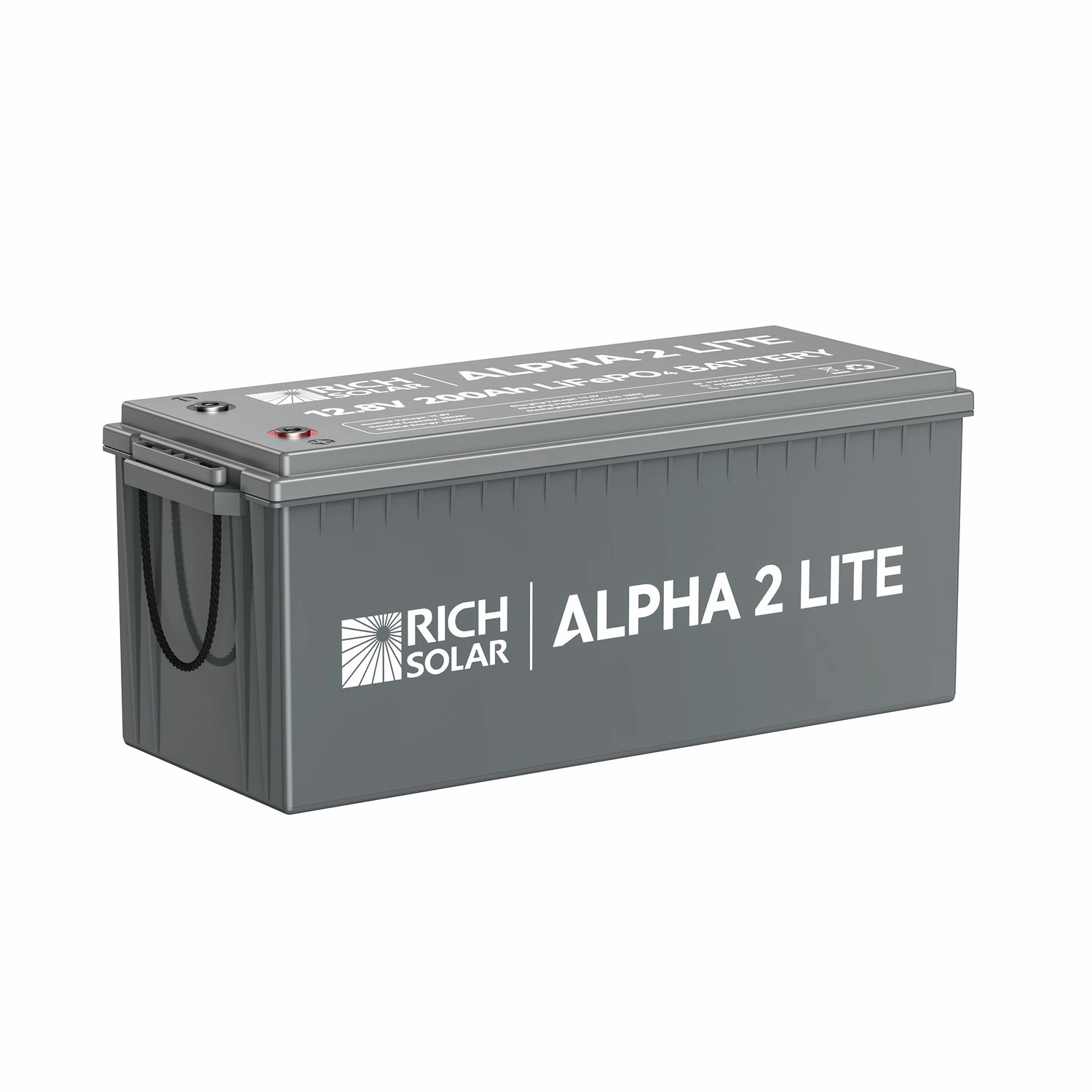

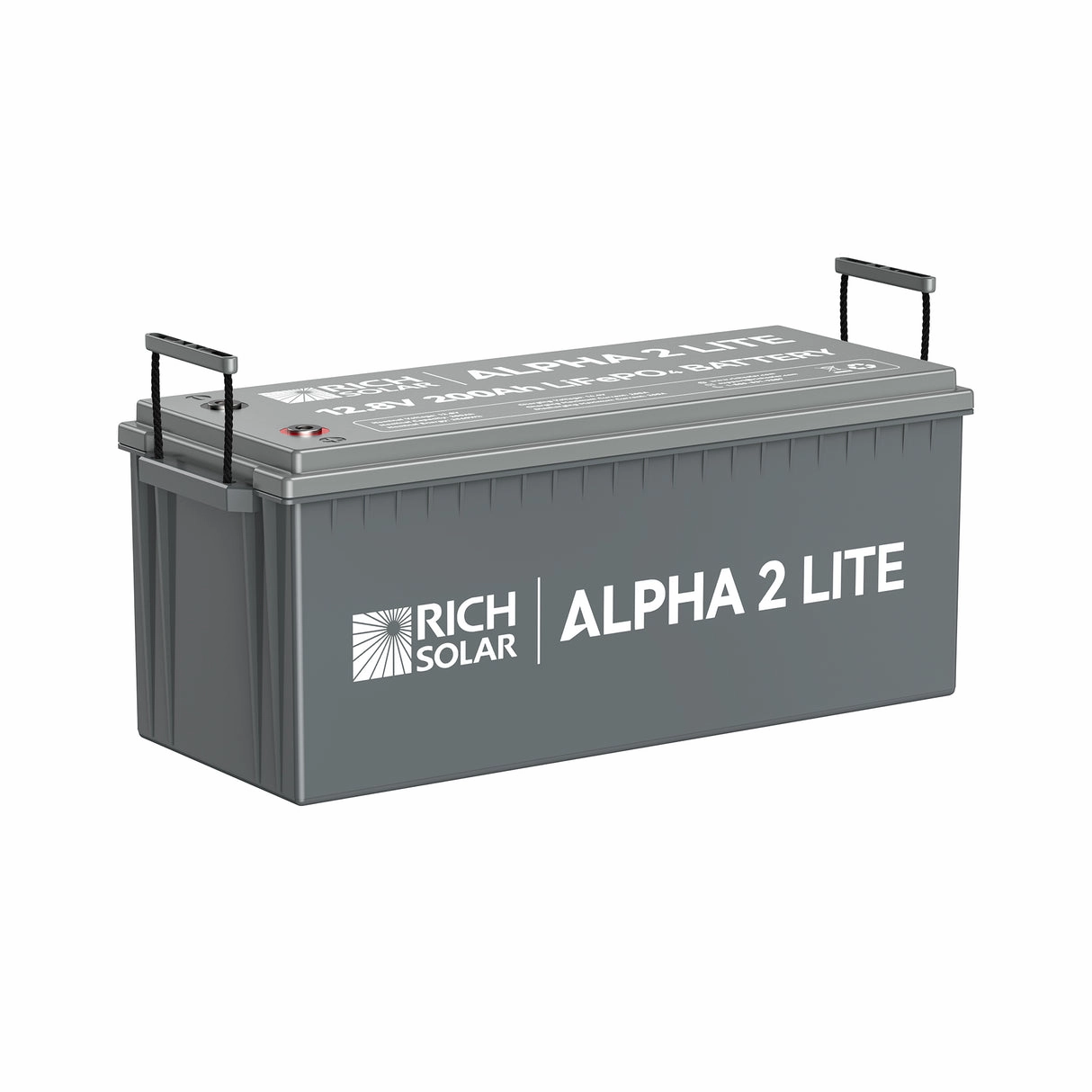

Rich Solar ALPHA 2 LITE | 12V 200Ah LiFePO4 Battery
Rich Solar ALPHA 2 LITE is a compact yet powerful 12V 200Ah LiFePO4 battery. your reliable power source for off-grid adventures designed exclusively for RVs. campers. cabins. boats and every bit of your crazy DIYs.
Light and compact. this durable energy storage solution is a robust construction to set up your backup generator or boondock in the middle of nowhere. Perfected to handle low-temp or over heat with equal elan. this 2560Wh battery boasts of an in-built BMS (Battery Management System) that keeps the functioning of battery protected against overcharge. overdischarge. overcurrent. low and high temperature fluctuations and short circuit.
Weighing 60% lighter than a 12V 100Ah lead-acid battery. ALPHA 2 LITE delivers a 10-year life span with over 4000 cycles of consistent performance with minimal maintenance.
Specifications:
BATTERY
Nominal Voltage:12.8V
Nominal Capacity:200Ah
Minimum Capacity:199Ah
Cycle Life:> 4000 cycles
Operating Specifications
Capacity:200Ah
Energy:2560 Watt Hours
Charge Voltage:14.4V
Continuous Discharge Current:200A
Self Discharge:< 5%/month
Temperature Performance
Charge Temperature:32 to 131 (0 to 55)
Discharge Temperature:-4 to 140 (-20 to 60)
Storage Temperature:14F-113F / -10~45 90RH Max (More than 3 months)
Physical Specifications
Battery Dimensions(L*W*H):20.9x8.1x8.5 in
Weight: 52.9 lb
BMS Operation
Over Charge Protection
Over charge detection voltage:3.75V0.03V
Over charge detection delay time:1000ms500ms
Over charge recovery voltage:3.55V (Min 3.40V. Max 3.60V)
Over Discharge Protection
Over discharge detection voltage:2.20V0.08V
Over discharge detection delay time:1000ms500ms
Over discharge recovery voltage:2.70V0.10V
Short Circuit Protection
Warranty: 5-year warranty
What's in the Box:
1 x ALPHA 2 LITE 12V 200Ah LiFePO4 Battery
1 x User Manual
