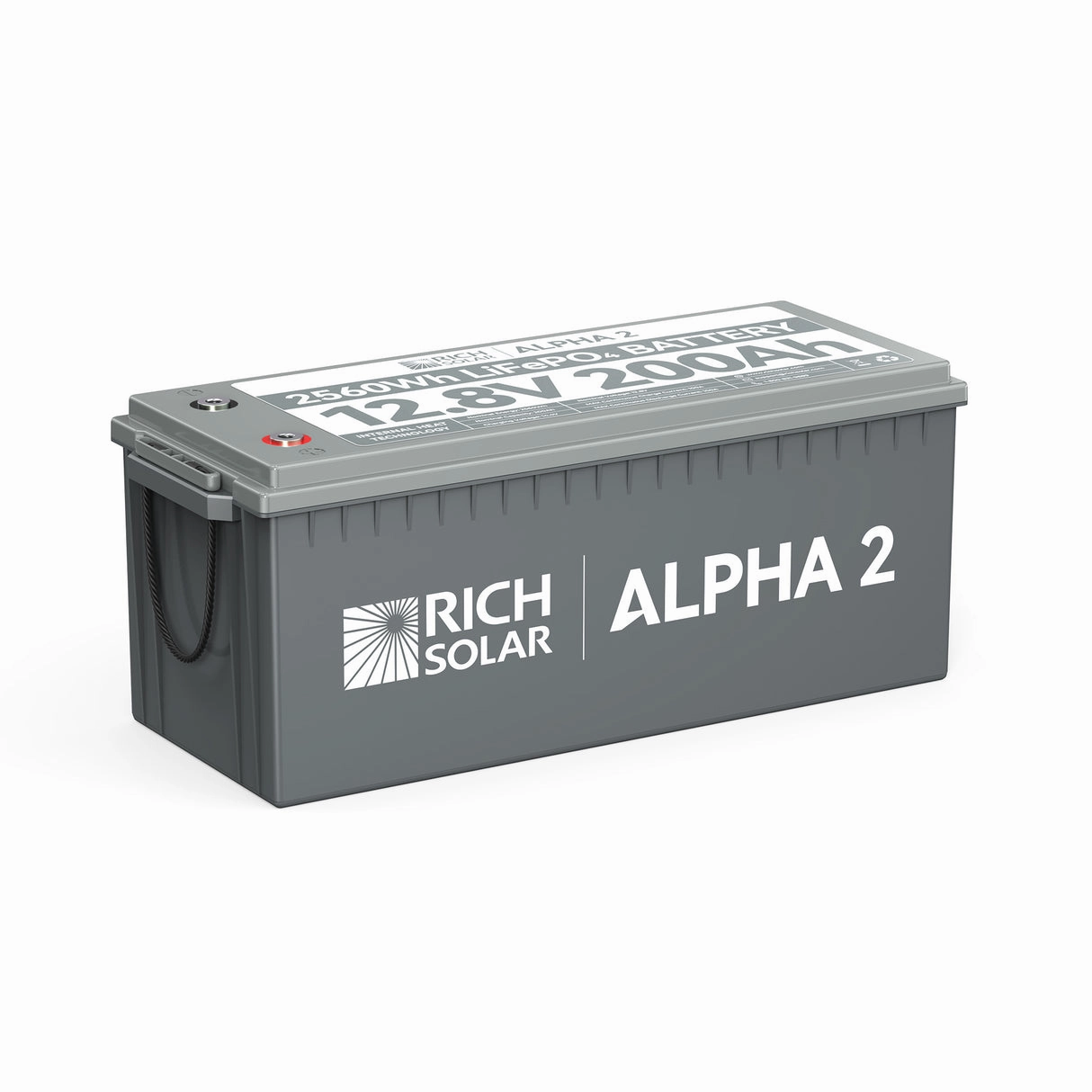

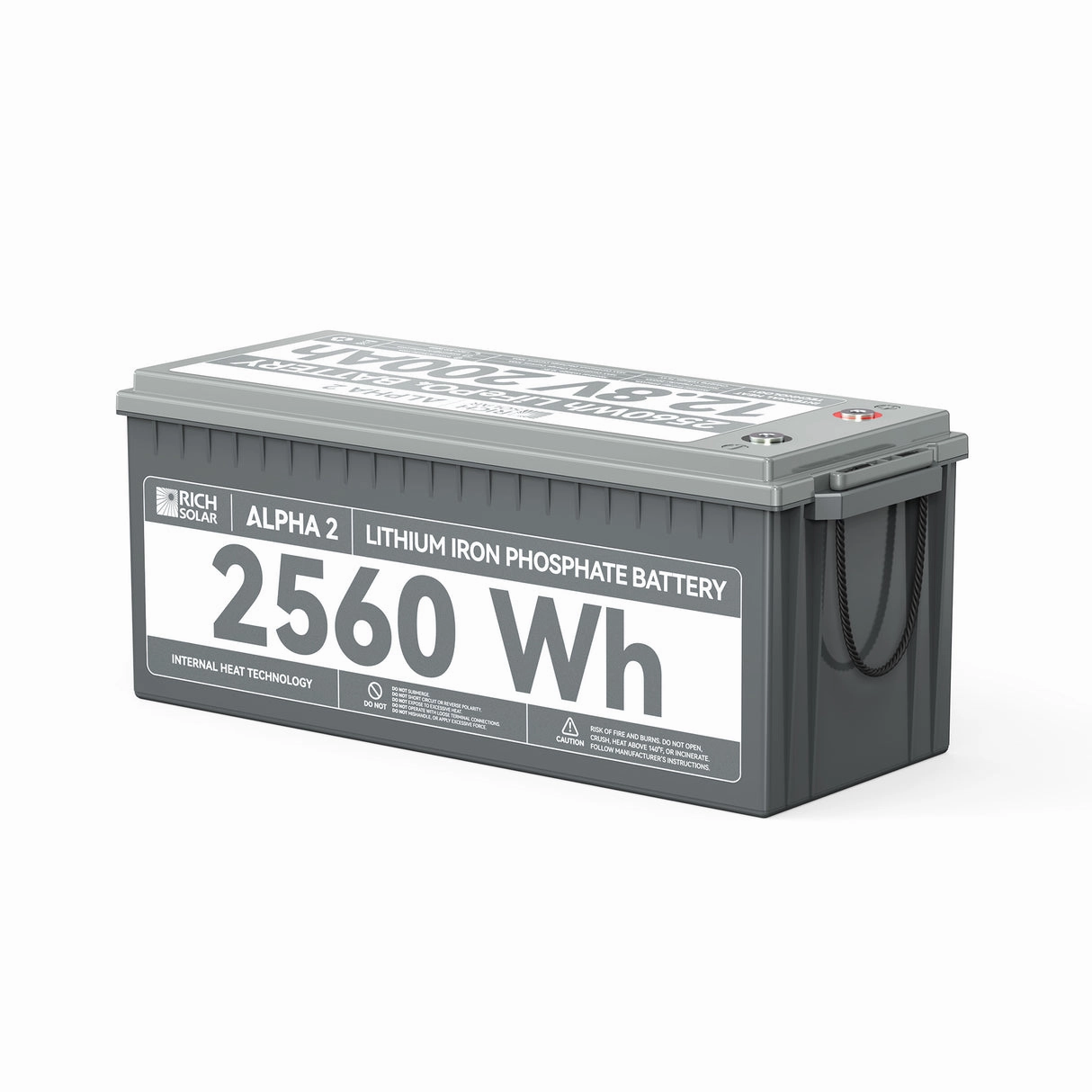

Rich Solar ALPHA 2 | 12V 200Ah LiFePO4 Battery
Gift your RV the power of ALPHA 2. a 12V 200Ah LiFePO4 battery from the house of Rich Solar. a lithium iron phosphate battery perfected to power your off-grid adventures with 2560Wh energy running over 5000 lifetime cycles with consistent performance.
Built to power your off-grid living dreams. ALPHA 2 features 12.8V nominal voltage with an internal heat tech in place to protect the battery in extreme weather conditions by automatically turning internal heat on/off.
A smart power solution. ALPHA 2 with its built-in Bluetooth module lets you monitor the battery operation status on your mobile device in real time.
Specifications:
BATTERY
Cell Type: LiFePO4 Battery
Nominal Voltage:12.8V
Nominal Capacity:200Ah
Nominal Energy:2560Wh
Cycle Life:5000 cycles
Maximum Expansion (Parallel & Series):4P4S
BMS
BMS:100A
Maximum Charging Current:100A
Maximum Continuous Discharge Current:100A
Maximum Discharge Current 10 Seconds:110A
CHARGE
Charge Method:CC/CV
Charge Voltage:14.4V 0.2V
Recommend Charge Current:50A (0.2C)
TEMPERATURE
Charge Temperature:32 to 131 (0 to 55)
Discharge Temperature:-4 to 140 (-20 to 60)
Storage Temperature:14 to 113 (-10 to 45)
SELF-HEATING
External Power Draw:100W
Internal Heating Starts:< 41 (5)
Internal Heating Stops:> 50 (10)
OTHERS
Net Battery Weight:48.5lb
Dimensions (L*W*H):20.9 x 8.1 x 8.5in (Group 31 size)
Housing Material:ABS (Flame Retardant Plastic)
Protection Class:IP65
Warranty:5 Years
What's in the Box:
1 x ALPHA 2 12V 200Ah LiFePO4 Battery
1 x User Manual
