Rich Solar ALPHA 1 PRO | 12V 100Ah LiFePO4 Battery
ALPHA 1 PRO is a charming 12V 100Ah LiFePO4 battery from Rich Solar. built to power your off-grid adventures perfected for boats. RVs. cabins. campers and crazy DIYs. this lithium iron phosphate battery generates 1280Wh of energy for a good 7000 lifetime cycles. yet delivers consistent and durable performance every single time.

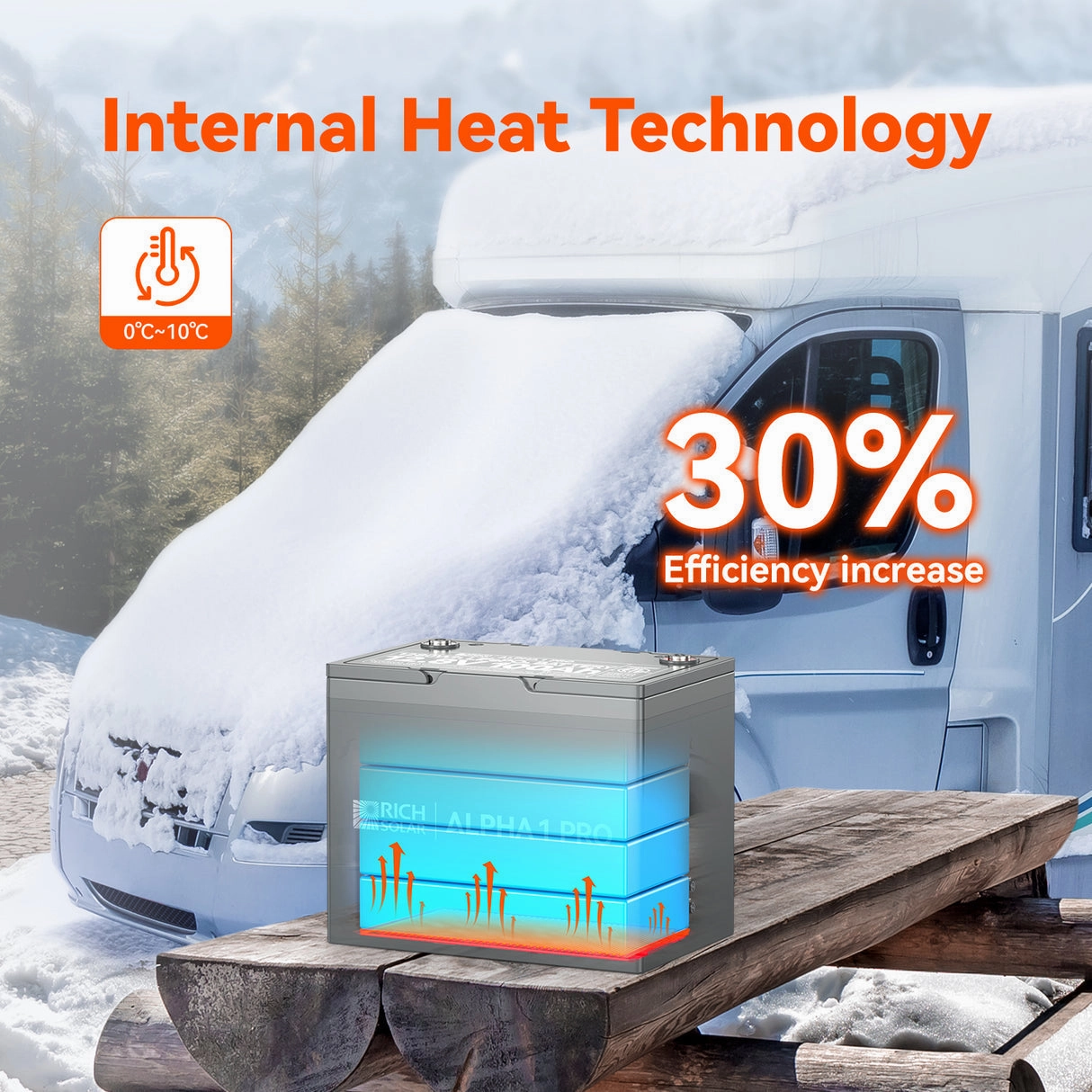

The robust construction coupled with internal heating protects the battery in extreme low-temperatures by automatically triggering the internal heat once the temp drops down below 5-degree C and shuts off the heat once the internal temp reaches 10-degree C. thus ensuring a consistent performance at all times.
Designed with a Battery Management System (BMS) in place. ALPHA 1 PRO with its high quality industrial grade A battery cells. responds intuitively to protect battery from overcharge. over discharge. overcurrent. low and high temp fluctuations and short circuit.

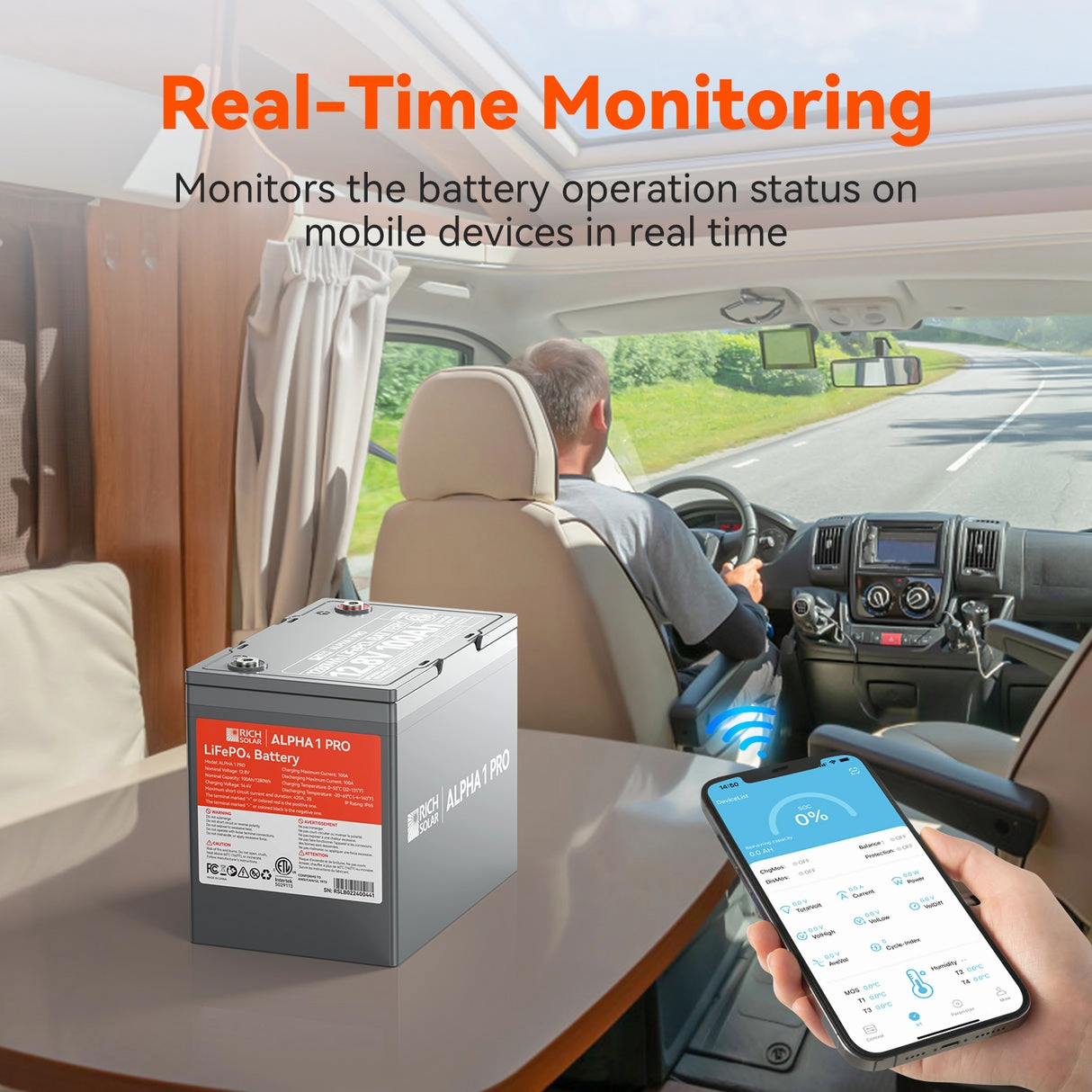

Monitor the battery operation status and performance of ALPHA 1 PRO via your mobile device in real time thanks to its in-built Bluetooth module.
Specifications:
BATTERY
Cell Type: LiFePO4 Battery
Nominal Voltage:12.8V
Nominal Capacity:100Ah
Nominal Energy:1280Wh
Cycle Life:7000 cycles
Maximum Expansion (Parallel & Series):4P4S
BMS
BMS:100A
Maximum Charging Current:100A
Maximum Continuous Discharge Current:100A
Maximum Discharge Current 10 Seconds:110A
CHARGE
Charge Method:CC/CV
Charge Voltage:14.4V 0.2V
Recommend Charge Current:50A (0.2C)
TEMPERATURE
Charge Temperature:32 to 131 (0 to 55)
Discharge Temperature:-4 to 140 (-20 to 60)
Storage Temperature:14 to 95 (-10 to 35)
SELF-HEATING
External Power Draw:100W
Internal Heating Starts:< 41 (5)
Internal Heating Stops:> 50 (10)
OTHERS
Net Battery Weight:24.0lb
Dimensions (L*W*H):10.2 x 6.6 x 8.3in (Group 24 size)
Housing Material:ABS (Flame Retardant Plastic)
Protection Class:IP65
Warranty:10 Years
Certifications:UL1973. FCC. UN38.3. ETL
What's in the Box:
1 x ALPHA 1 PRO 12V 100Ah LiFePO4 battery
1 x User Manual
