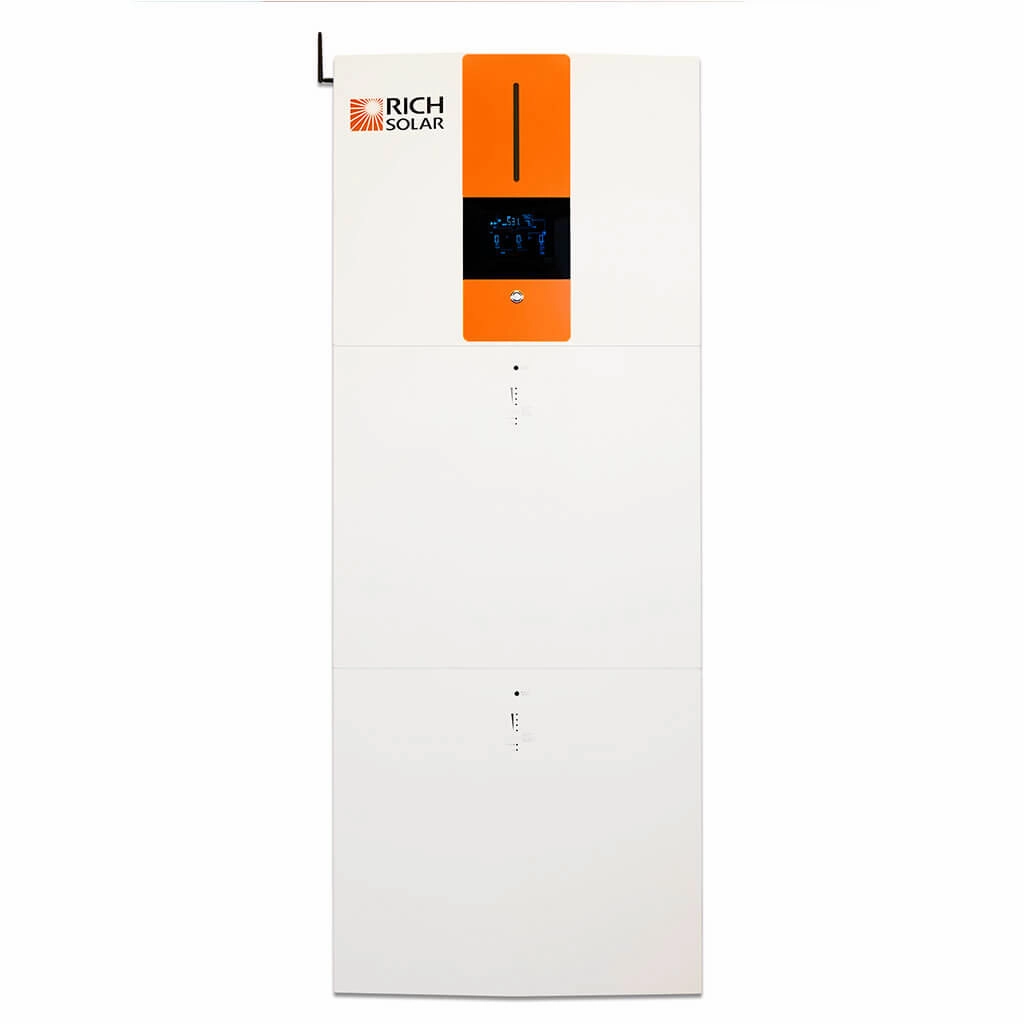

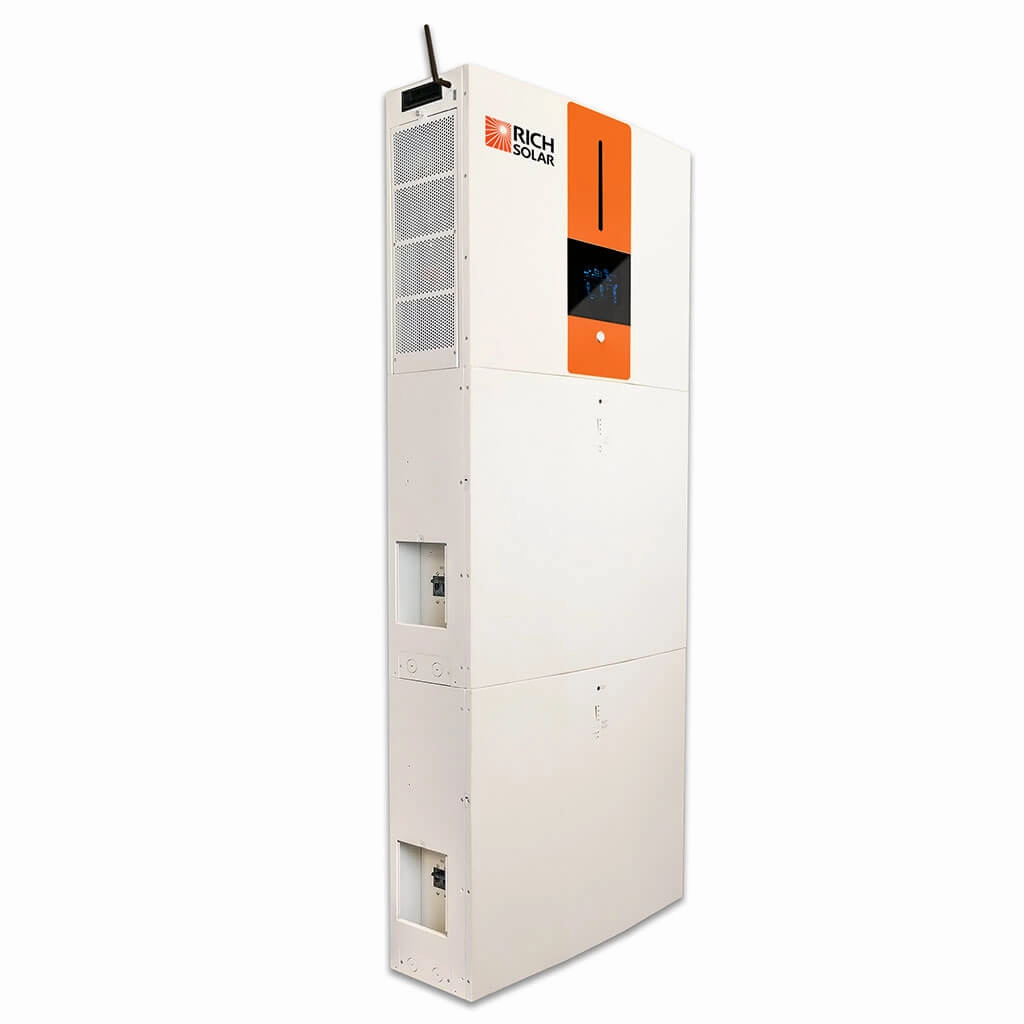

Rich Solar All-in-One Energy Storage System
Gift your home the ultimate All-in-One Energy Storage System from Rich Solar. a fully integrated solar power generation unit including an inverter. batteries and solar charge controller built into a compact. single unit.
An attractive. space saving module designed for those with limited space or looking for discreet installation. this energy storage system needs no extensive wiring or complicated infrastructure to deliver reliable electricity.
Boasting of an optimal PV input power of 8000W and rated output power of 6500W. give wings to you off-grid lifestyle with this energy bank that stores and supplies pure solar energy for all your power needs.
The energy system allows programmable supply priority for PV. battery or grids and users can always adjust the battery charging current to match their needs. A battery independent design. you can monitor the real time operation status and parameters via App designed for both android and iOS.
Unlike any solar energy storage system seen before. Rich Solar system boasts of 2 built-in MPPT trackers and AC/Solar charger up to 120A. Compatible with utility and generator. Rich Solar energy storage system is scalable with Li-ion battery to expand your energy limits beyond dreams.
Specifications:
BATTERY INFO
Model:RS-A10
Maximum PV Input Power:8000W
Rated Output Power:6500W
Maximum Charging Power:6500W
PV INPUT (DC)
MPPT Range @ Operating Voltage:90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage:250 VDC/p>
Maximum Solar Charge Current:120A
Number of MPP Trackers / Maximum Input Current:2 / 2 x 18 A
AC INPUT
Acceptable Input Voltage Range:90-140 VAC (For Computers)80-140 VAC (For Home Appliances)
Maximum AC Input Current:60A
BATTERY MODE OUTPUT
Nominal Output Voltage:120 VAC
Maximum Conversion Efficiency (DC/AC): 93%
BATTERY
Nominal DC Voltage:48 VDC
Maximum Charging Current:120 A
Dimension:(D x W x H): 8.4 x 24.4 x 19.7
Net Weight:99 lb
Capacity:5120Wh
Nominal Voltage:51.2VDC
Full Charge Voltage(FC):56V
Full Discharge Voltage(FD):42V
Typical Capacity:100 Ah
Max Continuous Discharging Current:120A
Max Discharging Current:192A at 1 min
Protection:BMS. Breaker
Float Charge Voltage:52.5V
Charge Current:20A (0.2C)
Maximum Charge current:50A (0.5C)
Standard Charge method:0.2C CC (Constant current) charge to FC. CV (Constant voltage FC) charge till charge current declines to <0.05C
Inner Resistance:=20m ohm
ALL IN ONE SYSTEM PHYSICAL
System Dimension (D X W X H):19.7 x 26 x 49.2
Net Weight:287 lb
STANDARD
Compliance Safety:IEC 62619. EN 61000-6-3. EN 61000-6-1. UKCA. UN38.3. UL 1741. CSA C22.2 No.107.1-16. FCC PART 15B
What's in the Box:
1 x All-in-One Energy Storage System
1 x User Manual
