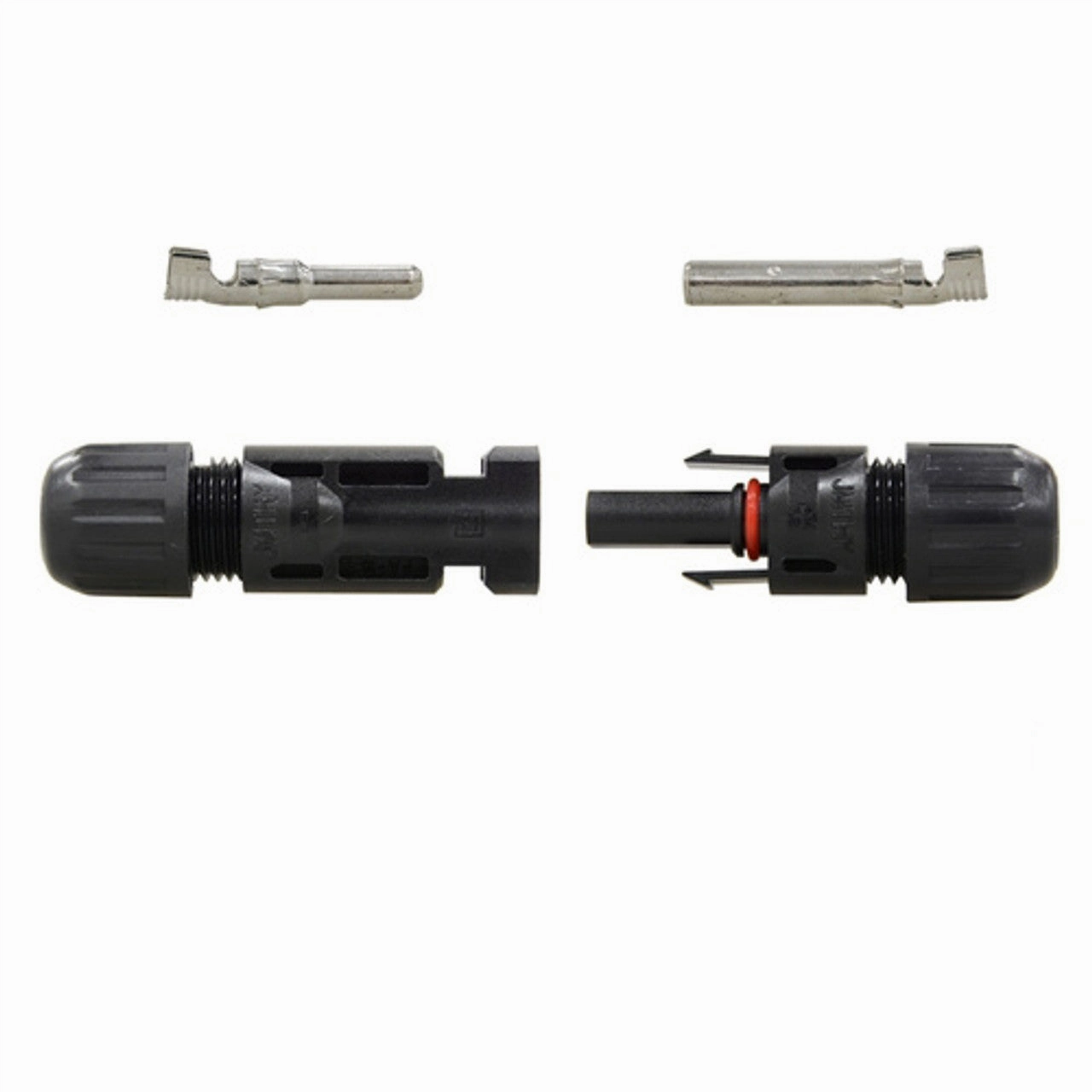

Renogy RNG-CNCT-MC4x5 - RENOGY 5 Pair MC4 Male/Female Solar Panel Cable Connectors Double Seal Rings for Better Waterproof Effect

Specially designed to connect photovoltaic solar systems that are subject to harsh weather and have severe mechanical requirements. the Renogy RNG-CNCT-MC4x5 is ideal for long-term installations.

Built with the finest grade materials. the Renogy Solar Cable Connectors are stronger and heavier. guaranteeing long-term dependability and performance. These connections are made to finish off a photovoltaic (PV) array. usually in parallel settings. In addition. these connectors are dust-resistant and waterproof.

SPECIFICATIONS:

5 Pairs of Solar Panel Cable Connectors

Rated Current: 30A

Wiring Size Range: 10. 12 AWG

Contact Material: Silver Plated Copper

Insulation Material: PA/PC

Two silver-plated copper

Contact Resistance: < 0.5m

Maximum Voltage: 1000VDC

Temperature: -40F to 194F

Protection Class: IP67

Warranty Accessories: 1-Year Material Warranty

WHAT'S IN THE BOX:

5 Pairs x Solar Connectors for Solar Panels Male & Female
