Makeblock mBot Ranger Robot Kit (Bluetooth version)

Overview

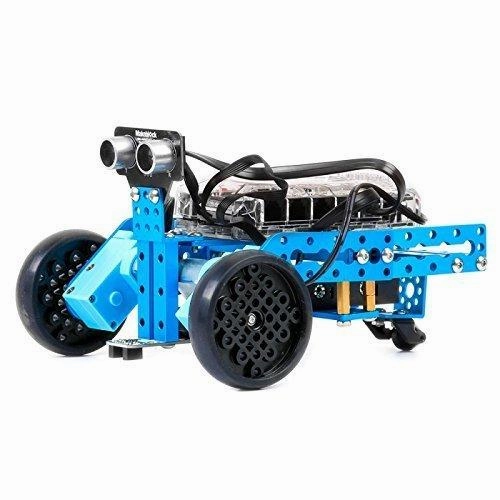

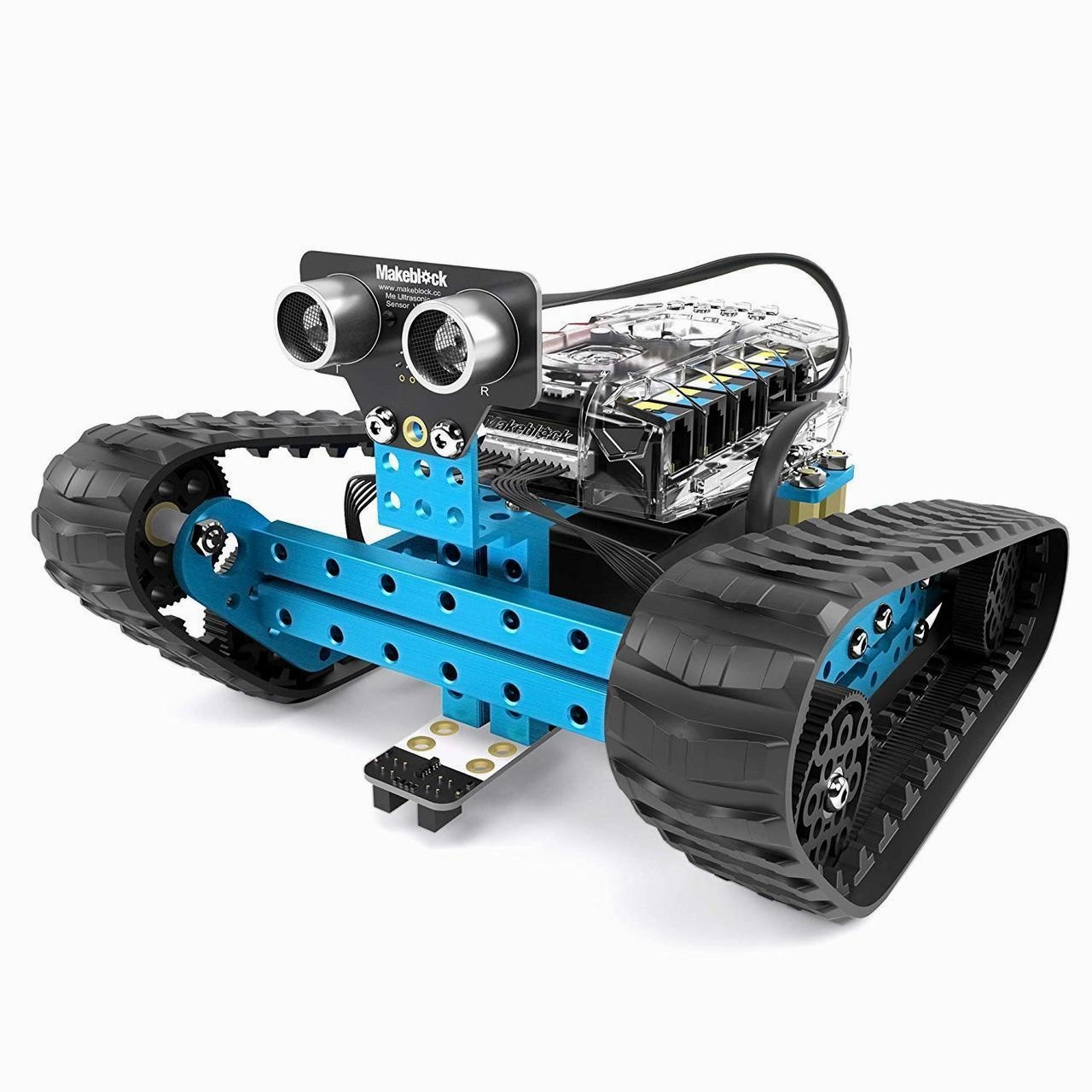

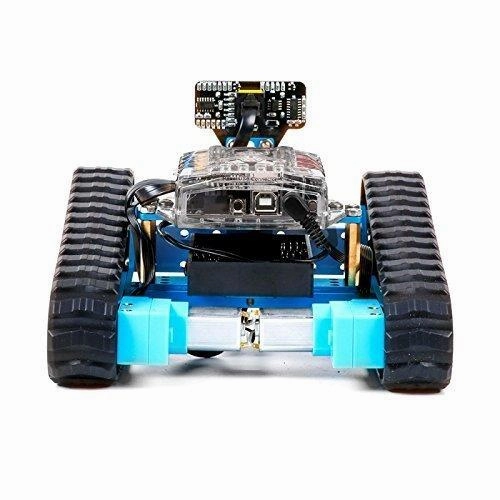

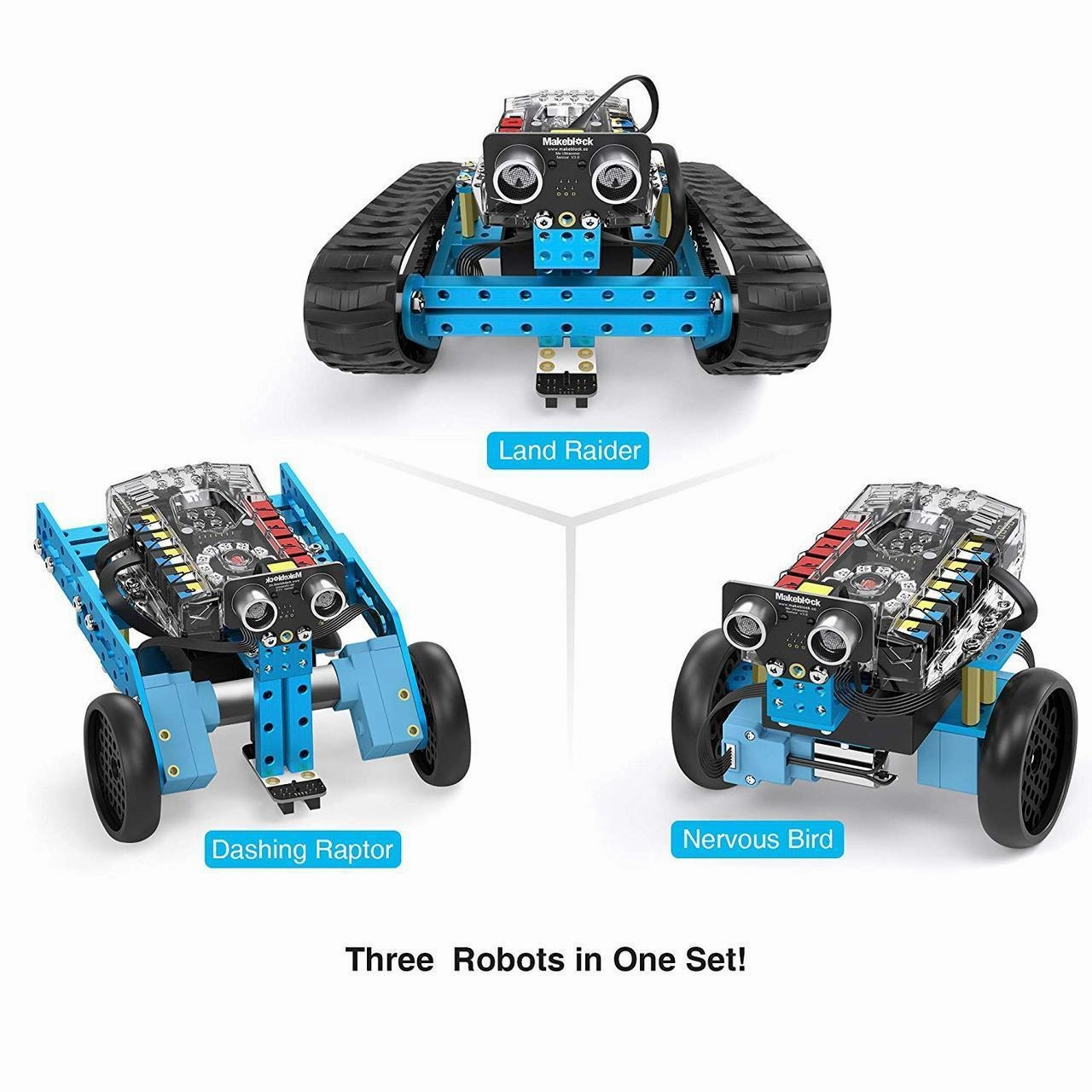

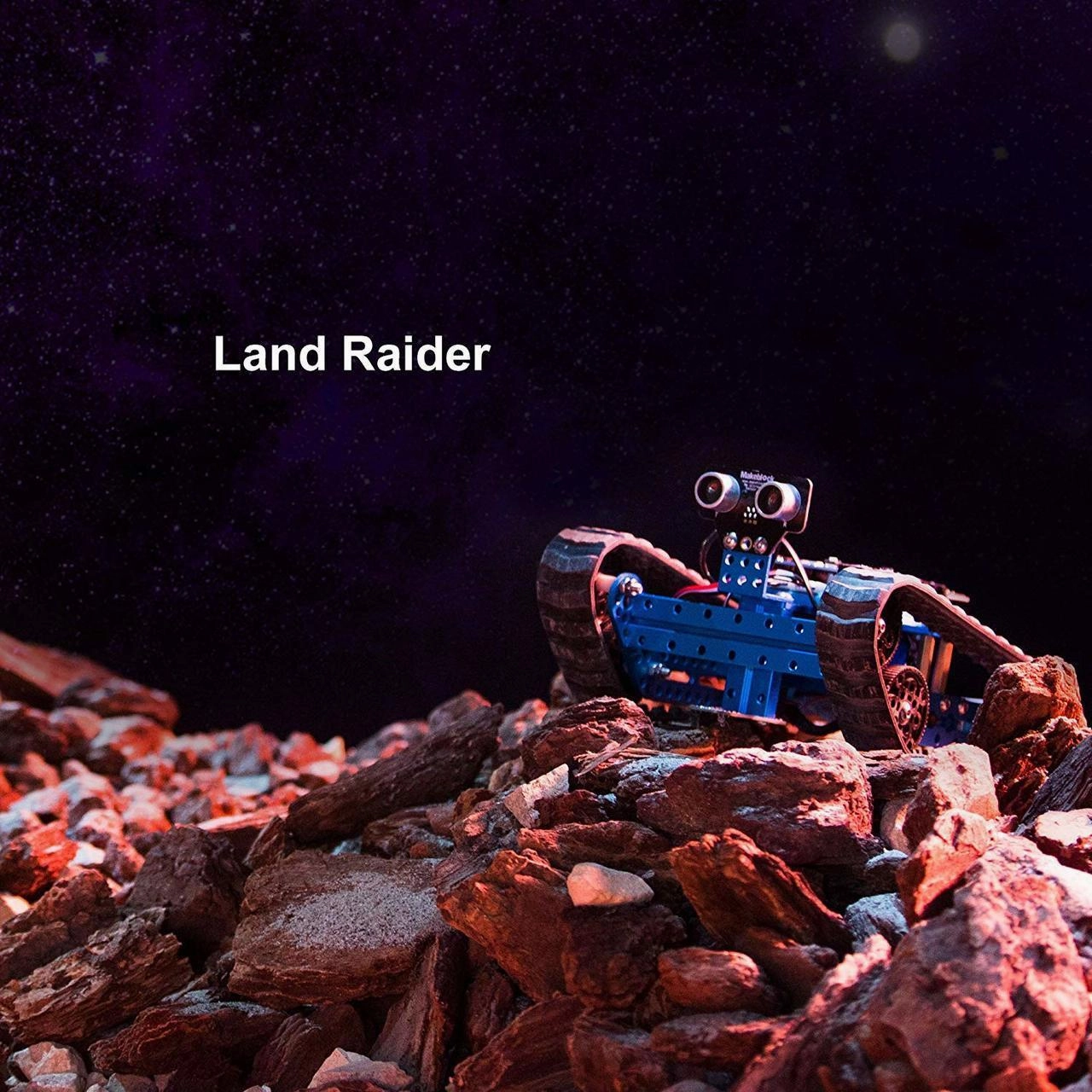

mBot Ranger can conquer any terrain thanks to its 3 preset forms: the tank-like Off-road Land Raider. the three-wheel racing car Dashing Raptor. and the Self-balancing Nervous Bird. Its broad range of sensors (Light. Temperature. Sound. Ultrasonic. Line Follower and Gyroscope) allows this robot to perform a variety of functions including data collection. line following and obstacle avoidance.

Software

All Makeblock robots can be controlled and programmed by a standard app that also comes with 3D Model Modelling Tutorials. Multiple Control Modes and Lots of Add-on Packs. If you are coding for the first time there is a game-based app for robotics programming learning with project-based free creative approach. But if you are getting serious about programming there is a powerful tool for coding designed for STEM education that gets you to learn the basis of Python programming language.

FAQ

Can mBot Ranger connect directly to my phone via Bluetooth?

Yes. it connects directly with your phone or iPad via Bluetooth.

Does the coding software need to be purchased?

No separate purchase is required. you can download software from our website for free.

Does any warranty come with mBot Ranger? How long is the warranty period?

mBot Ranger comes with a warranty for electronic parts. the warranty is for 6 months. while for electrical parts. the warranty is for 2 months. Other parts (structural parts. consumables and batteries). however. are not covered by any warranty but can be replaced if damaged.

Why doesn't my mBot Ranger respond when powered on?

The possible reasons and solutions are as follow:
1. The supplied voltage may be too low to run the robot. Please charge the battery or replace with a fresh one.
2. The wires of the Motor Connector may be broken. Please try to replace the wires with new ones.
3. Try to reset your mBot Ranger to factory defaults.

When I control the Ranger to move forward or right. it moves backwards or left. How can I fix it?

1. Swap the place of the M1 and M2 interface cables that are connected to the motors. See if your Ranger is now moving according to your controls.
2. If not. reset your mBot Ranger to factory defaults using the latest version of mblock 5.

How do I know when the robot needs a new battery?

If any of the following happens. you will need to replace the battery:
1. If the Land Raider or Dashing Raptor moves very slowly or restarts itself while turning or bumping against objects.
2. If the Land Raider or Dashing Raptor remains motionless even if you set the motor speed to high speed.

What can I do if Self-Balancing Car doesn't work normally (for example. if it fails to balance or doesn't smoothly respond to commands)?

The possible reasons and solutions are as follow:
1. Please check if the battery charge level is sufficient; if not. replace it.
2. Please check if the Self-Balancing Car is correctly assembled. Confirm that all the wheels are assembled correctly and that there is nothing obstructing its movements.

You can find user manual here.
