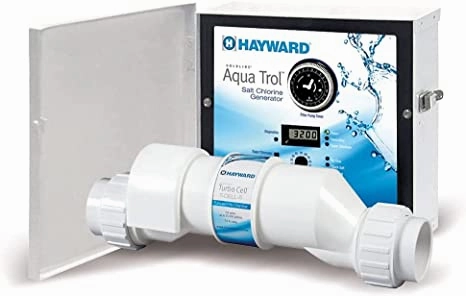

Hayward AquaTrol Return Jet Fittings. Twist Lock

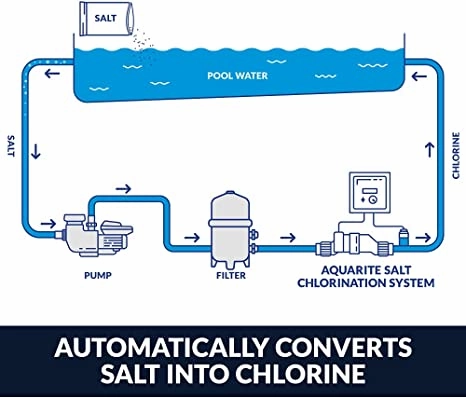

Designed for pools of up to 18.000 gallons. the Hayward AquaTrol Electronic Chlorine Generator. also known as the Salt Generator. produces less chlorine than the Aqua Rite but has all the same features and capabilities. It also includes an integrated time clock for controlling the pool filtration pump. Built with an outlet (timer controlled) for the filter pump to hook into as many above-ground pools. the AquaTrol already has one single electrical outlet for the filter pump and then plugs into the original outlet the filter pump was using.

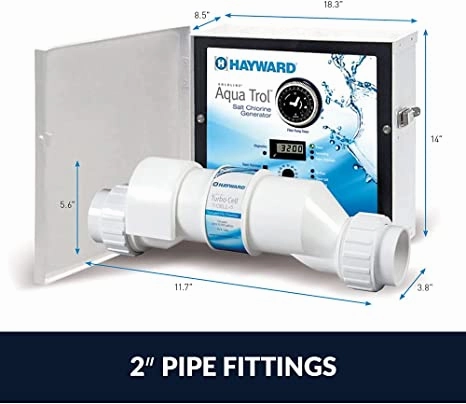

The AquaTrol system is very simple to use and often installs in less than 30 minutes.To make installation on a range of above-ground pools simple. the Aqua Trol comes with several alternative options. When the -HP option is selected. the cell may be installed directly to the pool return jet. or it may be linked via a 112 - 114 flexible hose or to 2 rigid PVC pipe. The electrical connections can be made using a 120V/20A twist lock line cord and receptacle when the -TL version is ordered. or they can be made using a 120V/15A straight blade line cord and receptacle (basic AquaTrol version. no option designation).

• Quick and Easy 30 minute installation
• The best water quality attainable
• soft silky feel
• no more red eyes or dry skin
• always crystal clear and ready for swimming
• Digital salt display and 7 diagnostic indicators
• Selectable super chlorinate function
• 24 Hour timer for filter pump control
• allows multiple pump periods per day
• program in 15 minute increments
• manual switch (ON-Auto-OFF)
• Microprocessor automates all functions
• Automatically cleans the cell by periodically reversing polarity
• Patented Turbo Cell for maximum efficiency and flow rate
• UL and CUL Listed

SPECIFICATIONS:

Pool Size: 18.000 Gallons

Application: Above Ground

Ctn. Weight: 25 lbs.

Fitting: Return Jet Fittings

Chord Type: Twist Lock Line Chord and Outlet

Warranty: 1-Year Limited Warranty

WHAT'S IN THE BOX:

1 x Hayward AquaTrol Return Jet Fittings. Twist Lock
