BougeRV Solar Connectors kits (6Pairs Male/Female &1 pair of spanners)

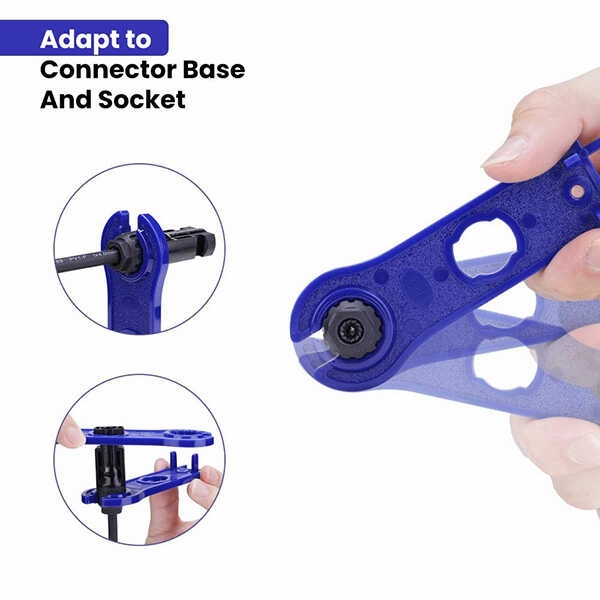

A 6 pair solar connector kit with spanners to put them in place. the BougeRV Solar Connectors Kits is a perfect addition to your solar system. Simple to assemble and unplug. the connectors and spanners are made of highest quality materials for long-term durability.

The built-in shrink ring combined with IP67 waterproofing tightly seals the contraptionarresting even the tiniest bit of leakage of power.

Specifications:

Rated Current: 20A (4mm)

Rated Voltage: DC1000V

Contact Resistance: 5m

Insulation Resistance: >500m

Operating Temperature range: -40 until 90

Degree of Protection: IP67

Flame Class: UL94-V0

Safety Degree:

Adapter Wire: OD 5mm-7mm

Insertion Force: <=50N

Withdrawal Force: >=50N

Suitable Cable: AWG 14/13/12/11/10

Connector Conductor Material: Copper. Tin

What's in the Box:

6 x Male Solar Connectors (with solar connector pins)

6 x Female Solar Connectors (with solar connector pins)

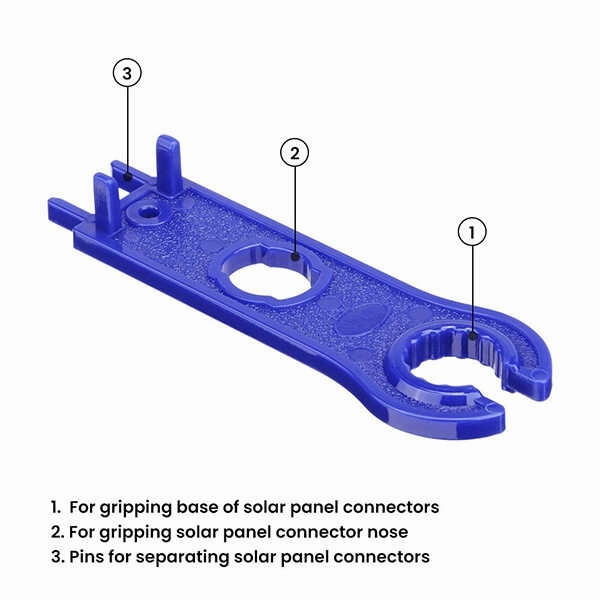

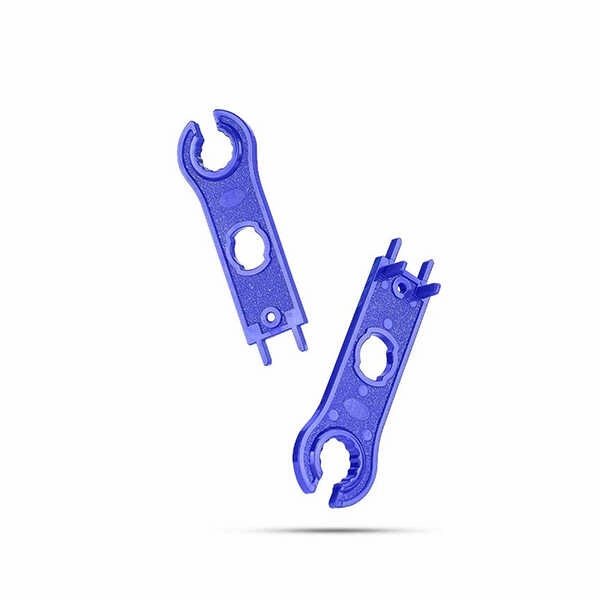

2 x Solar Connector Spanners
