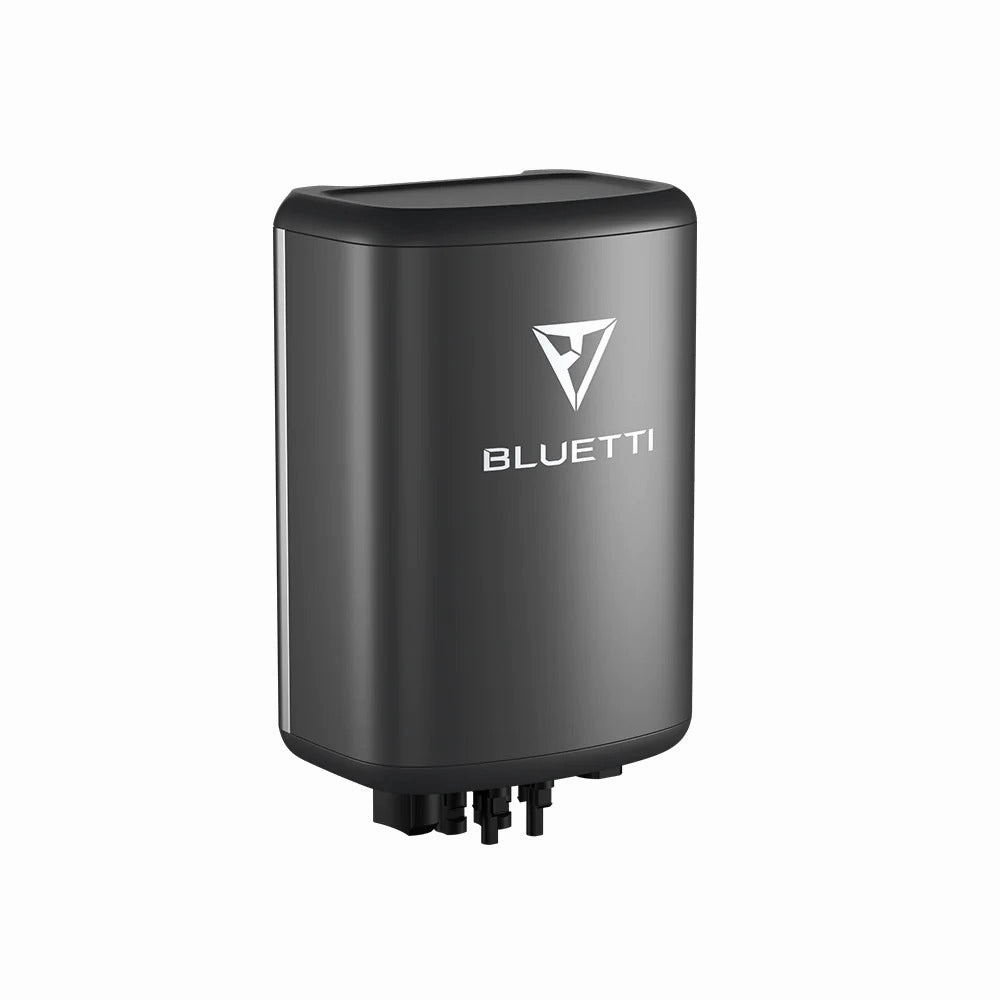

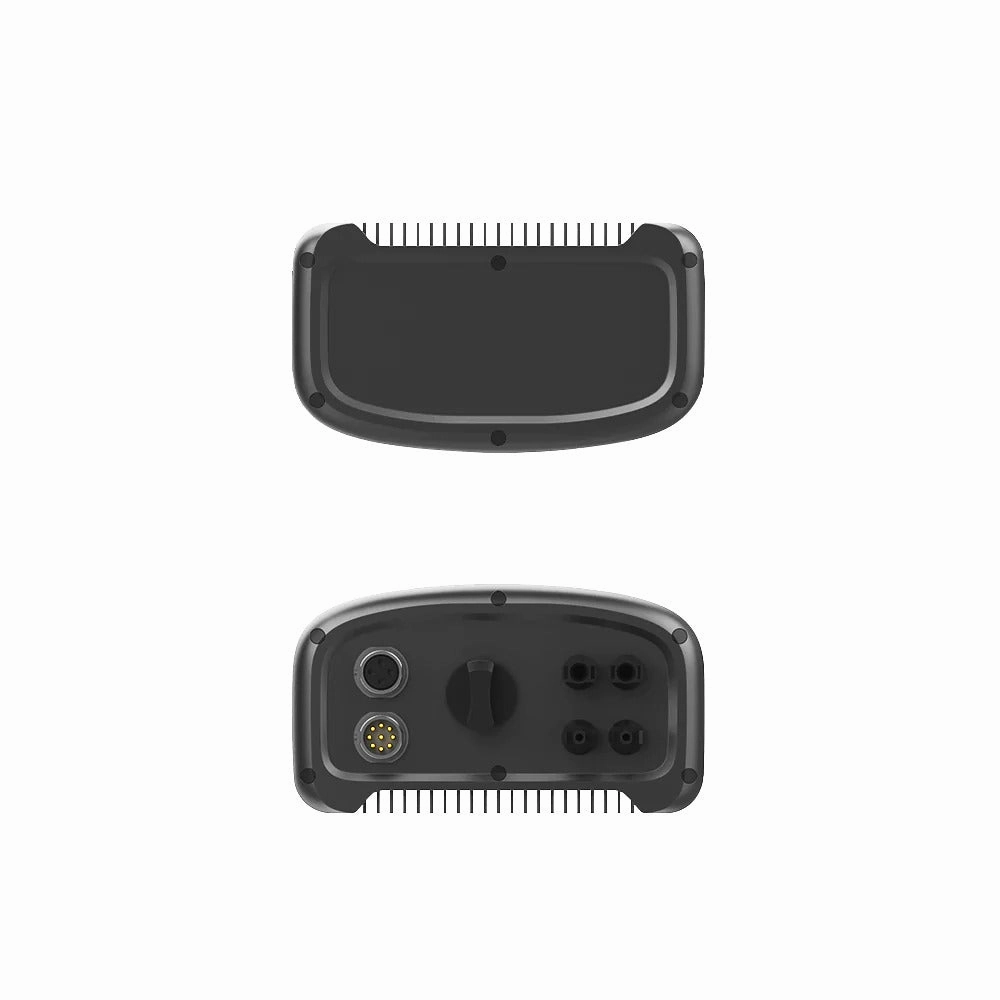

Bluetti PV VOLTAGE STEP DOWN MODULE (D300S)
Applicable Models: AC300/EP500/EP500Pro
D300S created to allow your EP500/Pro. AC300 to have a chance to connect with Roof/Rigid panels for 2400W Max. Solar charging. especially users who already have installed rigid solar panels and PV grid-connected inverters. and the solar panel array's total open-circuit voltage exceeds the EP500/Pro. AC300 input limit (140V/150V). D300S will be perfect to adjust the total voltage and match the input requirements of EP500/Pro. AC300.
Main features:
* Step down the voltage of rigid panels to 120V from 550V
* Support 3000W Max input
* 3000W Max output
* IP54- 1x D300S PV Drop Down Module
1xDC Output Cable (Aviation to MC4*2)
1x User Manual
1x Warranty Card
1x Certificate of QC Pass - DC Output
Power of Output:
3000W
Voltage:
65V to 135V
Current:
Up to 26A
Short Circuit Protection:
Supported
PV Input
Power of Input:
3000W
MPPT Voltage:
120V to 500V
Current:
Up to 15A
Dual MPPT:
Supported
Internal Over-Heated:
85C
Radiator Over-Heated:
95C
Short Circuit Protection:
Supported
Max Efficiency:
97.8%
Output Over-Voltage Protection:
>140VDC
Ambient Temp:
-10C to 40C
Storage Temp:
-20C to 40C
Altitude:
< 2000m
Protection Level:
IP54
Dimensions:
350*216*120mm/13.7*8.5*4.7in
Net Weight:
7KG/15.4lb
