While we canship Bluetti products to Hawaii and Alaska. Bluetti does not provide after sales services in those regions. Therefore we kindly recommend buying a CPS Accidental Warranty when shipping to Hawaii or Alaska.

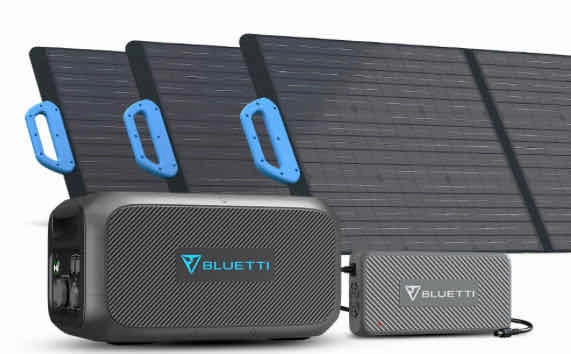

BluettiD050S 3 x PV200 1 x B230 Solar Generator Kit

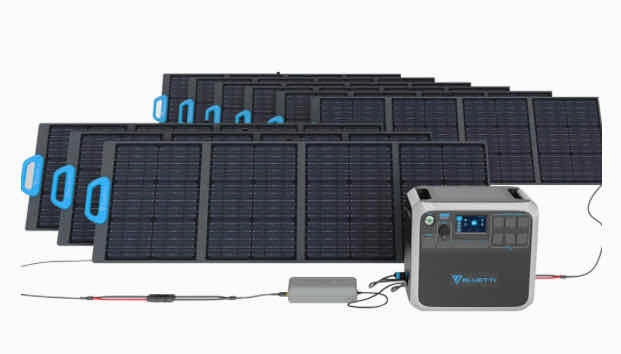

With the help of our new DC Enhancer. you can now increase the overall capacity of previous BLUETTI models like the AC200/P by connecting the latest BLUETTI battery modules.
Alternatively. you can even charge the EB240/EB150/B300/B230 via the 12V/24V cigarette lighter port in your car or lead-acid batteries.
The B230 Expansion Battery Module is a compact and portable battery that you can connect to the AC200MAX for extra storage space.
Ithas a 2.048Wh capacity. Thanks toa 100W USB-C. a 12V/10A car output. and a USB-A port. you can charge your road trip essentials such as smartphones. laptops. cameras. fans. lights. and so on.
BLUETTI PV200 is a 200-Watt monocrystalline solar panel with a high conversion efficiency of up to 23.4%. With excellent 95% transparency. it performs better than polycrystalline solar panels in low-light conditions and much higher than the market's average.- 1x D050S
- 1 xSolarCharging Cable (XT90-F to MC4)
- 1 x Car Charging Cable (XT90-F to CigaretteLighter Plug)
- 1 x B230 Battery Pack
- 3 x PV 200W Solar Panel
- 1 x Battery Expansion Cable (PO90A)
- 1x PV Charging Cable (XT90 - MC4)
- 1x User Manual
- 1X Warranty Card
- x Certificate of QC PASS
D050S
Ingress Protection LV
IP20
DC Input
12-60 VDC. 10A MAX
DC Output
15-58.8 VDC. 8.2A MAX. 500W MAX
EnvironmentalRequirements
Working temperature: -10-40C (14-104F)
Storage Temperature: -20-40C (-4-104F)
B230 Solar Panel:
Capacity:
2048Wh
Cell Chemistry:
Lithium Iron Phosphate(LiFePO4)
Lifecycle:
3500 (to 80%).6000 (to 50%)
Shelf-Life
Charge Every 3-6 Months
PORTS
AC Output:
500W
USB Output:
1*18W USB-A
1*100W USB-C
DC Output:
1*12V/10A Cigarette Lighter Port
Solar Input:
Max 10A(Via BLUETTI D050S)
Car Input:
12/24V.8.2A(Via BLUETTI D050S)
EnvironmentalRequirements:
Storate Temperature: 20-40(-4-104)
Charge Temperature: 0-40 (32-104)
Discharge Temperature:-20-40(-4-104)
GENERAL
Weight:
21.8Kg/48lbs
Dimensions (LxWxD):
16.5*11*8.9 inch
Operating Usage Temperature:
0-40C/32F-104F
Certification:
CEC. DOE. FCC. QC3.0. CA Prop 65
Warranty:
24 Months
PV200:
Peak Power:
200W
Solar Cell lamination:
ETFE
Cell Efficiency:
Up to 23.4%
Voltage at Max Power:
20.5V
Current at Max Power:
9.7A
Open Circuit Voltage:
26.1V
Short Circuit Current:
10.3A
Operation Temperature:
-10C to 65C
Best Working Temperature:
25C
Folding Number:
4
Dimensions Unfolded:
23.2 x 89.2inch
Dimensions Folded:
23.2 x 24.8 inch
SKU:
D050S 3PV200 B230
UPC:
193022000254
6970991290336
6970991290411
