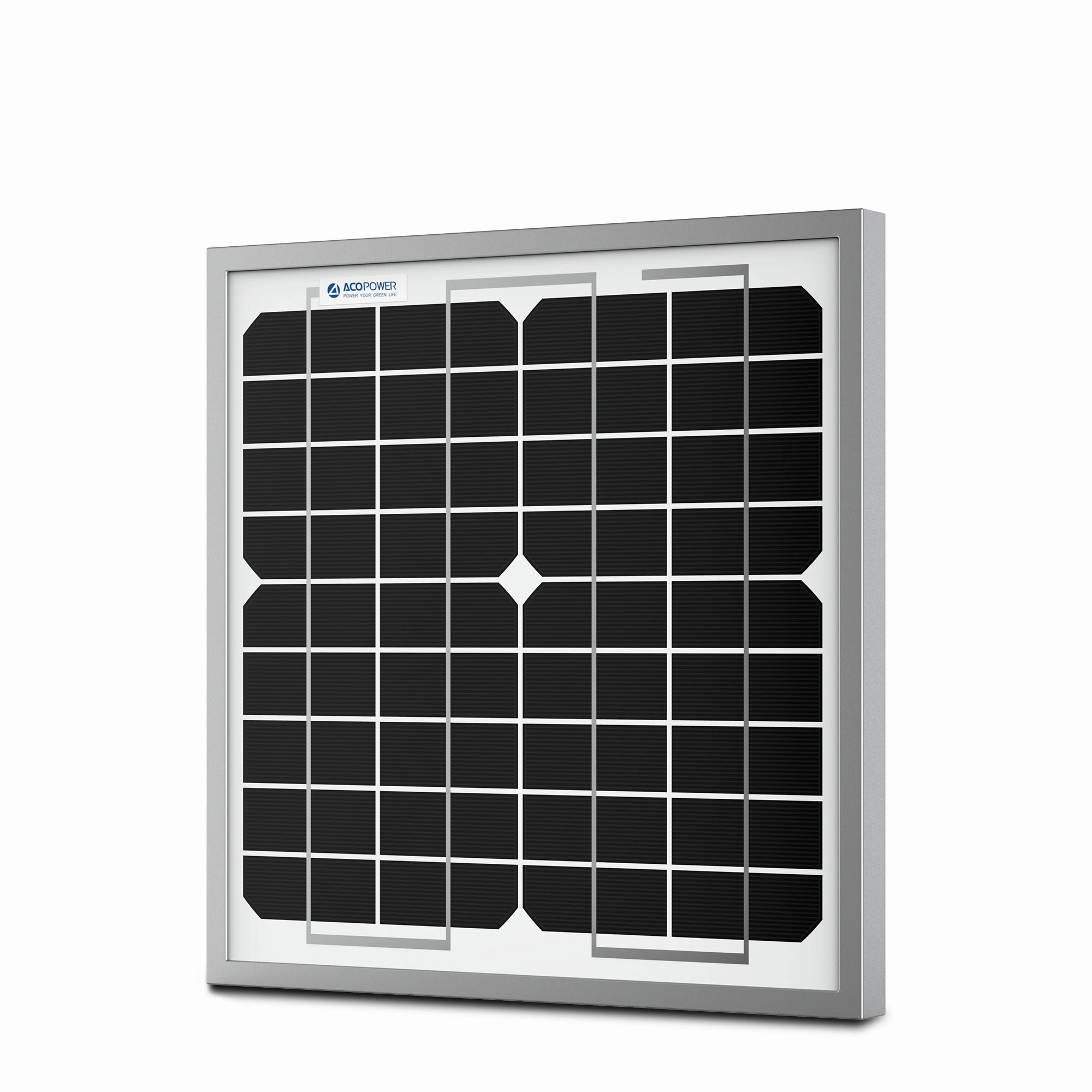

Acopower Mono Modules 10W

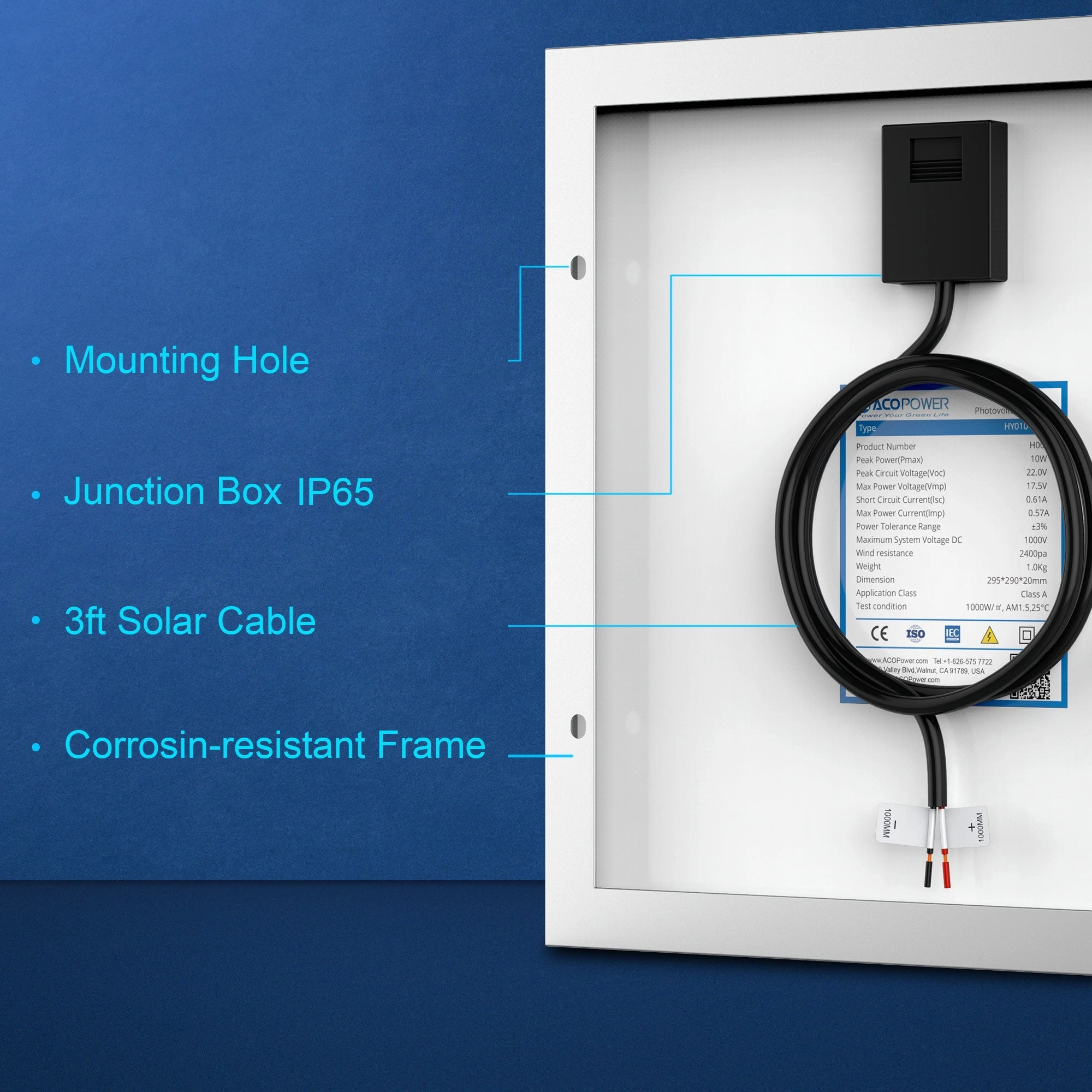

Tap into nature's most powerful energy source with Acopower Mono Modules 10W. a 10W monocrystalline photovoltaic PV solar panel moduleto charge your 12V battery. Complex engineering simplified for solar newbies. this ready-to-use panel comes with pre-drilled holes for easy installation.

Enjoy 10W of continuous power with the high module conversion efficiency of 10W mono solar panel. This basic component for your 12V/24V/36V/48V solar system is perfected for RVs. cabins. boats. caravans. green house solar system and every other off-grid application you can every fantasize.

Specifications:

Peak Power (Pmax):10W

Short Circuit Current (Isc): 0.62A

Open circuit voltage (Voc): 21.88V

Optimum operating current (Imp): 0.57A

Optimum power voltage (Vmp): 17.5V

Weight: 2.6 lbs

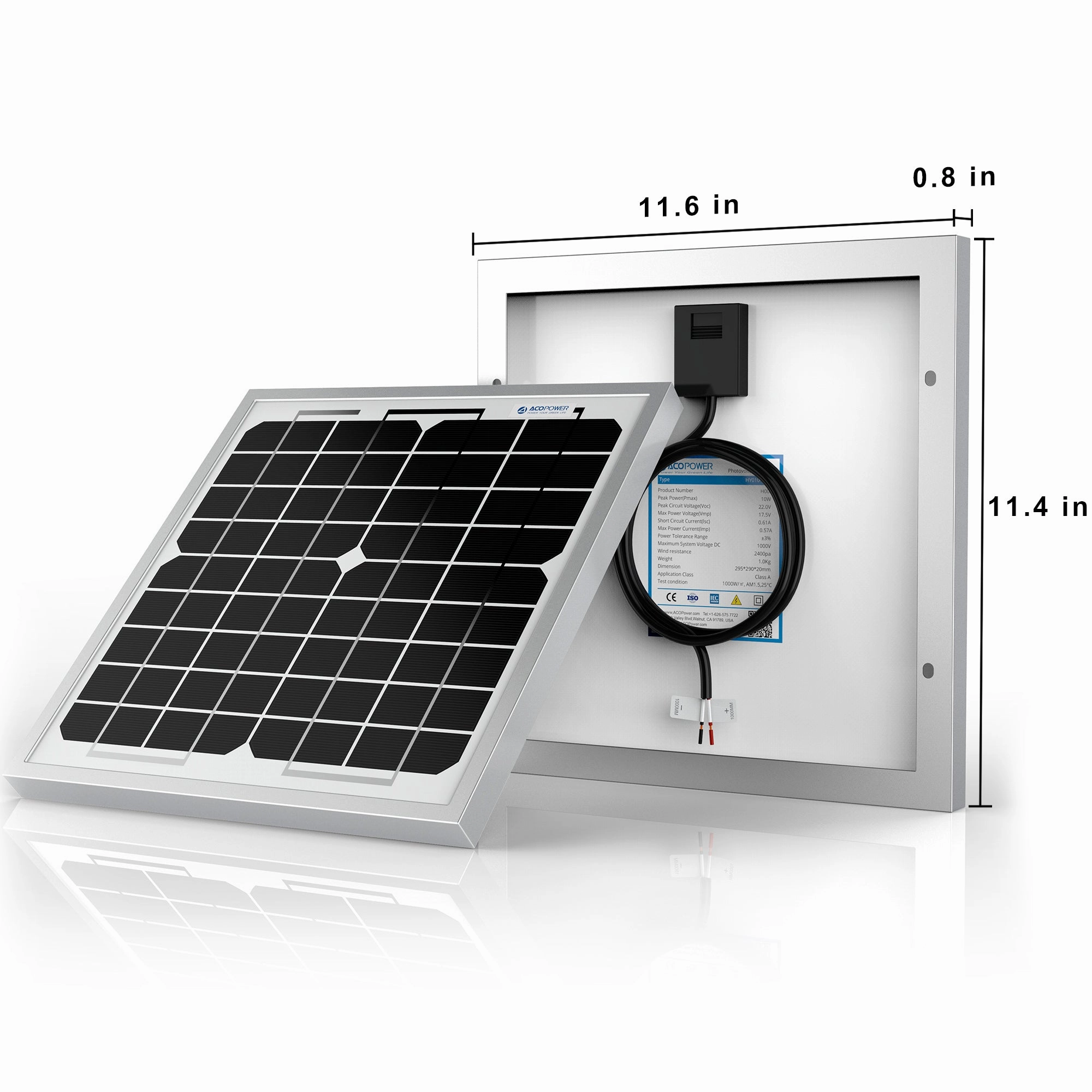

Dimensions: 11.6 x 11.4 x 0.8 in

All technical data at STC test condition: 1000W/m. Am=1.5. Module temperature 25

Power Tolerance Range: 3%

Maximum System Voltage DC: 1000V

Wind resistance: 2400Pa

What's in the Box:

1 x 10W Monocrystalline Photovoltaic Solar Panel

1 x User Manual
