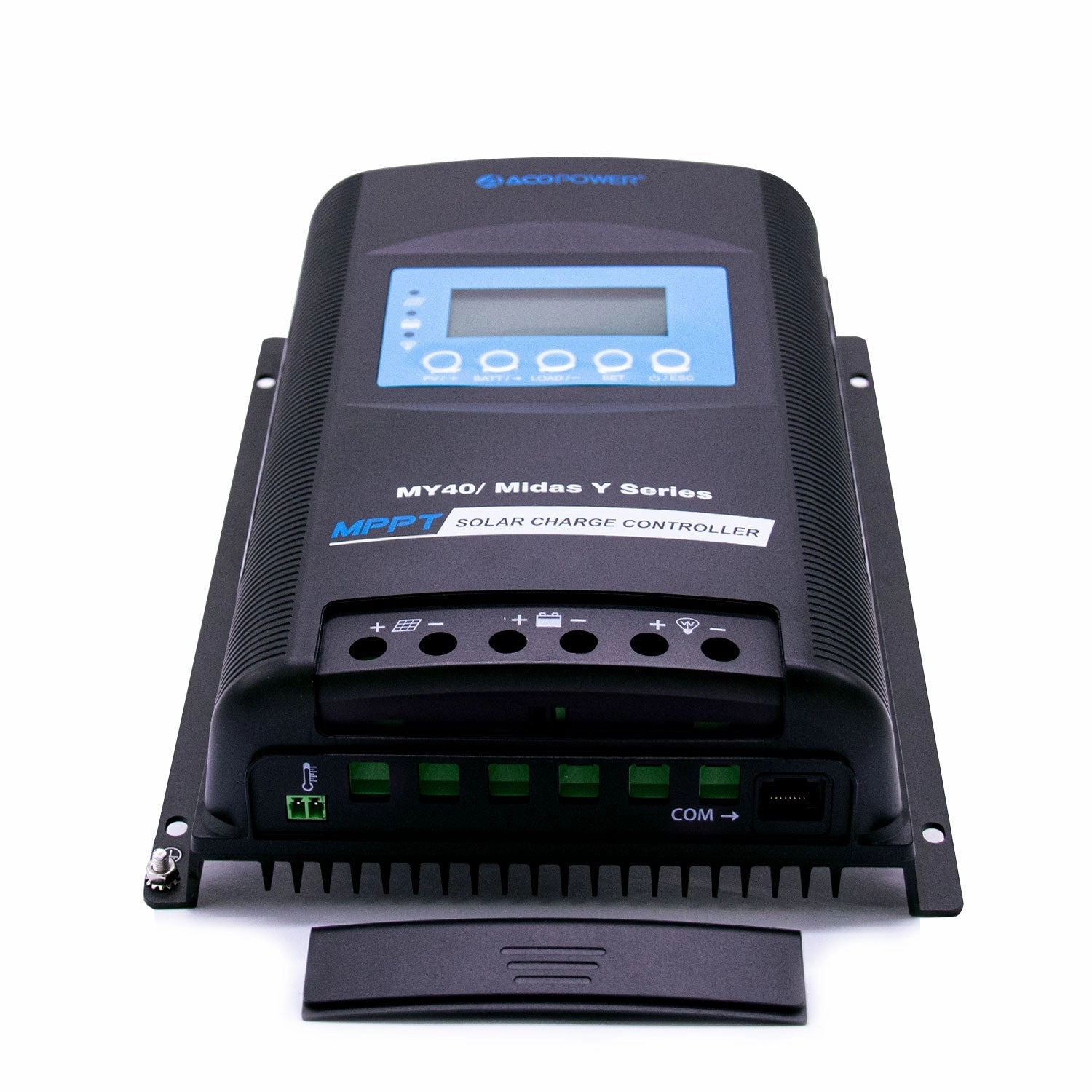

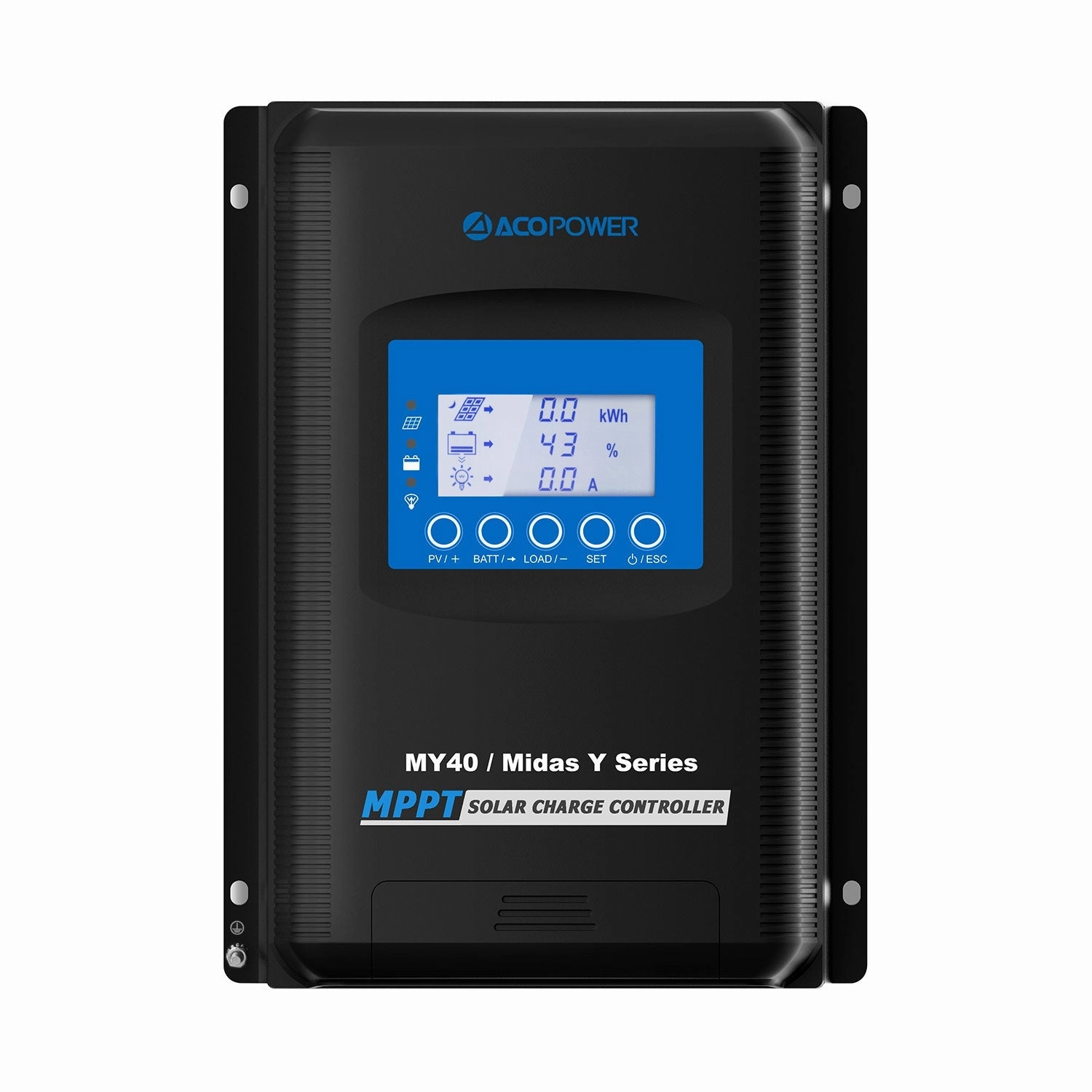

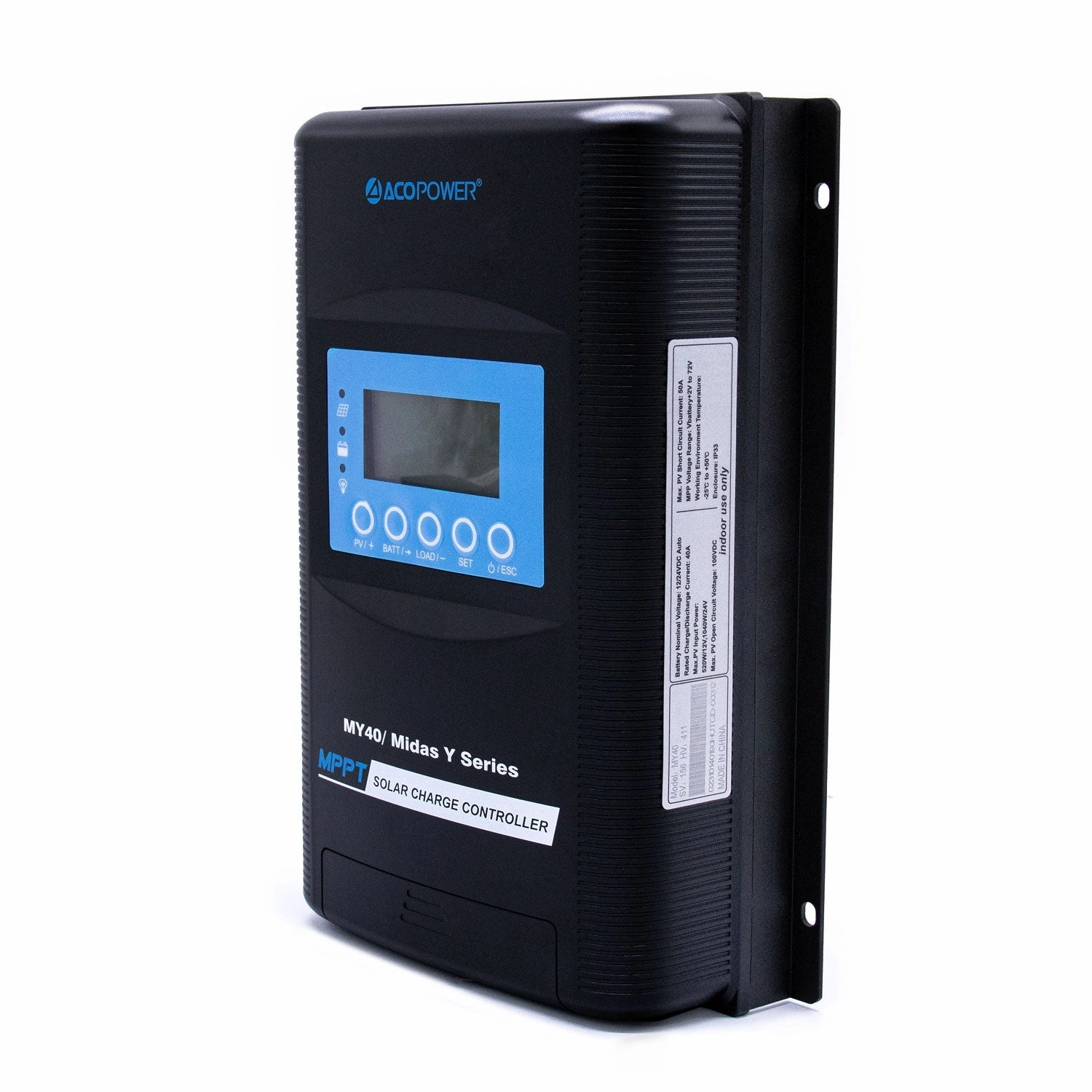

Acopower Midas 40A MPPT Negative Ground Solar Panel Charge Controller LCD Display
Planning an off-grid expedition with your reliable solar station? Equip yourself with the Acopower Midas 40A MPPT. a negative ground solar panel charge controller with an extra large and brighter LCD display. Built to last. this durable 40A MPPT is a simple plug and play controller that is compatible with any negative ground system.
Fitted with user-friendly. intuitive controls. Acopower's Midas 40A auto identifies 12V/24V DC system voltages. With a peak conversion efficiency of 98%. enjoy optimal power from your solar panels to your systems.
This MPPT controller is well-protected against reverse polarity. overcharging. over discharging. overload. short circuiting and reverse current. Optimized for an extended battery life and improved system performance. this charge controller includes 4 stage of battery charging - Bulk. Boost. Float and Equilization.
Midas 40A comes with a temperature sensor that automatically compensates temperature keeping your MPPT unit chilled out even at peak performance.
Specifications:
Nominal System Voltage: 12/24VDC Auto
Battery Input Voltage Range: 8V32V
Battery Type: 1. Lead-acid battery including Sealed (default). Gel. Flooded and User; 2. Lithium Battery including LiFePO4. Li and User
Rated Charge Current: 40A
Rated charge Power: 520W/12V 1040W/24V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
MPPT Voltage Range: (Battery Voltage 2V) ~72V

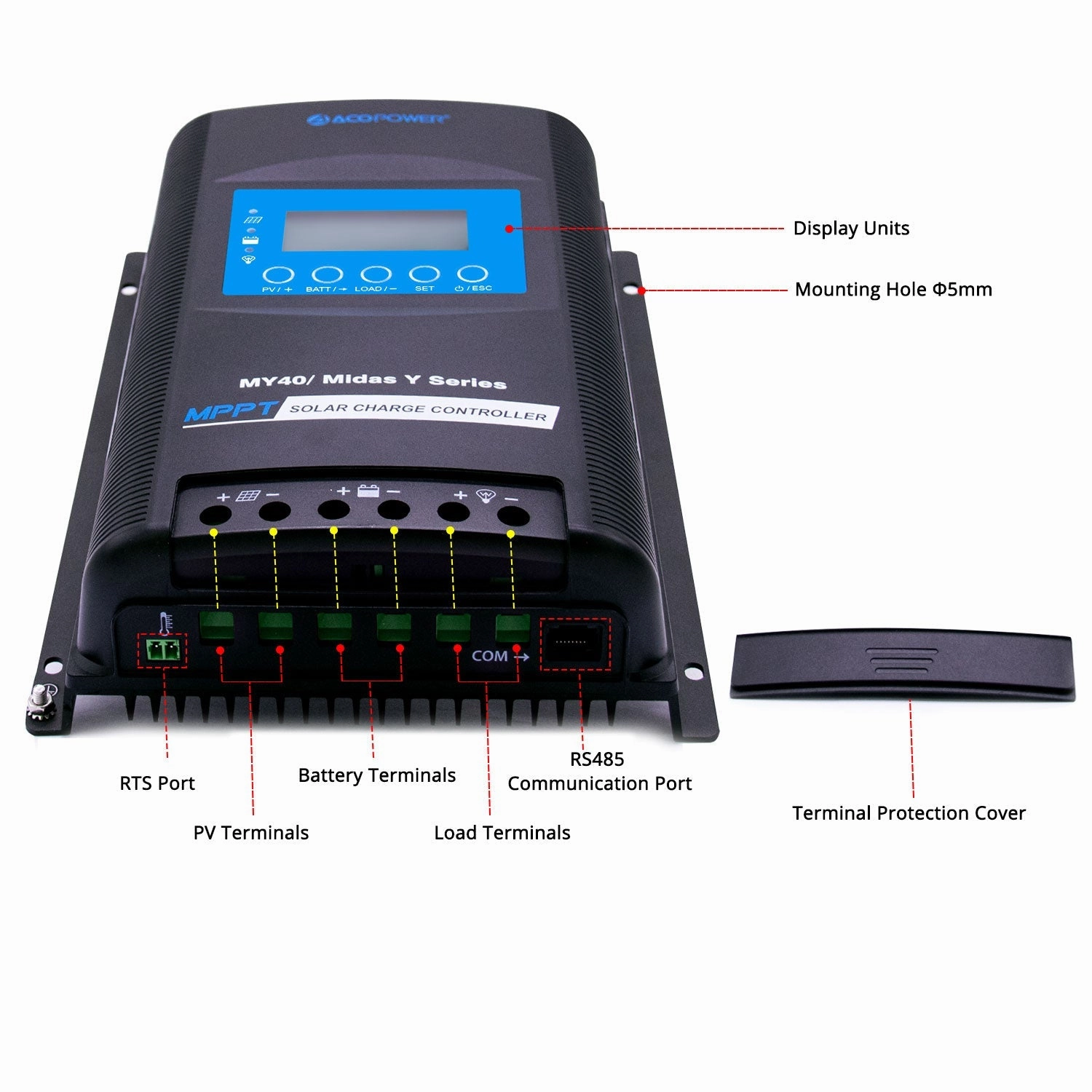

RS485 Interface: 5VDC/200mA(RJ45)
Dimensions: 12.01 x 8.27 x 3.98 in.
Weight: 4.24 pounds
What's in the Box:
1 x Midas 40A MPPT Negative Ground Solar Panel Charge Controller
1 x Temperature Sensor
1 x User Manual
