Name: ACOPOWER 500W 12V Poly Solar RV Kits. 40A MPPT Charge Controller
SKU: 328300

Product Details ＋

ACOPOWER 500W 12V Poly Solar RV Kits. 40A MPPT Charge Controller

This cost-effective and user-friendly kit is designed for straightforward installation. equipped with six100W solar panels. a 40A charge controller. and essential wiring. It's an ideal solution to power your RV. boat. camper. and various outdoor appliances. providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.

ACOPower 100W 12V Polycrystalline Solar Panel

Tailored for home. RV. van life. and various applications. this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles. the panel boasts a durable construction featuring tempered glass with an anti-reflective coating. two layers of EVA film. a TPT backsheet. and an anodized aluminum frame designed to withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box ensures water resistance with an IP65 rating. Equipped with a 3.2-foot. 16 AWG cable with male and female quick connectors. this solar panel is ready to harness renewable energy efficiently.

ACOPower 60A MPPT Solar Charge Controller

Maximize the potential of your solar panels with the ACOPower 60A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12. 24. 36. or 48V batteries. catering to a range of power needs. With a negative-ground configuration. the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types. including flooded. sealed. gel. and li-ion batteries. it offers versatility in energy storage.

The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk. boost. float. and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV. cabin. or off-grid system. the ACOPower 40A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.

Features:

Easy installation
Height Efficiency
MPPT Technology
Green Solar System
Common Negativegrounding design
Warranty
Multiplepackages

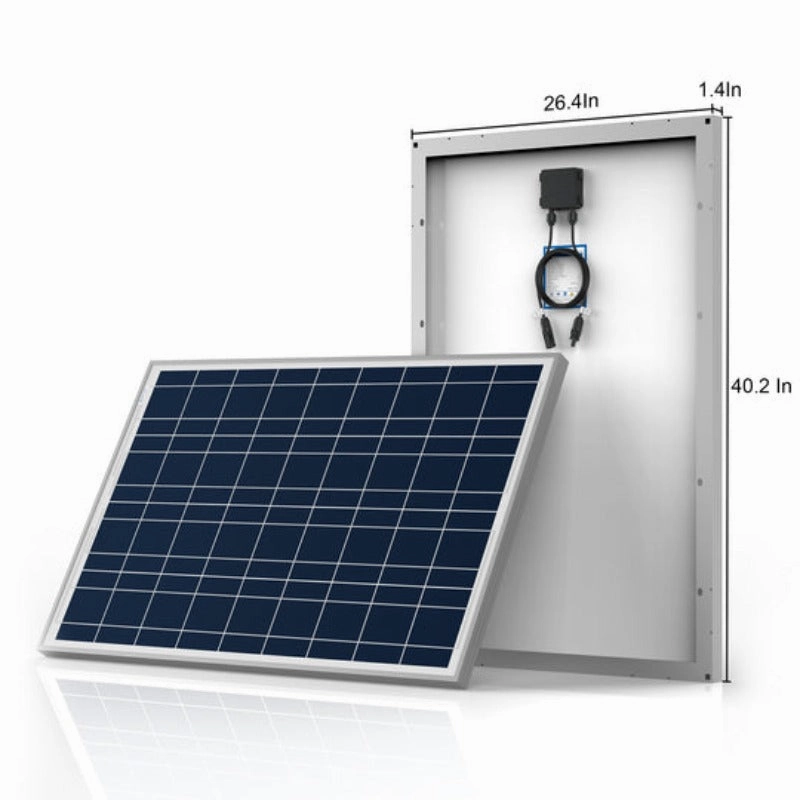

Acopower 100 Watts Poly Solar Panel

Maximum Power at STC (Pmax): 100W
Open-Circuit Voltage (Voc): 22V
Maximum Operating Voltage (Vmp): 17.48V
Short-Circuit Current (Isc): 6.21A
Maximum Operating Current (Imp): 5.72A
Operating Temperature: -40C to 85C
Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
Weight: 9.5kg / 20.6 lbs

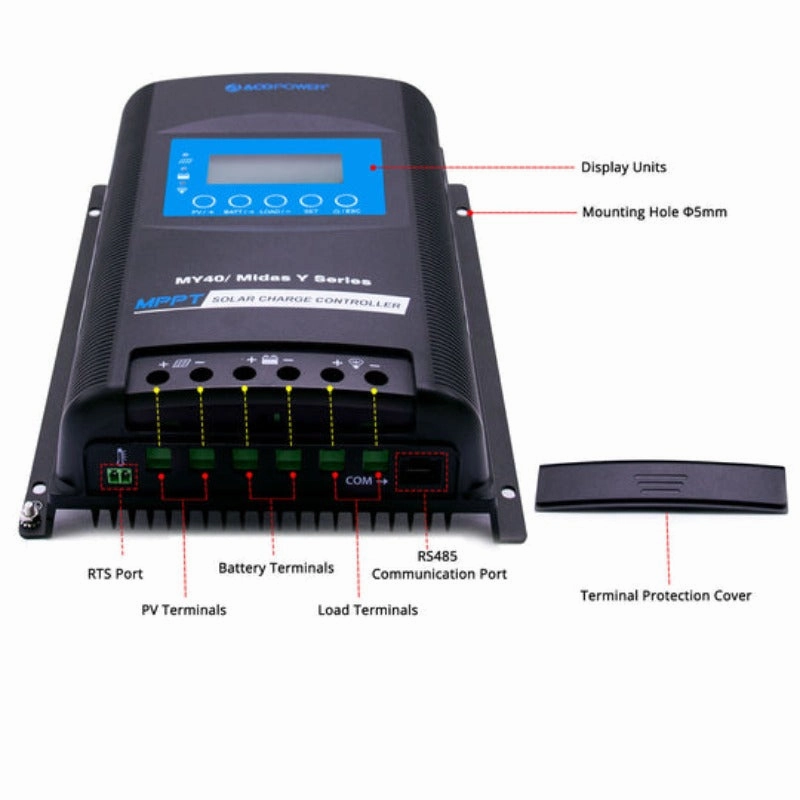

Acopower MIDAS 40 A MPPT Solar Charge Controller

Nominal System Voltage: 12/24VDC
Auto Grounding: Common negative
Rated Charge Current: 40A
Battery Input Voltage Range: 8V32V
Max. PV Open Circuit Voltage: 100V (1) 92V (2)
Rated charge Power: 520W/12V 1040W/24V
MPPT Voltage Range: (Battery Voltage 2V) ~72V
RS485 Interface: 5VDC/200mA(RJ45)
Working temperature: -25 50
Storage temperature: -20 70
Terminals: Up to 6 AWG
Enclosure: IP33

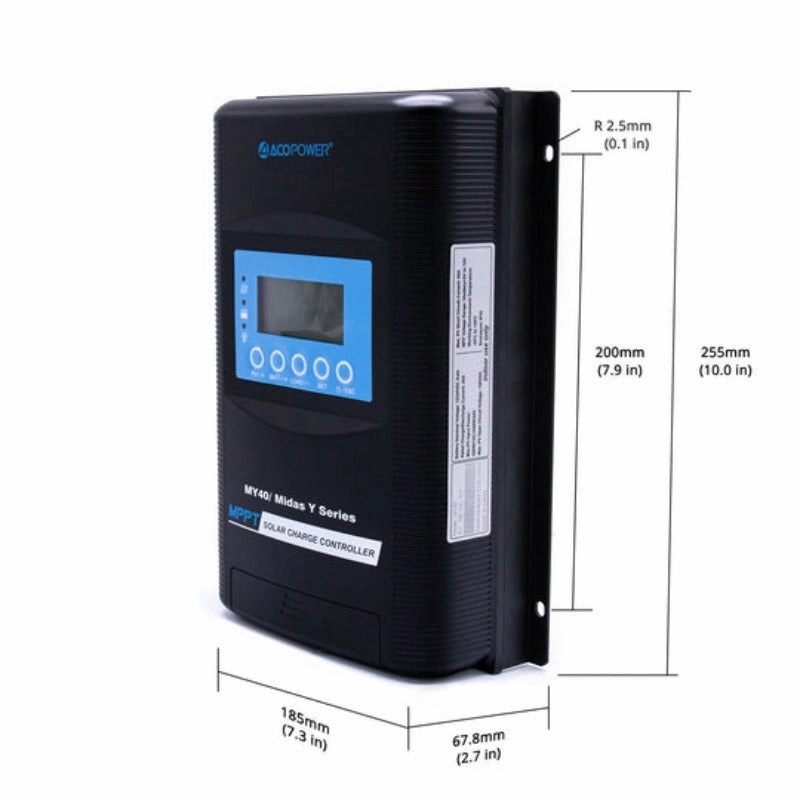

Dimension: 10x7.28x2.67 in / 25518567.8mm
Weight: 3.75lbs / 1.7kg

What's in the Box:

5 x100W Poly Solar Panel
1x 40A MPPT Charge Controller

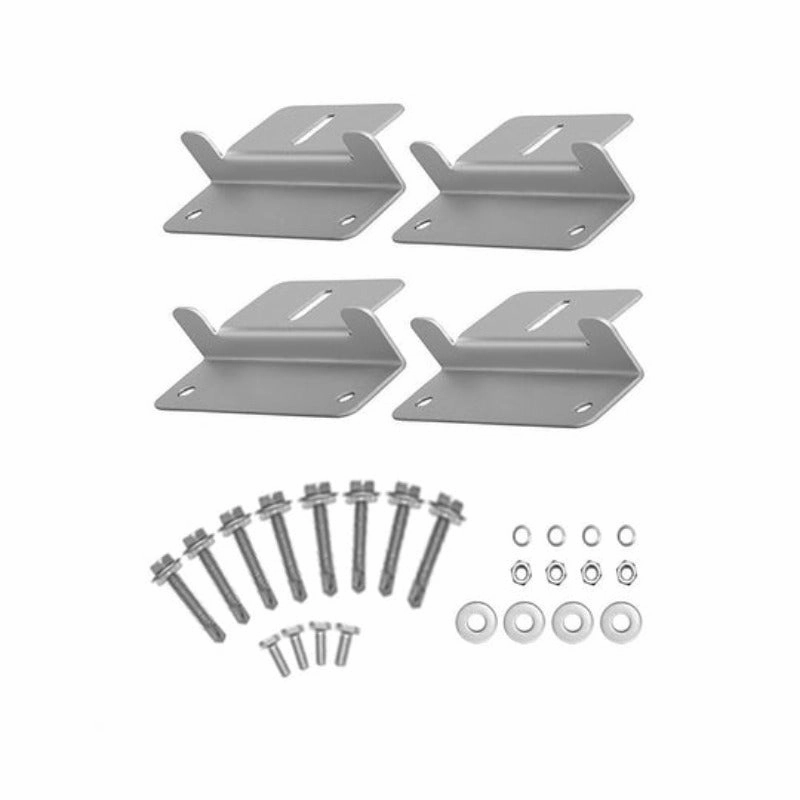

5 xSets Mounting Z Bracket
1x30ft 12AWG PV Cable

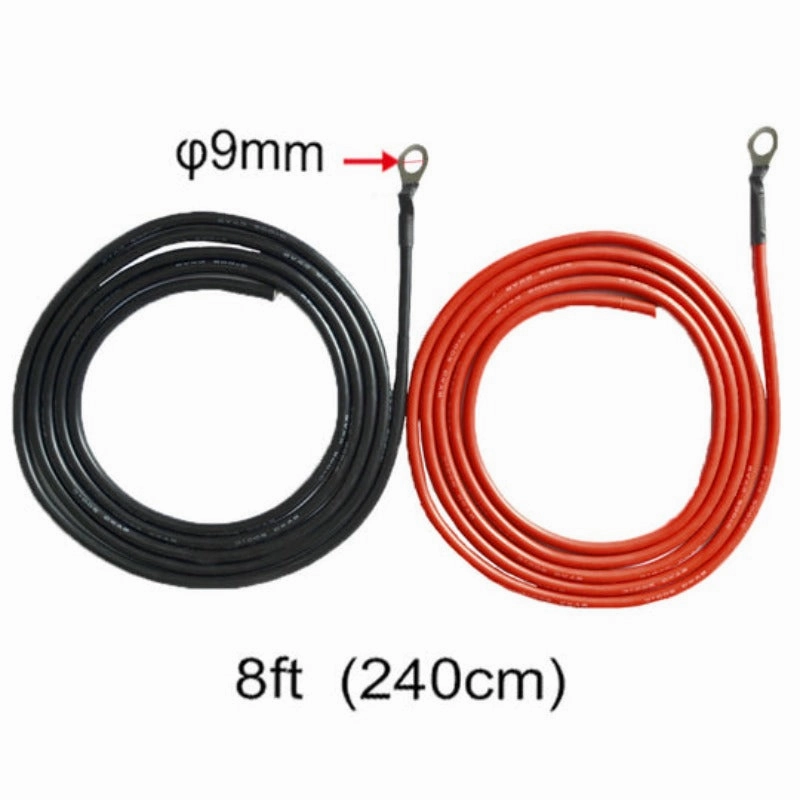

1x 8FT 8AWG Tray Cable
1x Cable Entry Housing

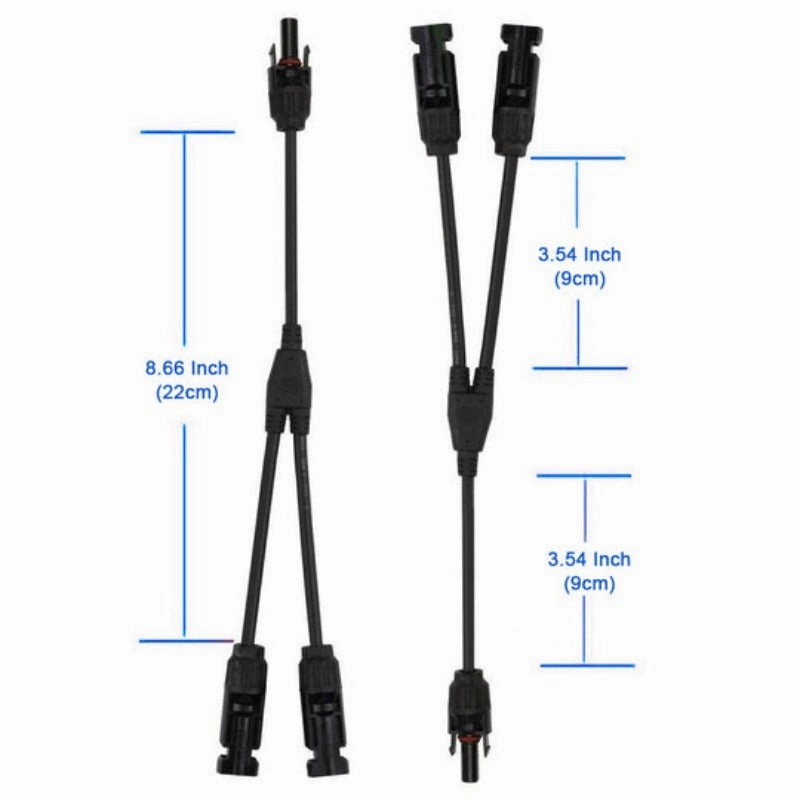

1xPair PV T/Y Connectors

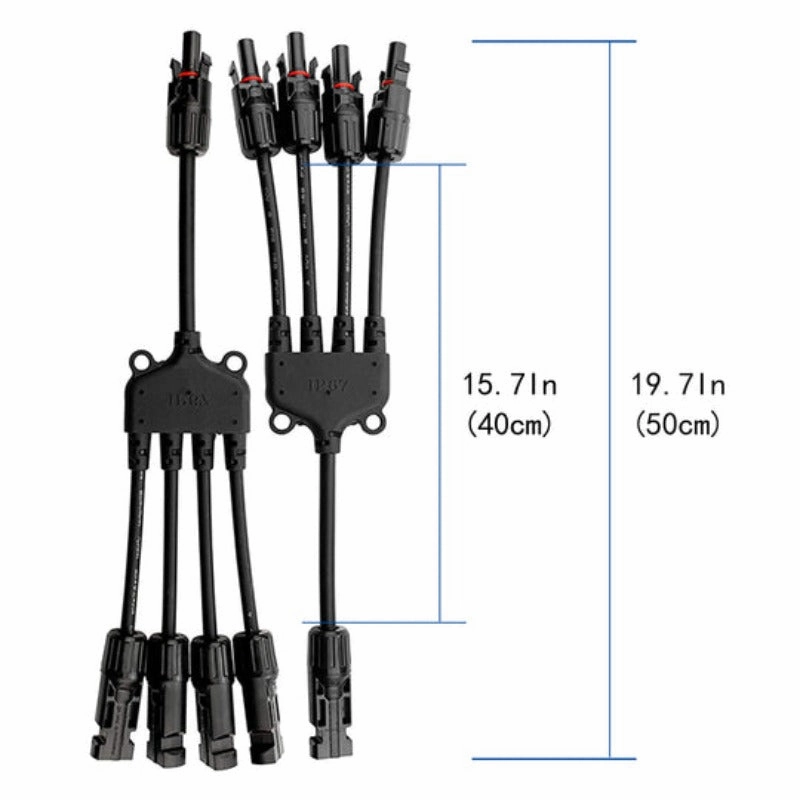

1 xPair 1Y4 Branch Connector
