Acopower 110w flex 200Ah/1.5kW(2x100Ah) Li200Ah F330w
A great choice for off-the-grid power supply. the Acopower 110w flex 200Ah/1.5kW(2x100Ah) Li200Ah F330w is a high-quality and reliable solar power system designed to provide efficient and sustainable energy solutions.
This product is composed of a 110-watt flex solar panel. two 100Ah lithium batteries. and a 330-watt solar generator. The 110-watt flex solar panel is highly flexible and lightweight. making it easy to install on various surfaces such as RVs. boats. cabins. and curved roofs. With its advanced technology. this solar panel maximizes sunlight absorption. converting it into usable electricity efficiently.
The two 100Ah lithium batteries included in this system offer powerful energy storage capabilities. These batteries boast a long lifespan. high energy density. and low self-discharge rate. ensuring a stable and consistent power supply. They are also equipped with advanced safety features to prevent overcharging. over-discharging. and short circuits.
The 330-watt solar generator serves as the control center and power hub of this system. It is equipped with multiple input and output ports. including DC. USB. and AC outlets. allowing for easy connection to various devices and appliances. The generator also features an LCD. providing real-time monitoring of the battery status. solar input. and power output.
Easy to use and well-designed. the Acopower 110w flex 200Ah/1.5kW(2x100Ah) Li200Ah F330w is ideal for those who don't want to fumble with cables and switches!
- Wide application
- 330W Flexible Solar RV kit
- Two 100Ah batteries
- Off-grid 12 volt Lithium battery 12V Flexible Solar Panel system
- 1500 Watt Pure Sine Wave Inverter provides plenty of AC power 120VAV
- Designed for RVs. cabins. homes. boats. fences. security cameras. greenhouse. camper. lawnmower. motorcycle. jet ski. trailer. camper. back-up and remote power use
- Flexible solar panel
- Solar charging 330W will provide about 1584Wh (Watt-hour} or 132Ah (Ampere-Hour) of charge per day (Depends on sunlight availability)
- 2560Wh of 2pcs 100Ah Lithium batteries
- 30A MPPT solar charge controller
- Double protection against power surge
- Easy-to-read LCD display
- Built-in BMS(battery management system)
- DIY Kit
SPECIFICATIONS:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

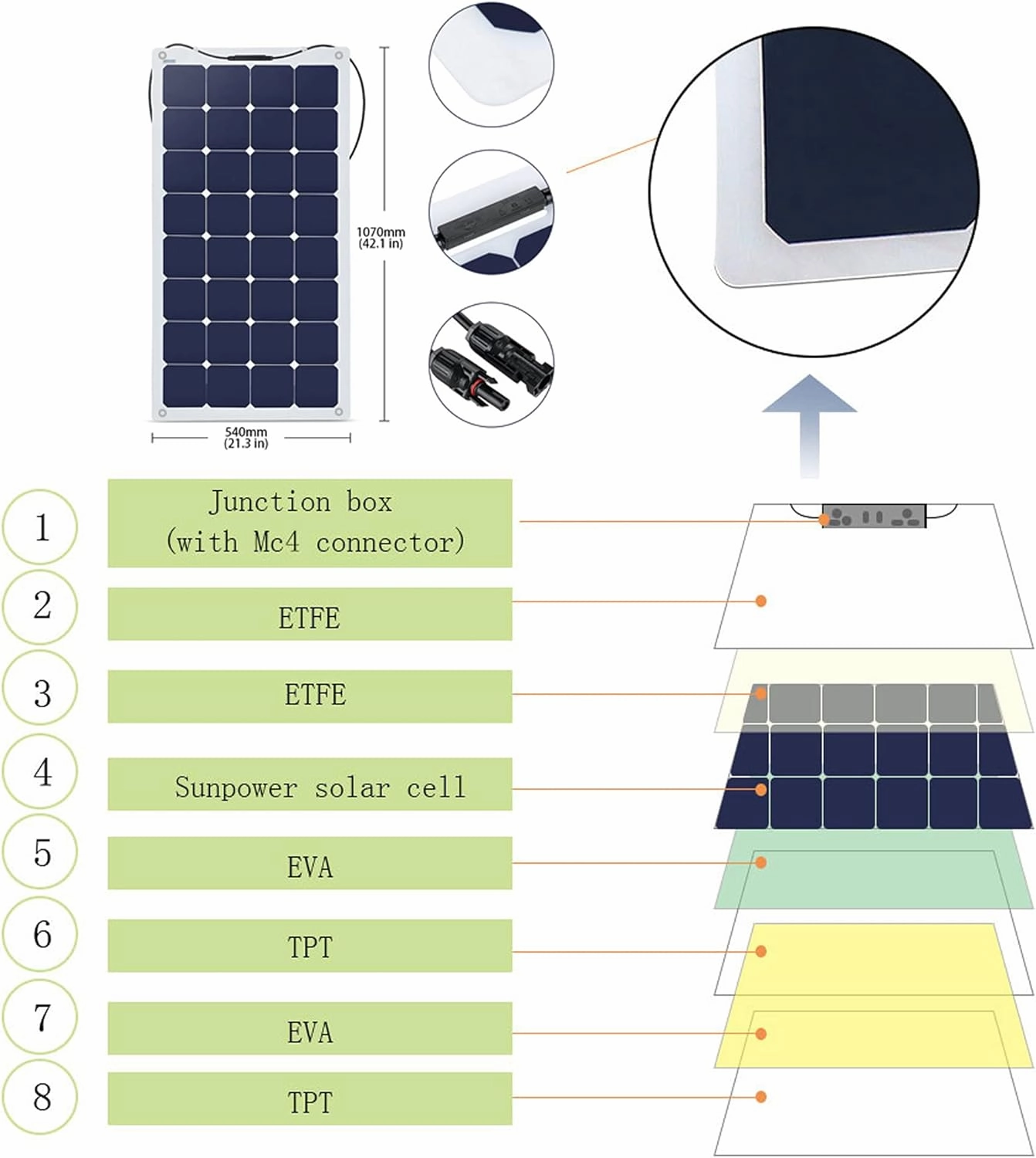

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage (Voc):20.8V
Max Power Voltage (Vmp):17.6V
Short Circuit Current (ISC):6.87A
Max Power Current (Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

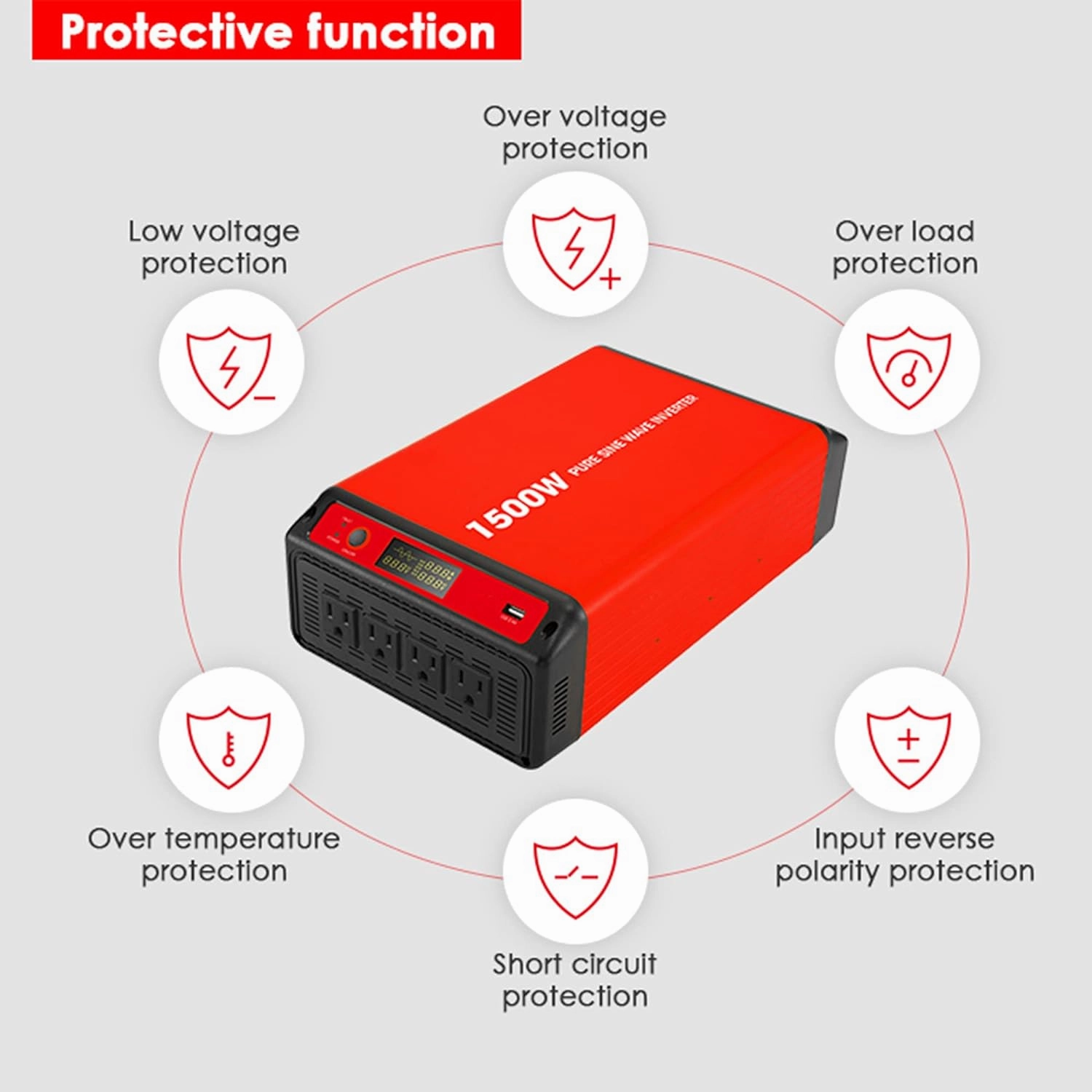

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection. Overvoltage protection. Overload
Protection. Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94 1.34 (D) x 7.52(W) x 3.86(H) inch

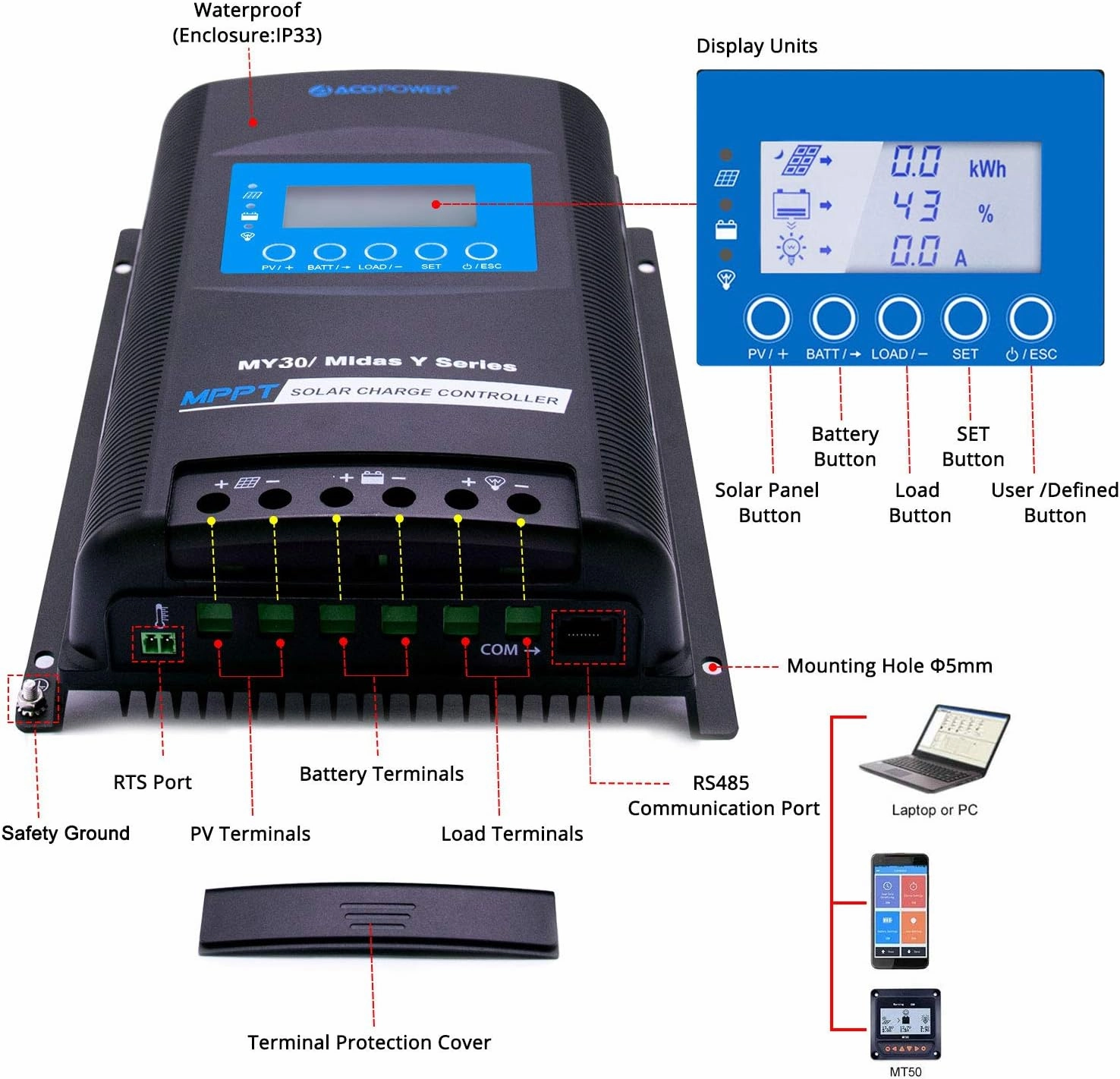

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W. 24V/780W
Compatible with Various Deep Cycle Battery options: Sealed. Gel. Flooded. and Lithium-ion. LiFePO4 Multiple Load Control Method.

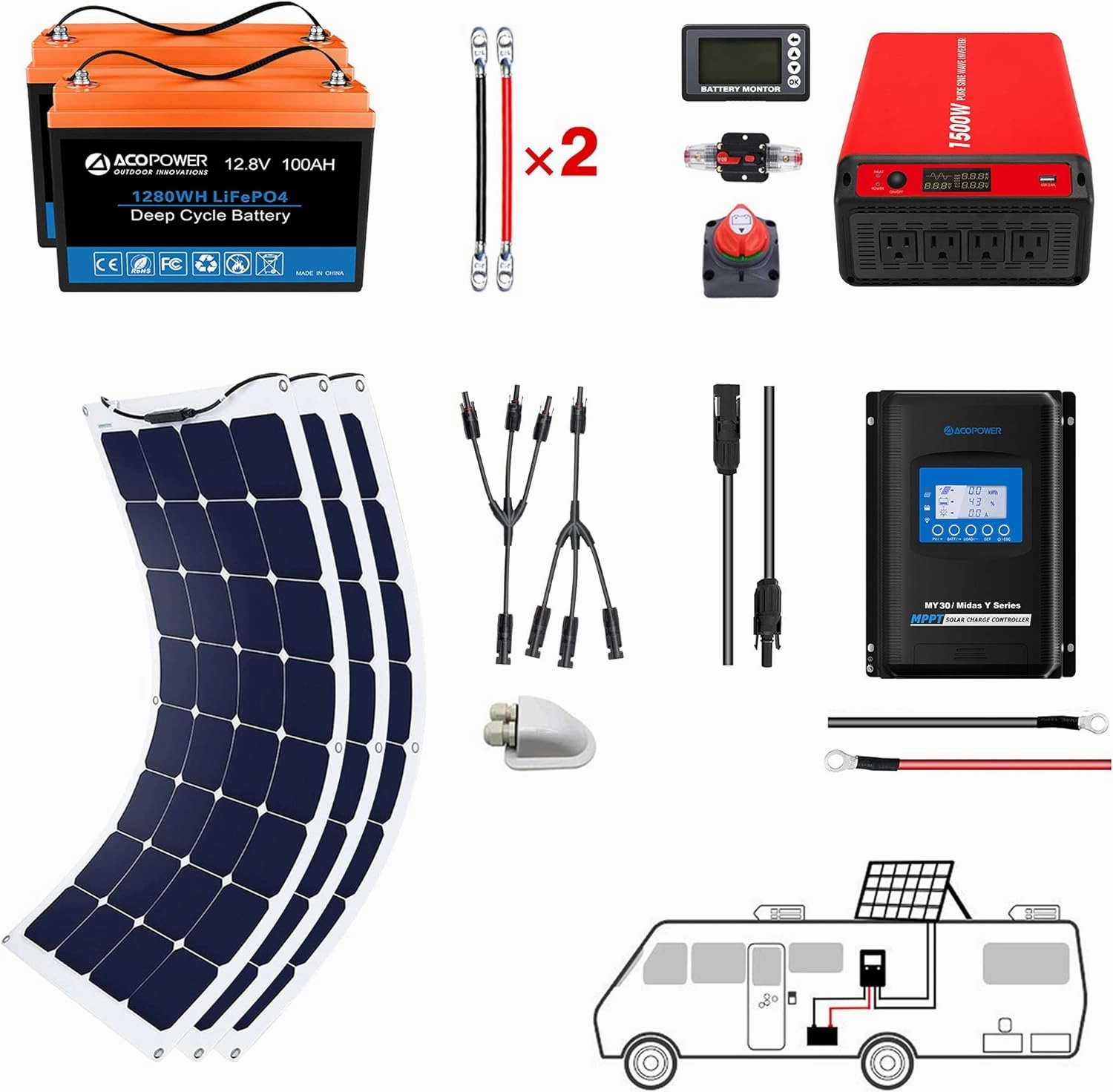

WHAT'S IN THE BOX:
2 x 100Ah LiFePO4 Battery
3 x 110W Solar Panel
1 x 1500W Inverter
1 x 30A MPPT Charge Controller

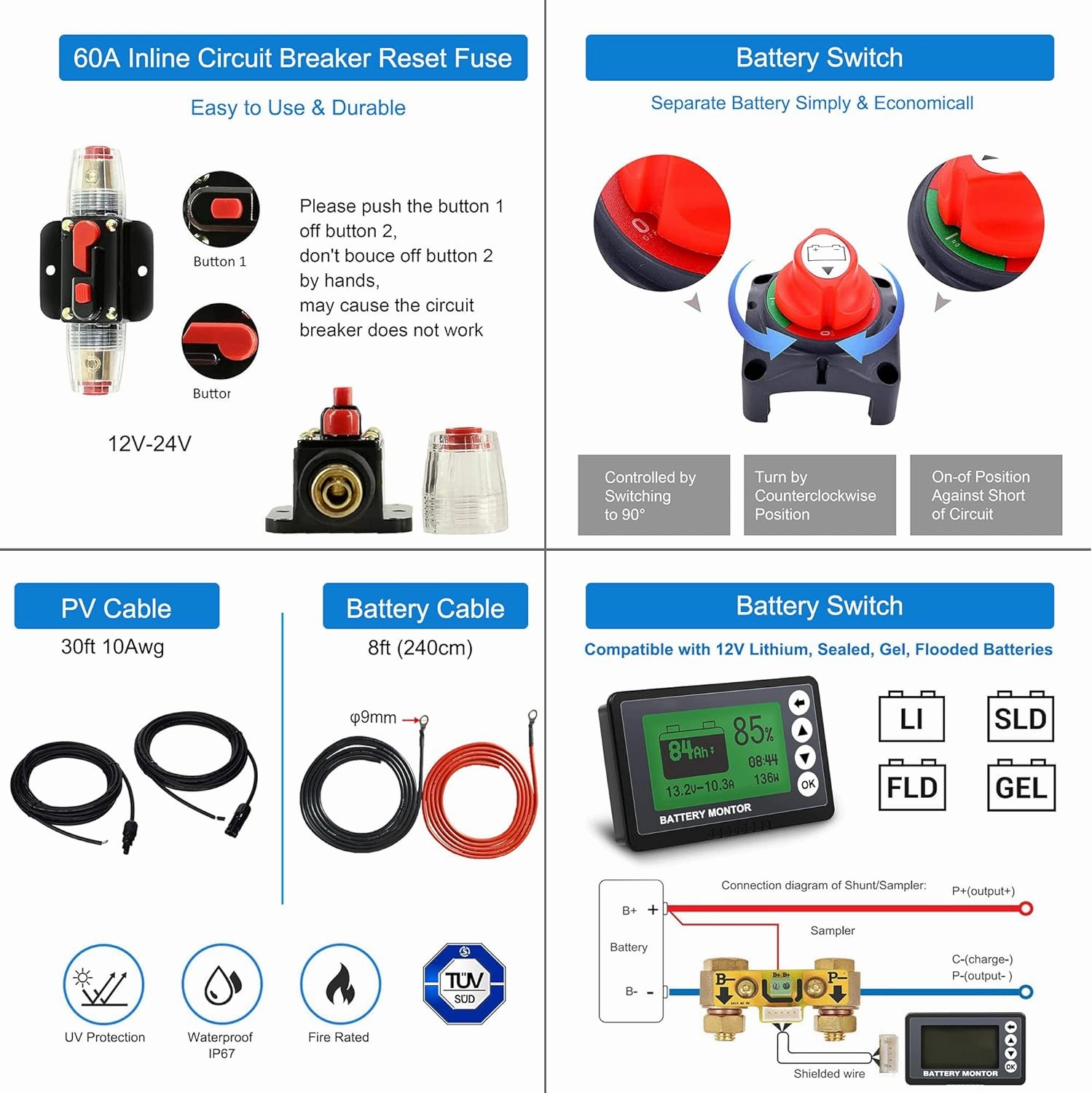

1 x Battery Monitor
1 x Battery Switch
1 x 60A Fuse
1 Pair x 30ft 10AWG PV Cable
2 Pair x 1Ft 4AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1PC x Cable Entry Housing
1 Pair x Y Branch Solar Panel Connectors
