Product Details
＋
Acopower 100w mono kit All Black 200w 20A PWM
Taking a trip in your RV can create lifetime memories. Don't let traditional gas powered generators or power hookups slow you down. ACOPower 200Watt 20A Mono Solar RV Kit silently recharges your batteries so you can enjoy the great outdoors without the extra noise. Solar panels also allow you to run limited low watt electrical equipment without a power hookup.

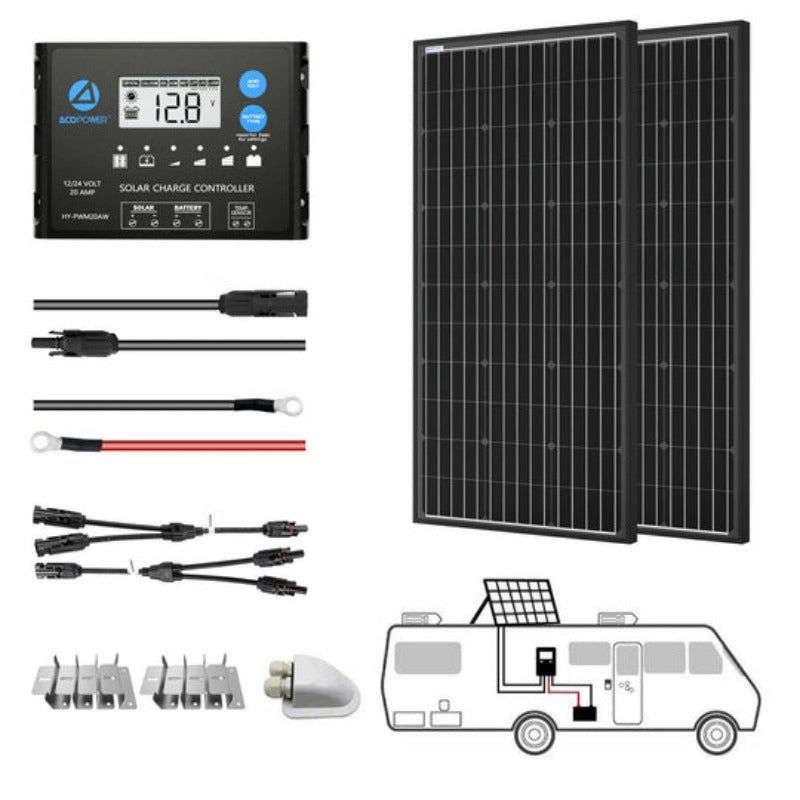

Solar Starter Kit
The 200W solar panel kit is an all-inclusive package. making it an ideal choice for beginners and customers seeking convenience. It includes 2pcs 100W poly solar panels. a 30A charge controller. 2 sets of mounting z brackets. 30ft 12AWG PV cable. 8ft 8AWG tray cable. cable entry housing. and a 1Y2 branch connector.
Ideal Choice for Permanent Installation
The advanced laminated technology and durable ETFE material of the 100W polycrystalline solar panel support high light transmittance. are scratch-resistant. and easy to clean. The anti-reflection tempered glass and corrosion-resistant aluminum frame enhance safety and impact resistance. allowing each panel to withstand high wind (2400Pa) and snow loads (5400Pa). Perfect for permanent or semi-permanent installations.
Monitor & Protect Devices
The 20A MPPT utilizes maximum power point tracking technology and automatically adjusts charging profiles based on ambient temperatures. This ensures optimal charging in any condition and protects against over-charge. over-discharge. overload. and short circuit. User programmable for battery types. load control. etc.. via PC software or the remote meter MT-50.
Wide Application & Compatible

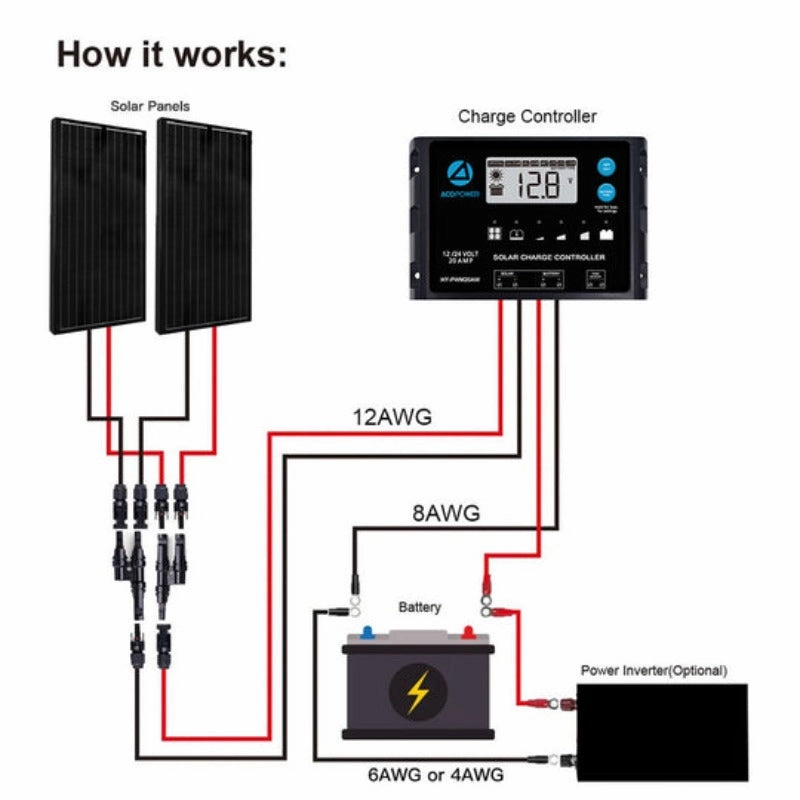

The solar panel kit is designed for various applications such as RVs. cabins. rooftops. caravans. sheds. greenhouses. boats. and remote power use. It can be connected in parallel for 12V battery charging or in series for 24V battery charging. Compatible with lead-acid. AGM. gel. and lithium batteries. The 30A MPPT of the 200 Watts RV kit allows expansion to 780W in series and 390W in parallel.
Features:
- Easy Installation
- Hight Efficiency
- Sturdy
- 20A PWM Charge Controller
- Reliable Performance
- Green Solar System
Specifications:
Acopwoer 100 Watts All Black Mono Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.14A
- Maximum Operating Current (Imp): 5.71A
- Operating Temperature: -40C to 85C

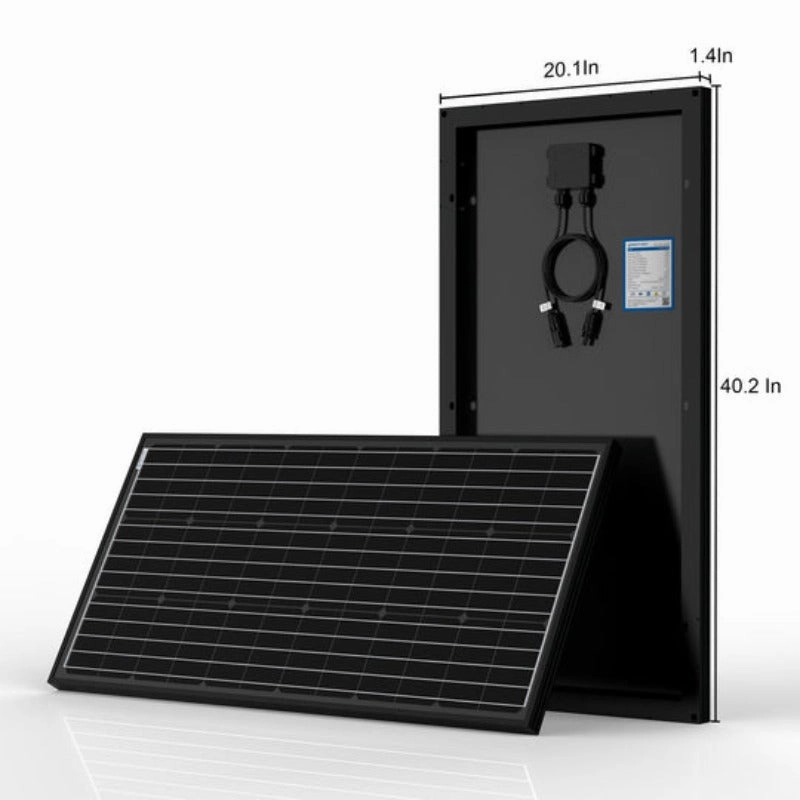

- Dimension: 1130x510x35mm / 44.5x20.1x1.4 in
- Weight: 9.5kg / 20.9 lbs

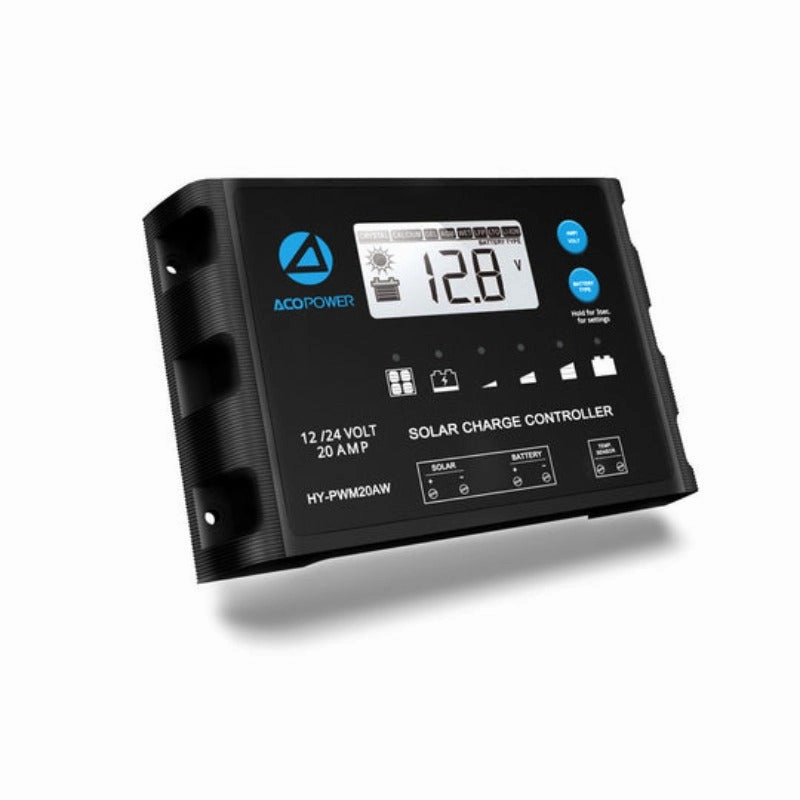

Acopwer 20 A PWM Solar Charge Controller
- Nominal system voltage: 12/24VDC Auto
- Rated charge current: 20A
- Max. PV Input Voltage: 50V
- Battery Start Charging Voltage: 3V
- Temperature Compensation Coefficient: -24mV/C
- Operating Temperature: -40F to 140F
- Grounding: Common negative
- Storage Temperature: -40F to 185F

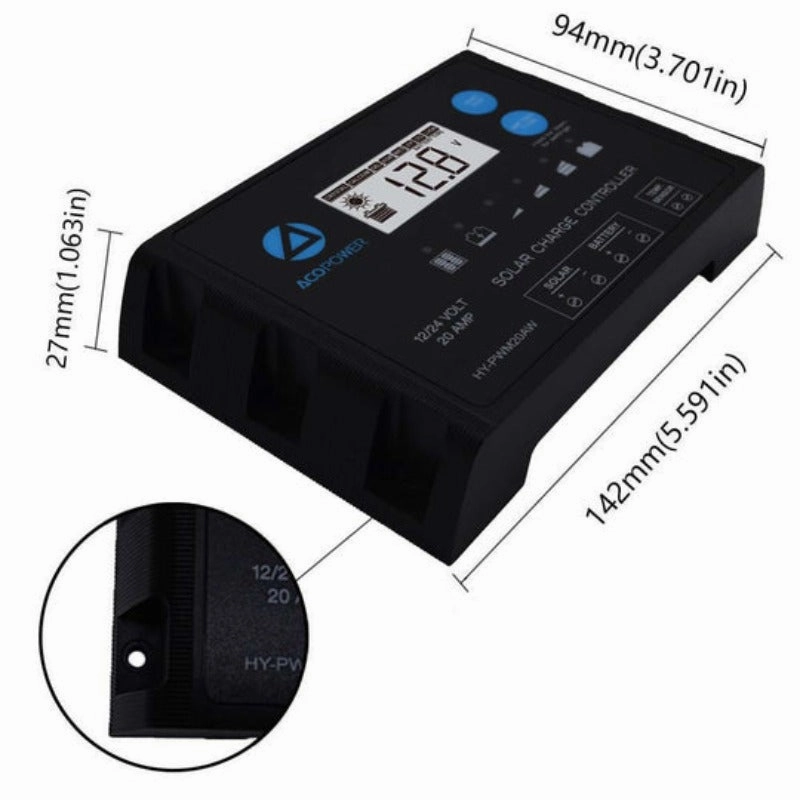

- Dimensions: 5.59x 3.7x 1.06 inches
- Enclosure: IP65
What's in the Box:
- 2x Mono Solar Panel
- 1x20A PWMCharge Controller
- 1xSets Mounting Z Bracket
- 1x30ft 12AWG PV Cable

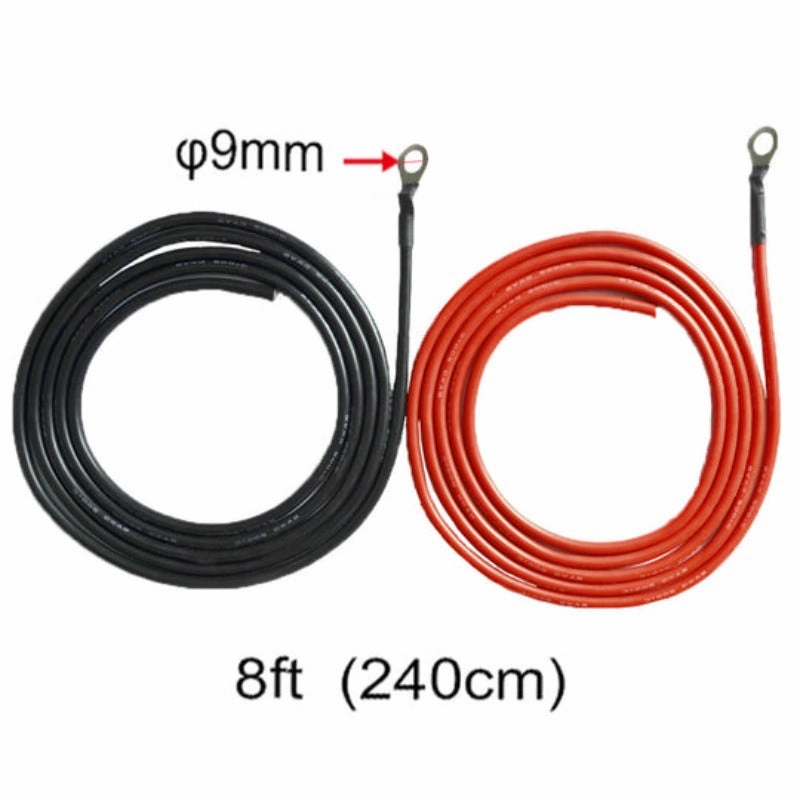

- 1x8FT 8AWG Tray Cable
- 1xCable Entry Housing

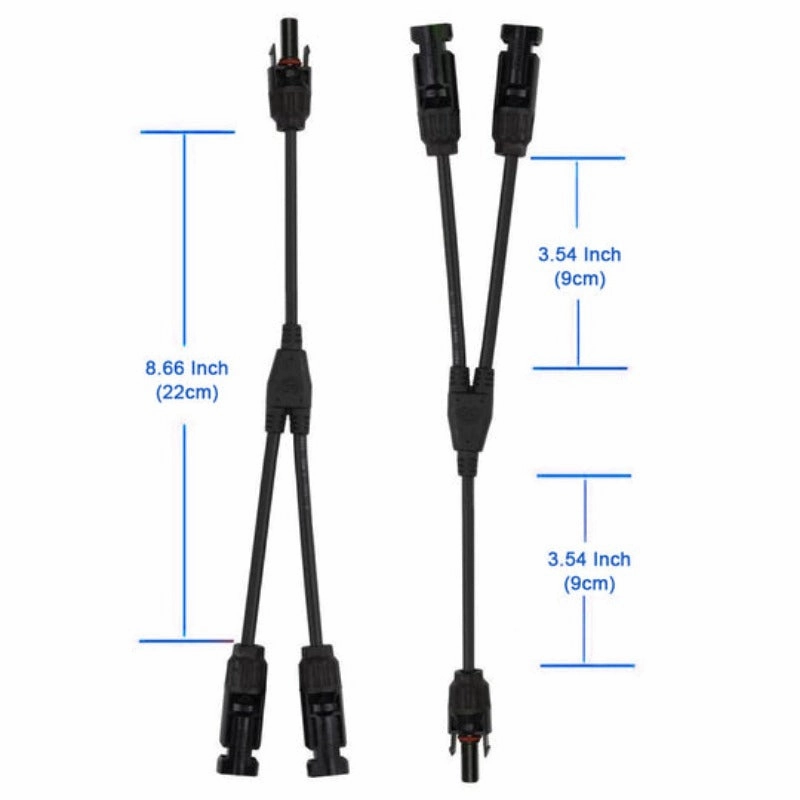

- 1xPair T/Y Connector
