ACOPOWER 100W 12V Poly Solar RV Kits. 20A PWM Charge Controller
This cost-effective and user-friendly kit is designed for straightforward installation. equipped with1 100W solar panels. a 20A charge controller. and essential wiring. It's an ideal solution to power your RV. boat. camper. and various outdoor appliances. providing a reliable energy source for remote structures. The kit also includes mounting accessories for added convenience. Experience the freedom of sustainable energy on your adventures.
ACOPower 100W 12V Polycrystalline Solar Panel
ACOPower 60A MPPT Solar Charge Controller
Maximize the potential of your solar panels with the ACOPower 20A MPPT Solar Charge Controller. This advanced controller allows you to safely and efficiently recharge 12. 24. 36. or 48V batteries. catering to a range of power needs. With a negative-ground configuration. the controller achieves an impressive tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types. including flooded. sealed. gel. and li-ion batteries. it offers versatility in energy storage.
The user-friendly design of this plug-and-play controller simplifies the solar charging process. It automatically detects the solar panel voltage and employs bulk. boost. float. and equalization charging modes to optimize the battery charging cycle. Whether you are powering your RV. cabin. or off-grid system. the ACOPower 20A MPPT Solar Charge Controller ensures a seamless and effective solar energy utilization experience.
Features:
- Easy installation
- Height Efficiency
- MPPT Technology
- Green Solar System
- Common Negativegrounding design
- Warranty
- Multiplepackages
Specifications:
100W Poly Solar Panel
Peak Power (Pmax):100W
Peak Circuit Voltage(Voc):22V
Max Power Voltage(Vmp):17.48V
Short Circuit Current(Isc): 6.21A
Max Power Current(Imp):5.72A
Wind resistance: 2400pa
Weight: 17.6 lb
Dimension:40.2*26.4*1.4 inches (1020x670x35mm)
Application Class: Class A
20A PWM Charge Controller
Nominal Voltage: 12 V/ 24V DC
Rated Charge Current: 20A
Max. PV Input Voltage: 50V
Battery Start Charging Voltage: 3V
Temperature Compensation Coefficient: -24mV/C
Operating Temperature: -40F to 140F
Storage Temperature: -40F to 185F
IP Enclosure Grade: IP65
Dimensions: 5.59x 3.7x 1.06 inches

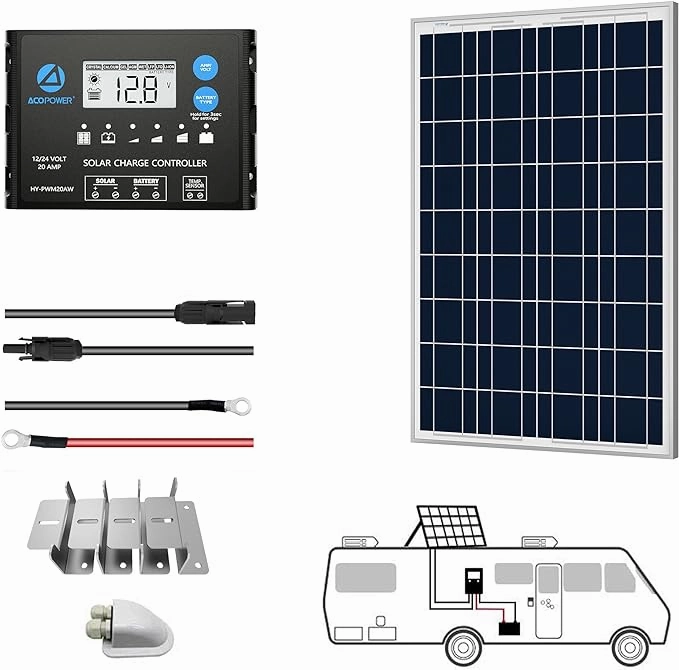

What's in the Box:
- 1x100W Polycrystalline Solar Panel
- 1x 20A PWM Charge Controller
- 2xSets Mounting Z Bracket
- 1x 30ft 12AWG PV Cable
- 1x 8FT 8AWG Tray Cable
- 1x Cable Entry Housing
- 1xPair PV T/Y Connectors
